Technical Specifications

Description

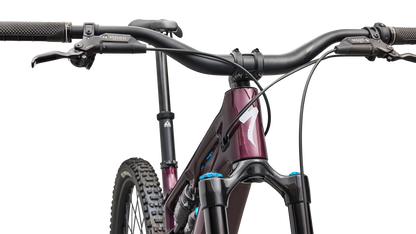

With its unmatched combination of lightweight, ride quality, and supernatural amplification, the Levo SL delivers the best ride, amplified. Compare it to anything out there, with a motor or without, and we think you’ll agree—Levo SL is The Ultimate Trail Bike. IT’S ALL ABOUT THE RIDE: When everything works just right, a bike disappears beneath you. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to flick through a rock garden. Its dialed geometry, kinematics, and shock tuning work together as one to deliver control, confidence and precision beyond compare. THE MAGIC CARPET RIDE: GENIE Our patent-pending GENIE technology is the ultimate air spring. It combines the control-enhancing linear spring rate of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. GEOMETRY OF CONTROL: The Levo SL geometry delivers an exceptional ride right out of the box, combining big-bike capability with a nimble feel in tight sections. A refined reach centers you on the bike for optimal traction and cornering, while the low bottom bracket, slack head angle, and optimized fork offset ensure stability on rough terrain. Riders who want to can easily personalize the six-way adjustable geometry to match their style and terrain. MIXED WHEEL: A 29” front wheel helps ensure stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a short chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel. TURBO OPERATING SYSTEM: Our seamlessly integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun. SPECIALIZED SL 1.2 MOTOR: Meet the Specialized SL 1.2 motor: it delivers 43% more torque (50Nm) and 33% more power (320 Watts) than its predecessor. Thanks to its unmatched efficiency, nothing beats its range-to-weight ratio. Paired with a seamless 320Wh battery pack, the Levo SL ensures supernatural amplification for up to 5 hours in Eco Mode. Extend your ride with our 160Wh Range Extender (sold separately), fitting snugly into your bottle cage for an extra 50% range. IT’S ALL CONNECTED: MasterMind TCU, our advanced e-bike control unit, seamlessly connects with Turbo OS and the Specialized App. Adjust power levels with MicroTune. The Levo SL integrates fully with the Specialized App, offering personalized motor settings and advanced security features like Smart Control and Turbo System Lock. Traverse Alloy Wheels - The strongest, best riding alloy wheelset on the mountain

GENIE

FOX FLOAT Performance Elite Shock - Specialized GENIE air spring technology inside, Ride Dynamics Tuned

FOX 36 Performance Elite fork - Smooth and tunable X2 dampers for gravity-focused riding

SRAM Maven Silver - High-powered brakes with Centerline rotor

SRAM GX Eagle Transmission - Wide range and high-performance wireless shifting

PNW Loam Dropper - Tool-less travel adjustments in a short, lightweight package







Frameset

Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels. Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Seat Binder Alloy, 38.6mm

SWAT SWAT CC steerer tube integrated tool with chain tool and link

Suspension

Fork FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset

Cockpit

Seat Post PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm

Saddle Specialized Bridge Comp with Mimic

Stem Alloy Trail Stem, 35mm bar bore

GripsDeity Lockjaw Grips

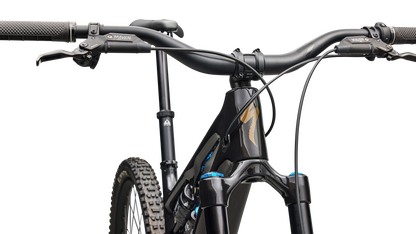

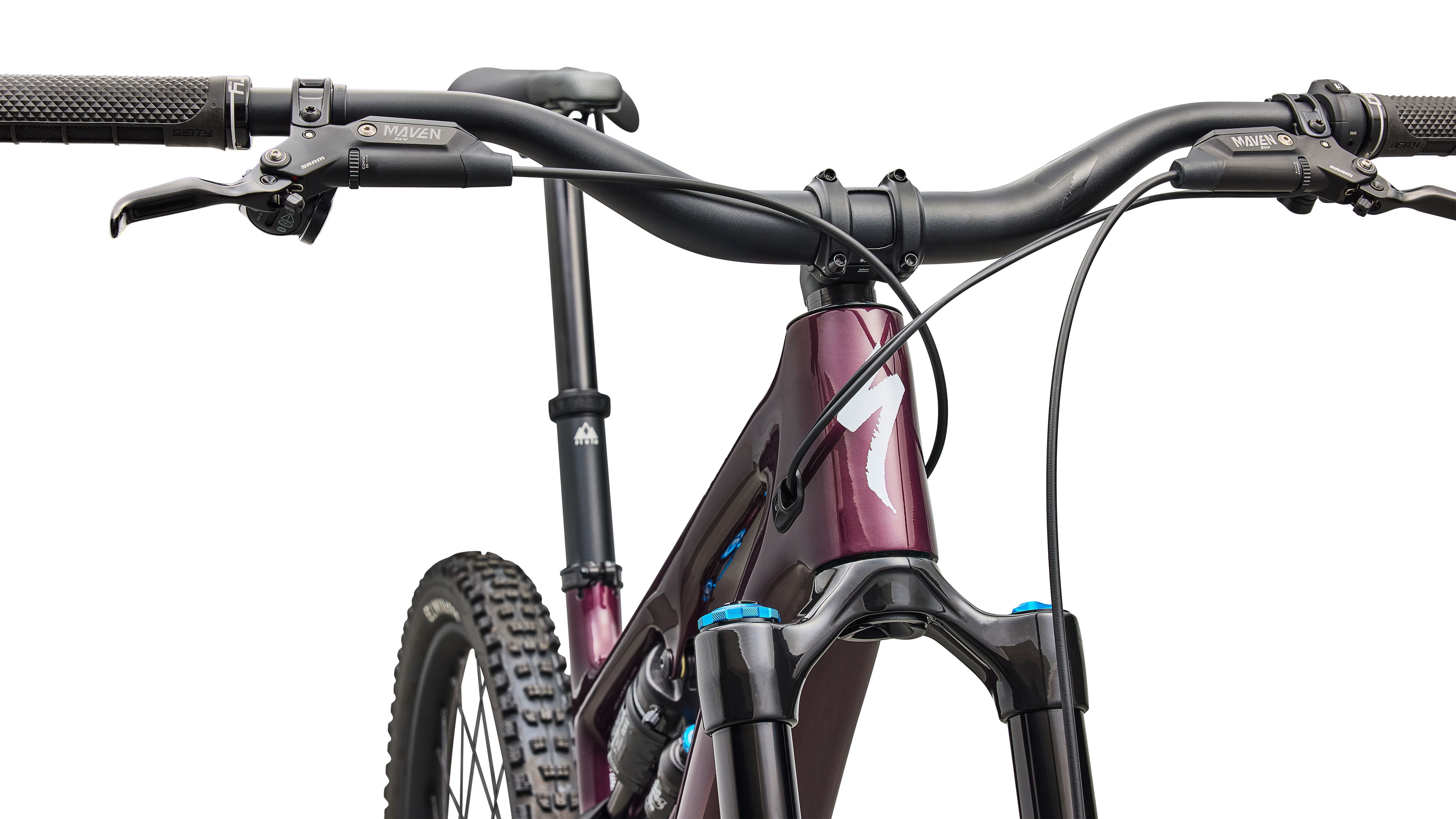

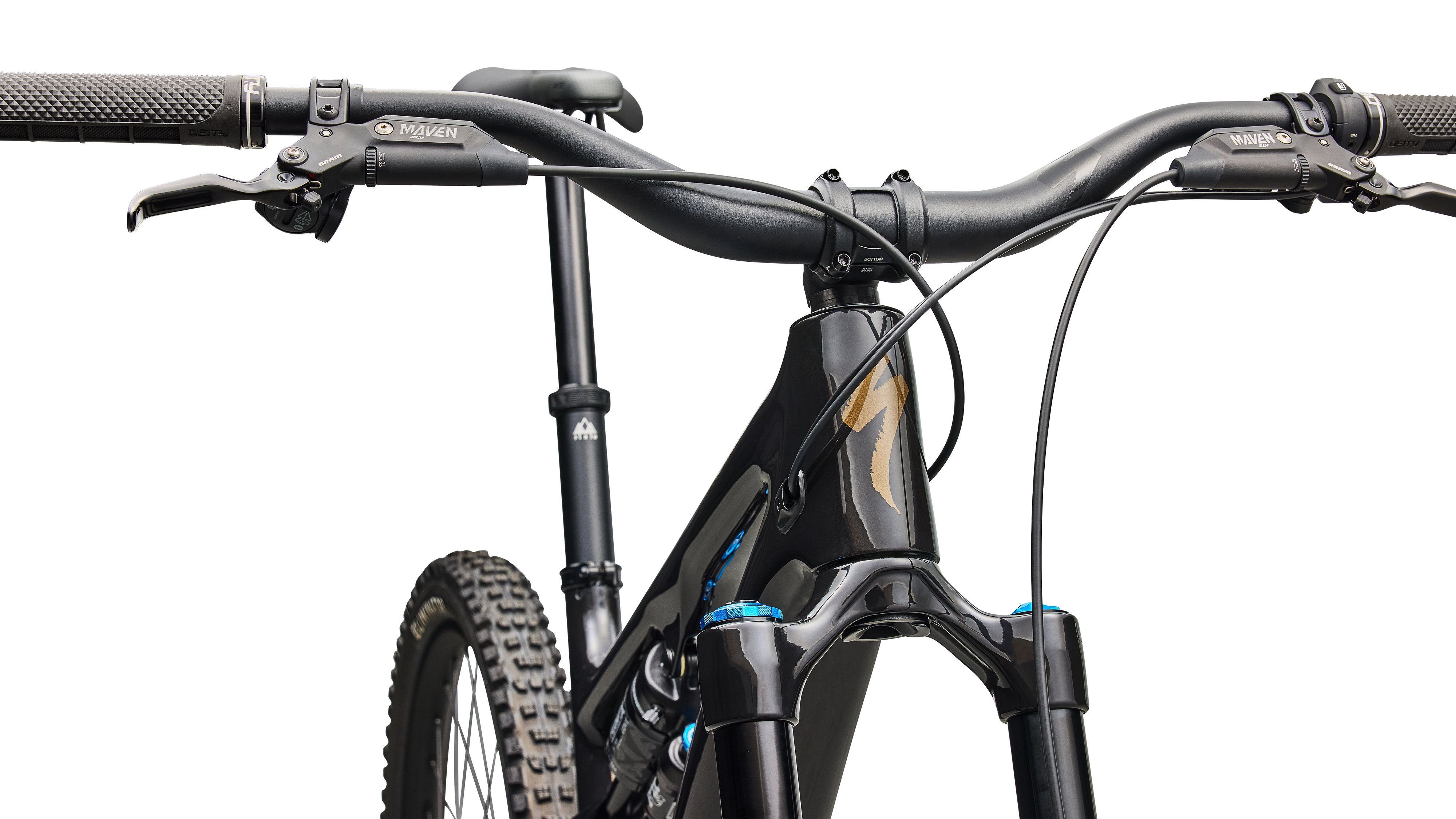

Handlebars Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise

Brakes

Front Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc

Rear Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc

Drivetrain

Shift Levers SRAM AXS POD ULTIMATE with DISCRETE CLAMP

Rear Derailleur SRAM GX Eagle AXS Transmission

Cassette SRAM XG-1275 T-Type 12-Speed 10-52

Crankset SRAM Alloy Crankset, 165mm, Dub interface

Chain SRAM GX Eagle Transmission 12-Speed Flattop Chain

Chain Ring SRAM T-type ring, 32t, alloy

eBike

Battery Specialized SL1-320, fully integrated, 320Wh

Charger Custom charger, 48V System w/ SL system charger plug

Motor Specialized SL 1.2 Custom Rx Trail Tuned Motor

UI Remote Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Wiring Harness Custom Specialized wiring harness

Wheels & Tyres

Front Wheel Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes

Rear Wheel Roval Traverse HD alloy 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 32h, Sapim Force Spokes

Front Tire Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4

Rear Tire Eliminator, GRID GRAVITY casing, Gripton T7/T9 compound, 27.5X2.4

Tubes Standard, Presta Valve

Accessories
