Technical Specifications

Description

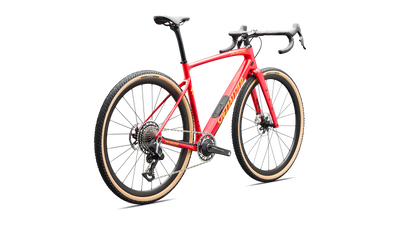

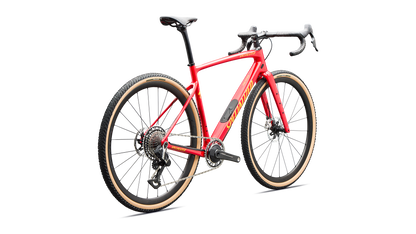

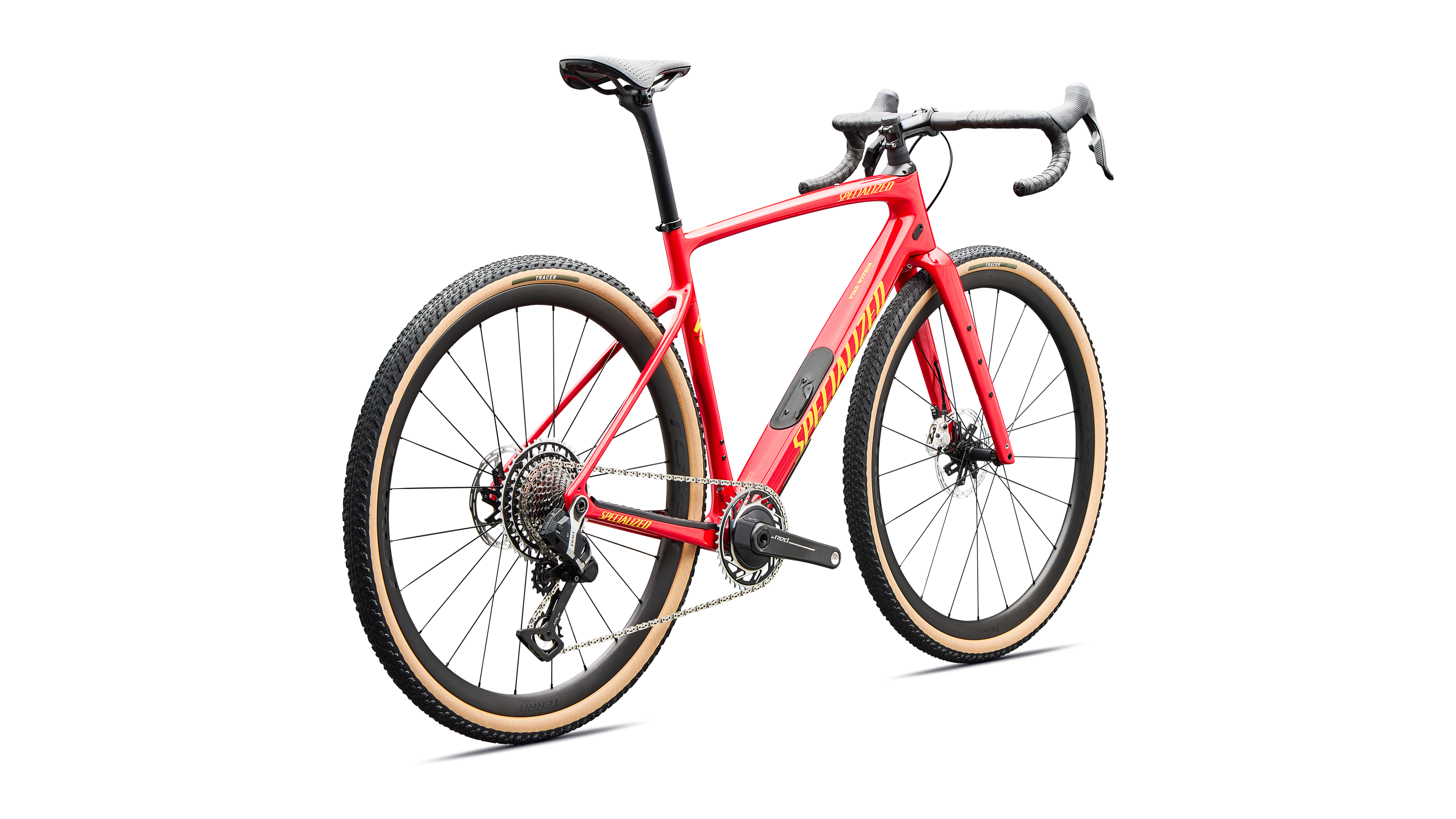

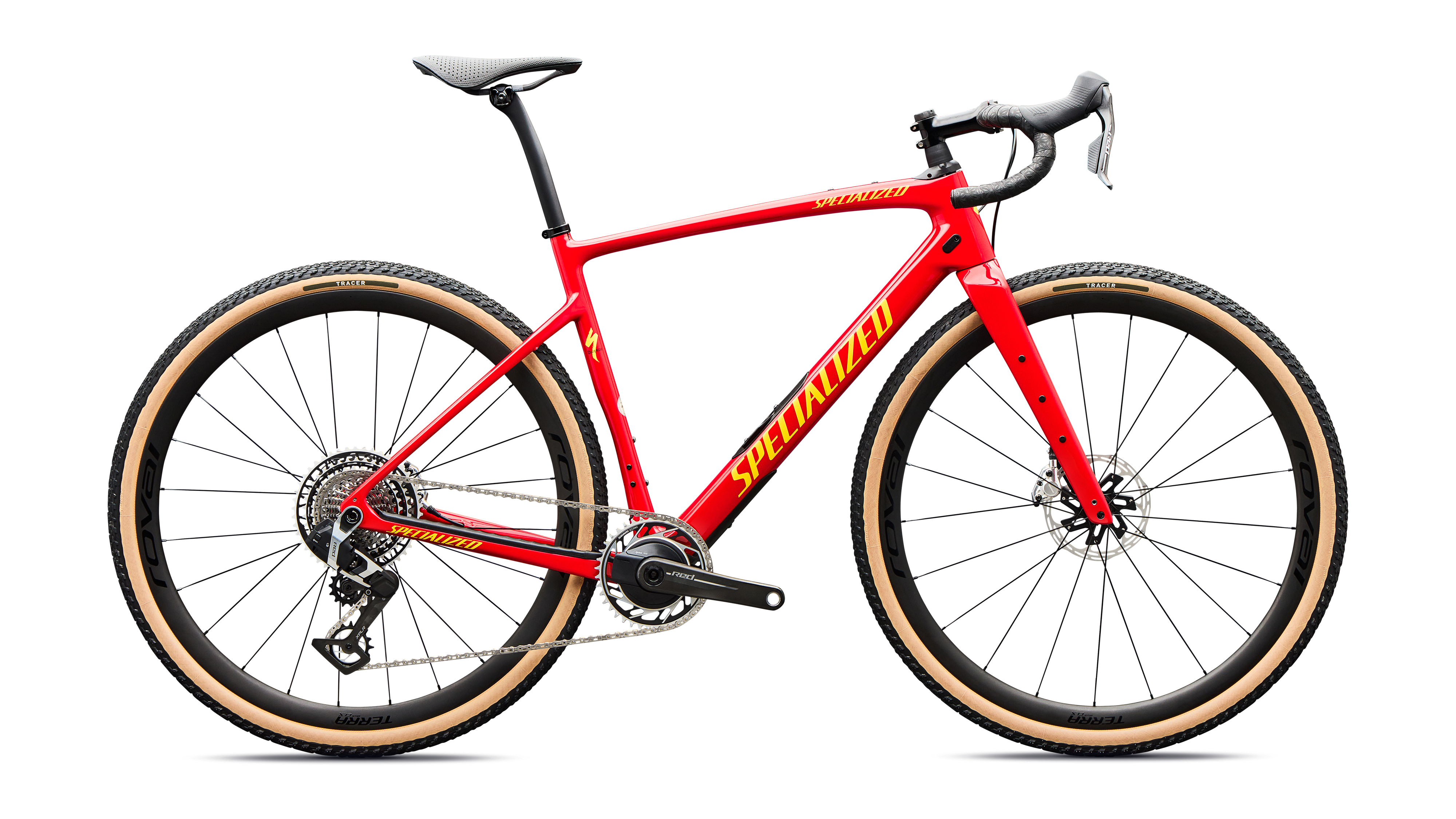

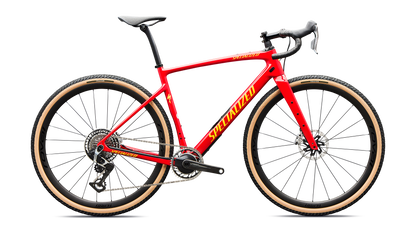

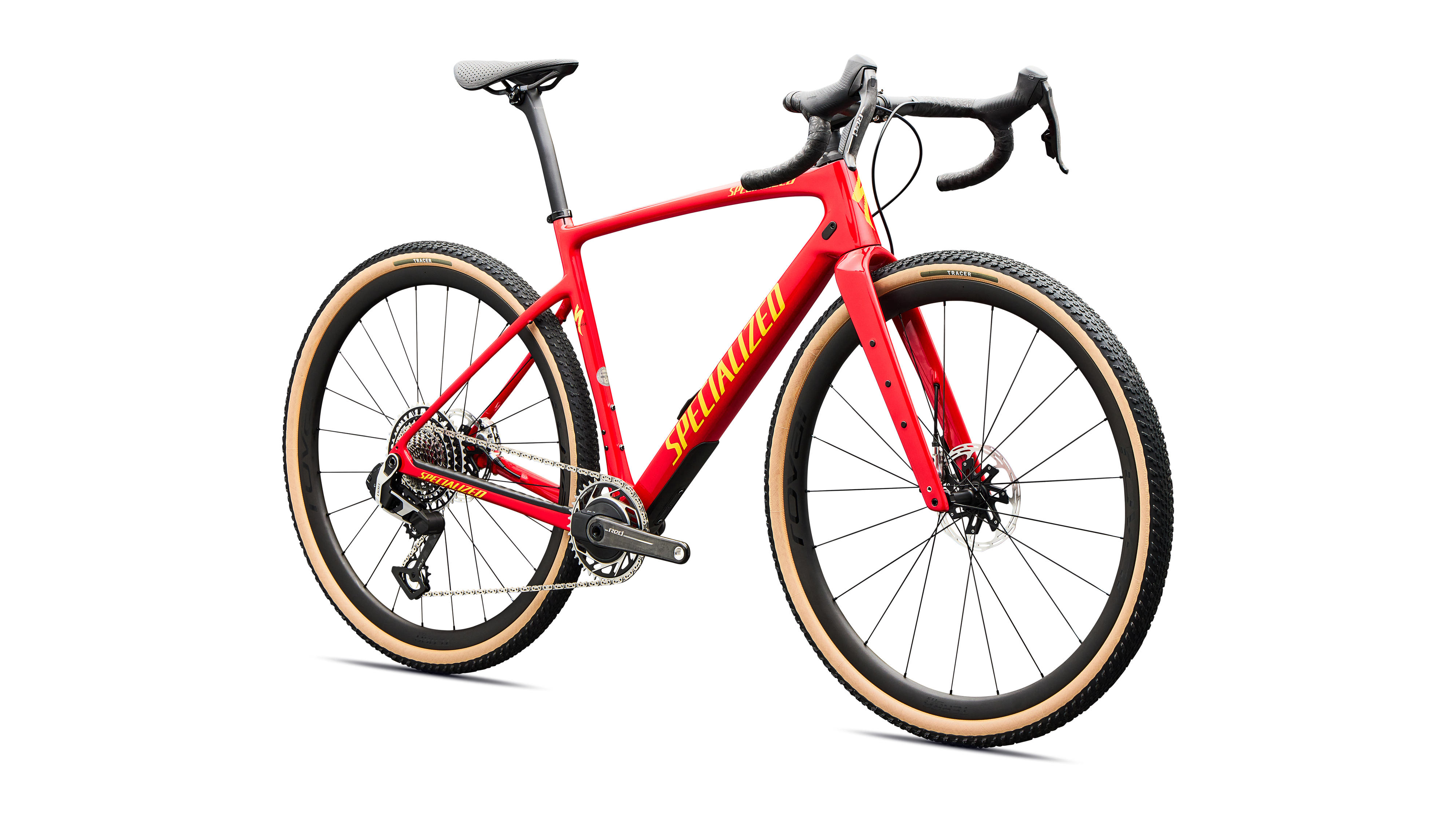

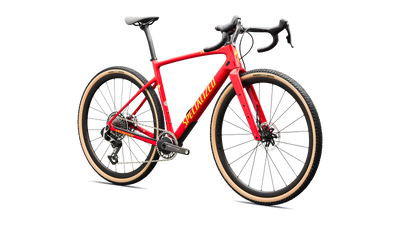

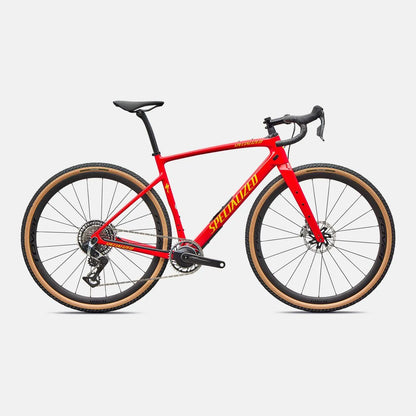

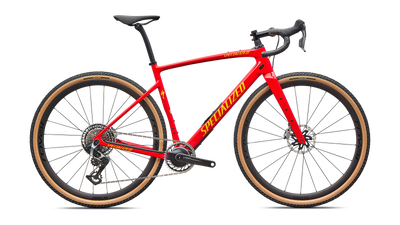

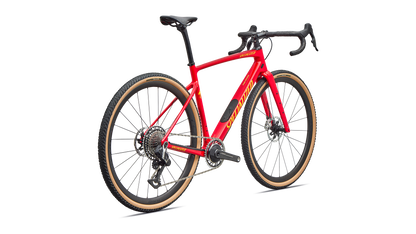

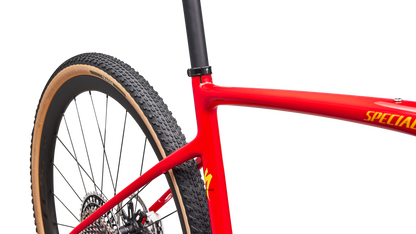

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both. Use - Gravel Adventure/Race

Frameset - FACT 9r Carbon

Suspension - Future Shock 3.3

Drivetrain/Wheels- SRAM Red with Quarq XPLR/Roval Terra CLX II

Storage - SWAT 4.0

8.01kg







Frameset

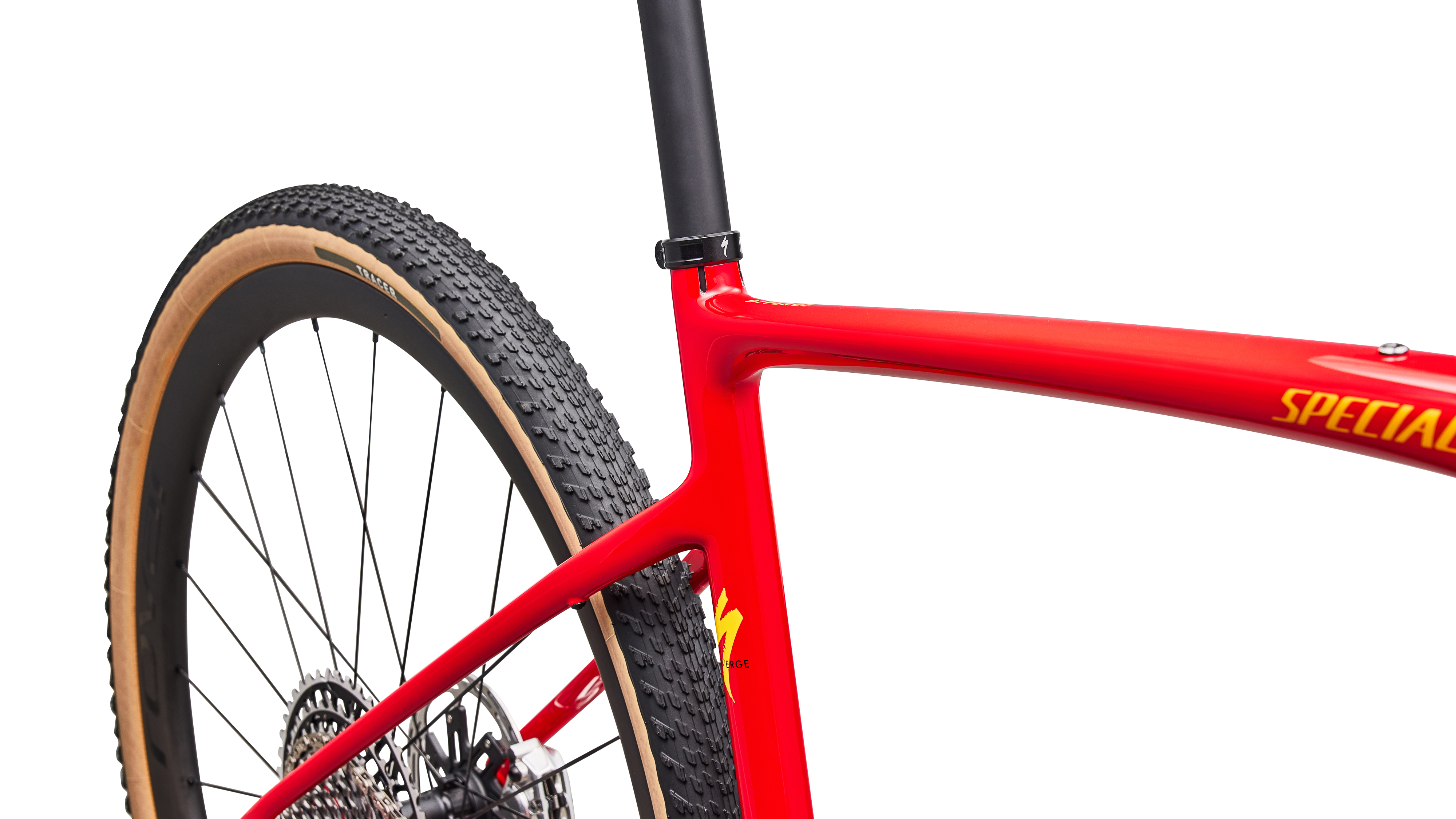

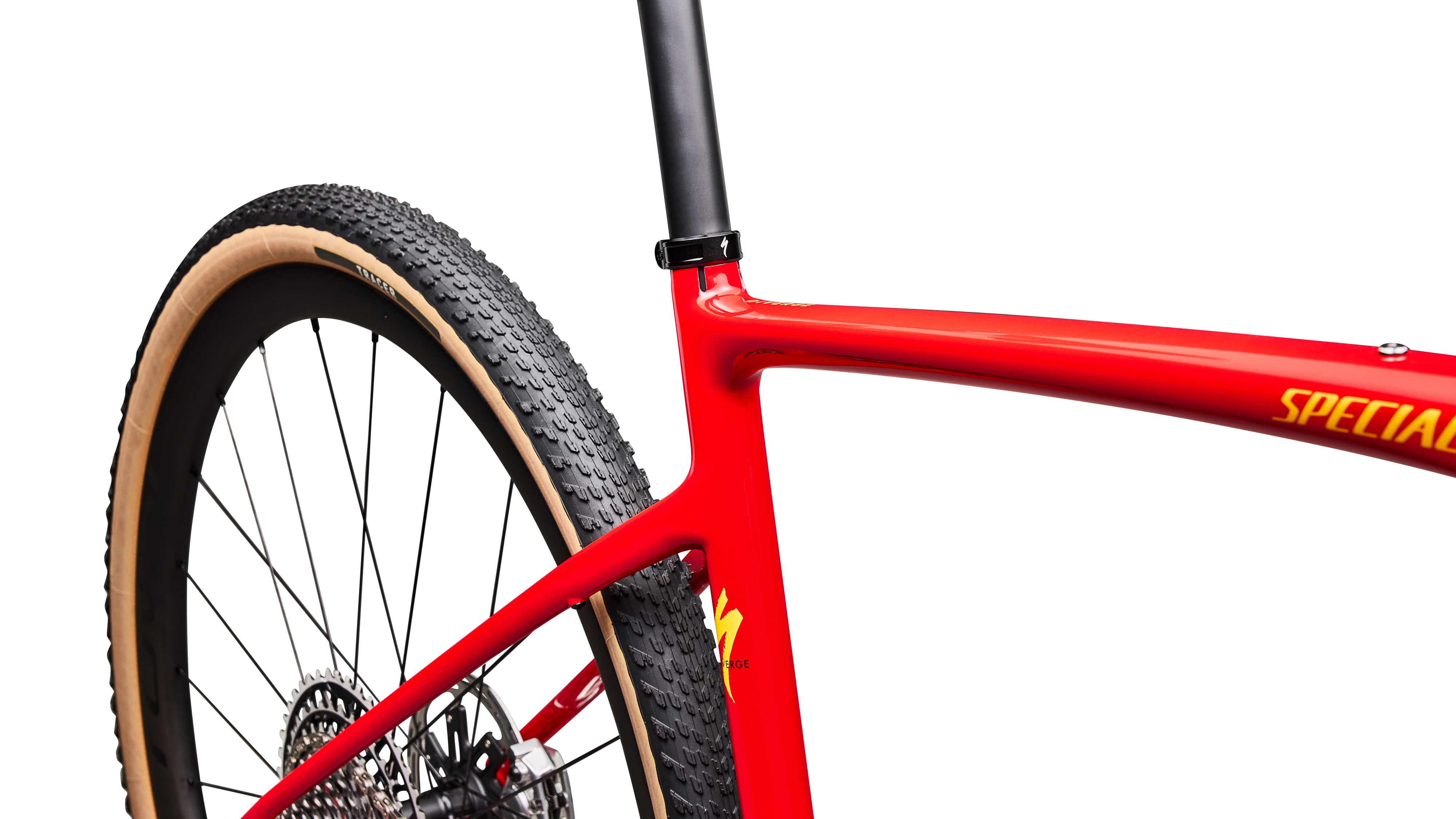

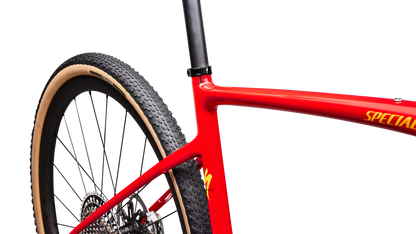

Frame Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout

Seat Binder Specialized Alloy, 30.8mm

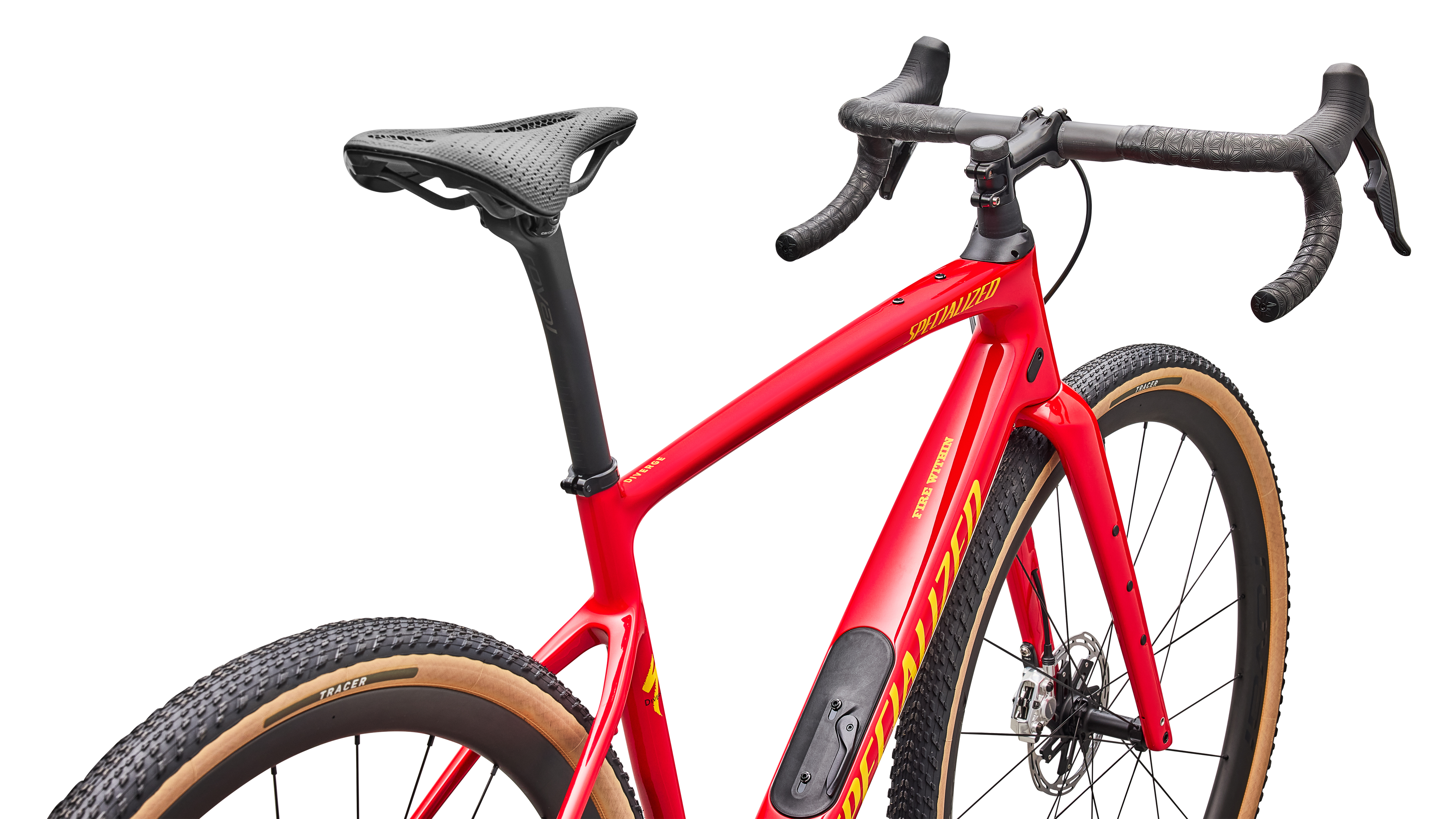

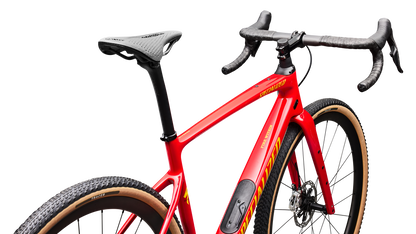

SWAT SWAT 4.0 internal downtube storage

Suspension

Fork Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc

Cockpit

Seat Post Roval Terra Carbon Seat Post, 20mm Offset

Saddle S-Works Power with Mirror

Stem Roval Alpinist, 7075 alloy, titanium bolts, 6-degree rise

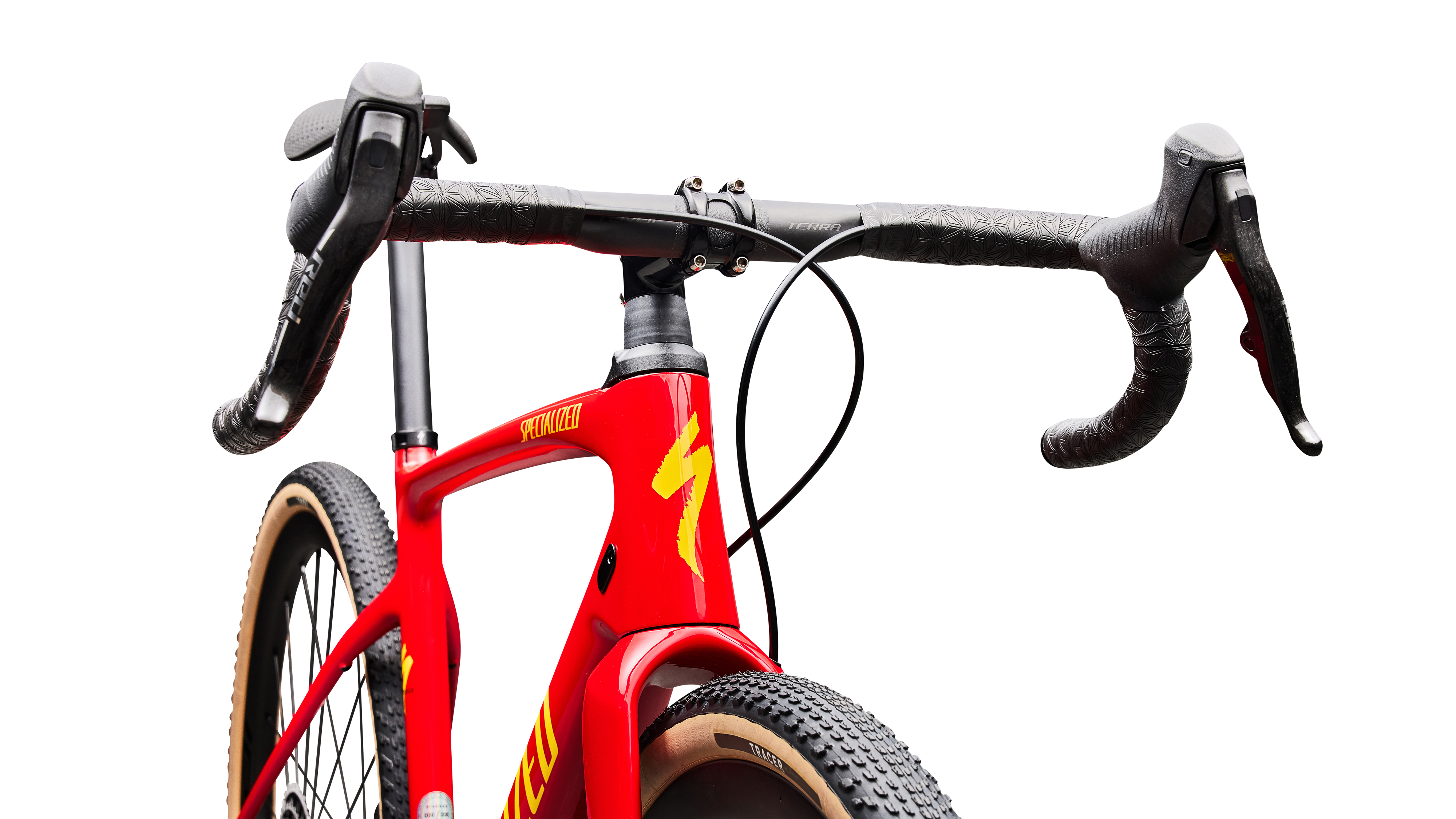

Handlebars Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Brakes

Front Brake SRAM RED AXS, hydraulic disc

Rear Brake SRAM RED E1, hydraulic disc

Drivetrain

Shift Levers SRAM RED AXS E1

Rear Derailleur SRAM RED XPLR, 13sp

Cassette SRAM RED XPLR, 13sp, 10-46t

Crankset SRAM RED AXS, Quarq Power Meter, 40t Chainring

Chain SRAM RED E1 Chain

Bottom Bracket SRAM DUB BSA 68 Wide

Wheels & Tyres

Front Wheel Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes

Rear Wheel Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes

Front Tire Tracer 700x45, Tan Sidewall, Tubeless Ready

Rear Tire Tracer 700x45, Tan Sidewall, Tubeless Ready

Tubes Presta, 700x32-50mm

Accessories
