Technical Specifications

Description

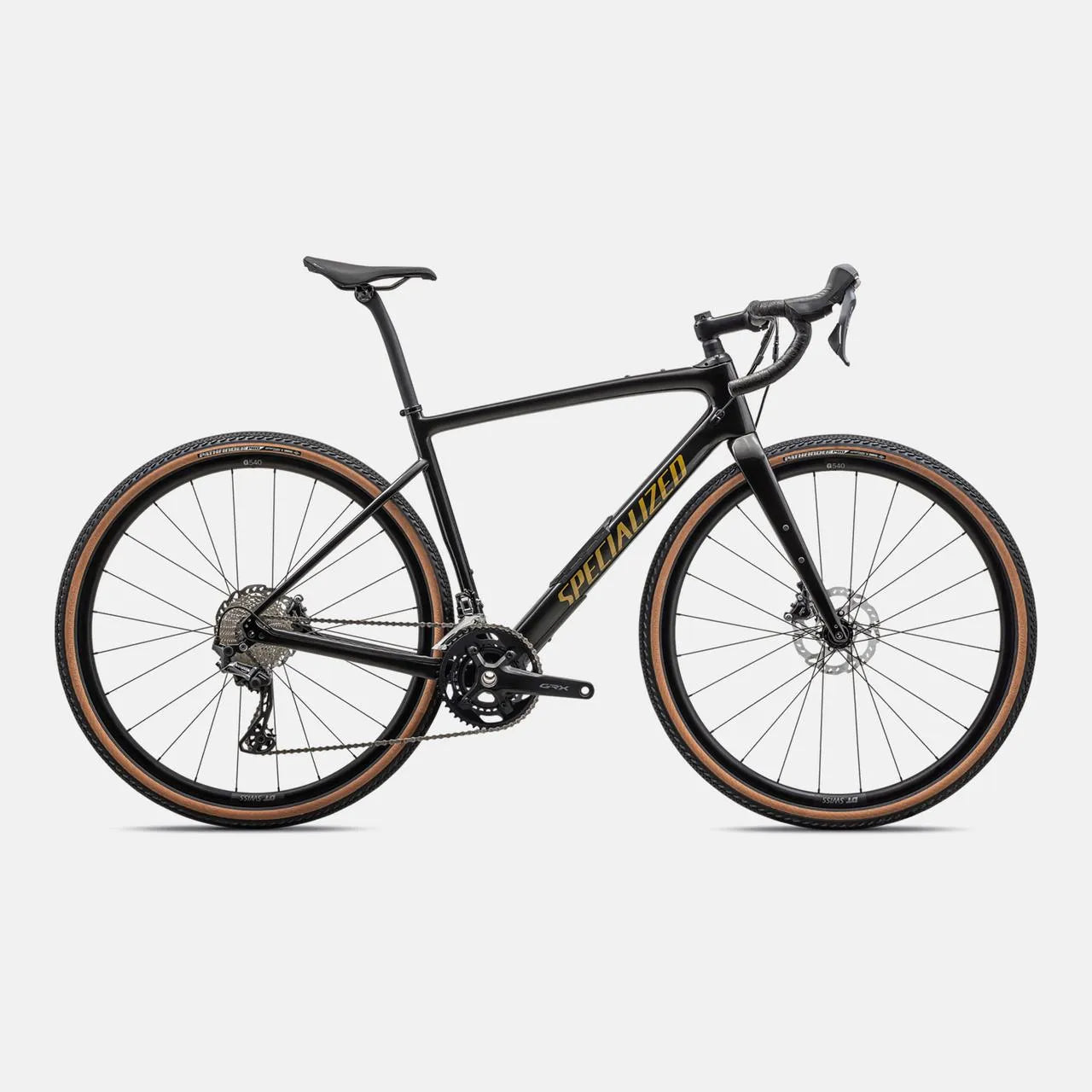

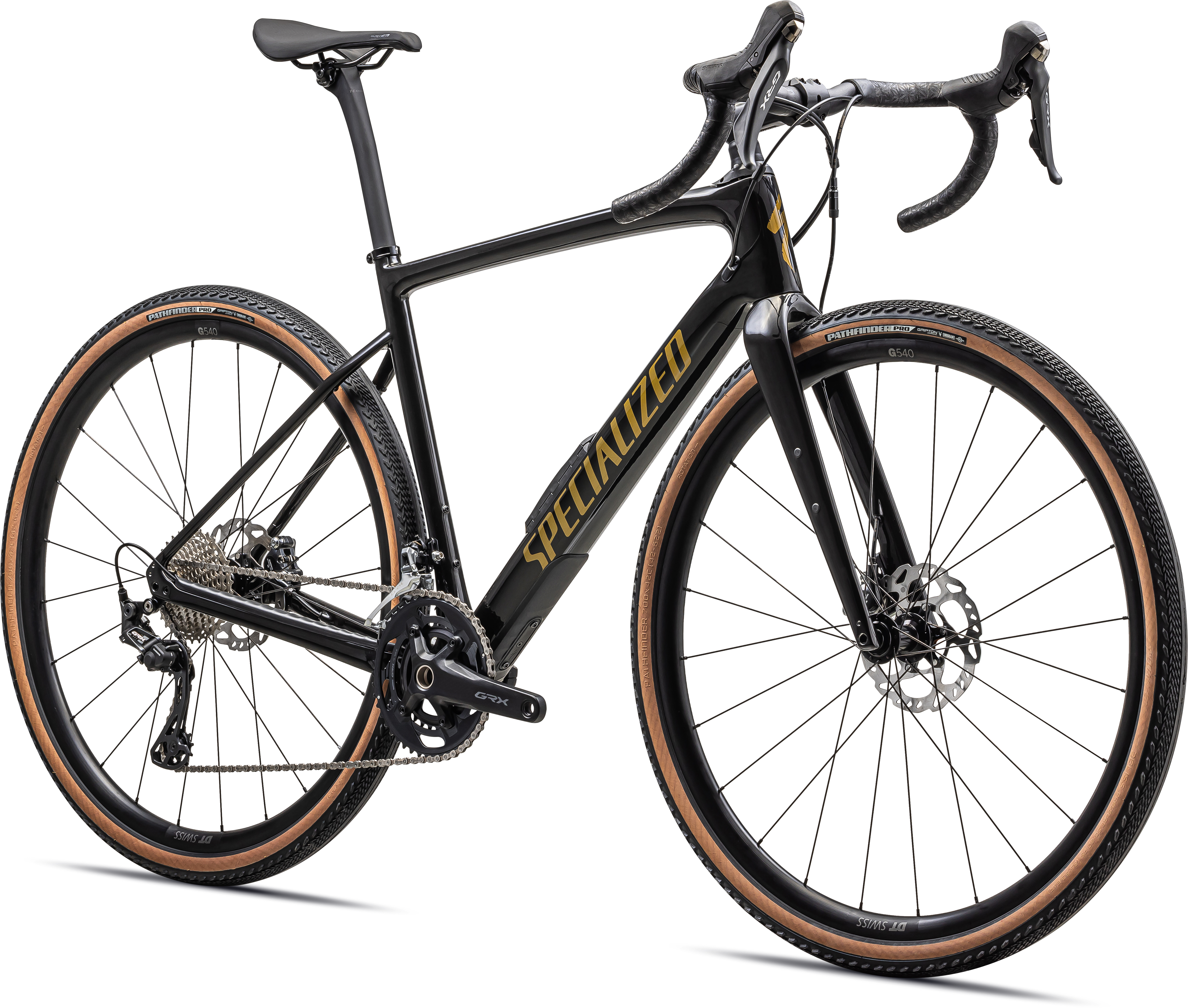

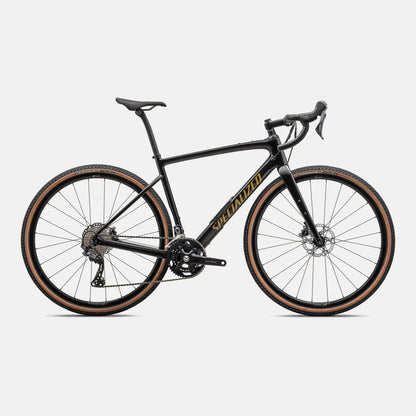

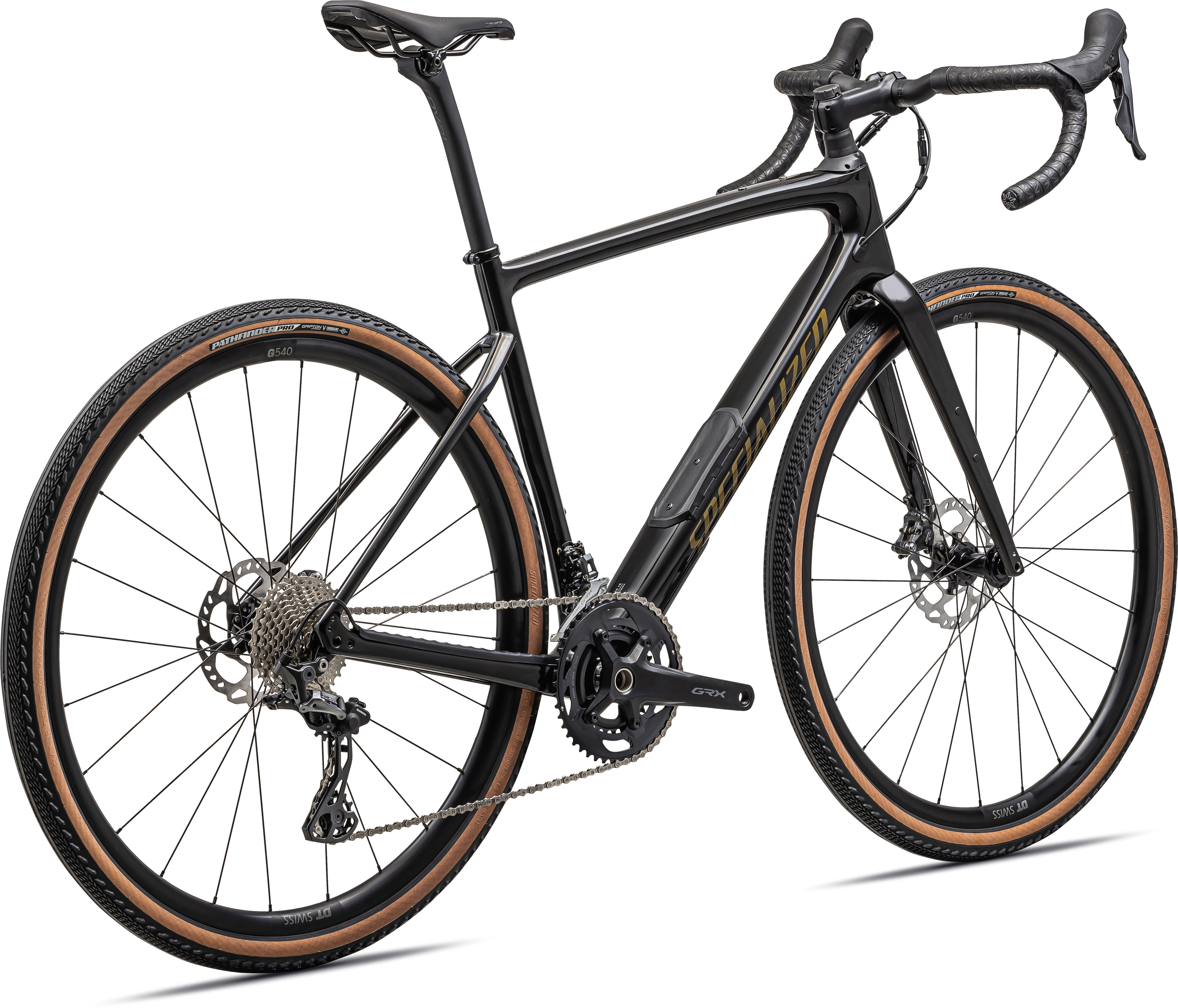

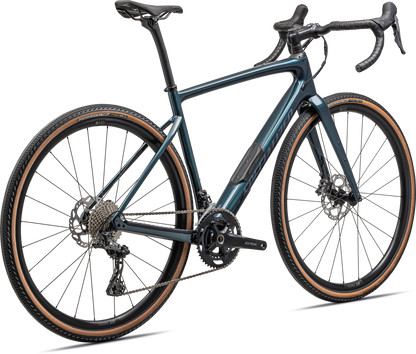

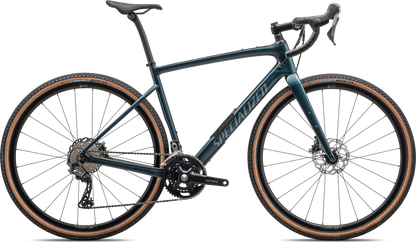

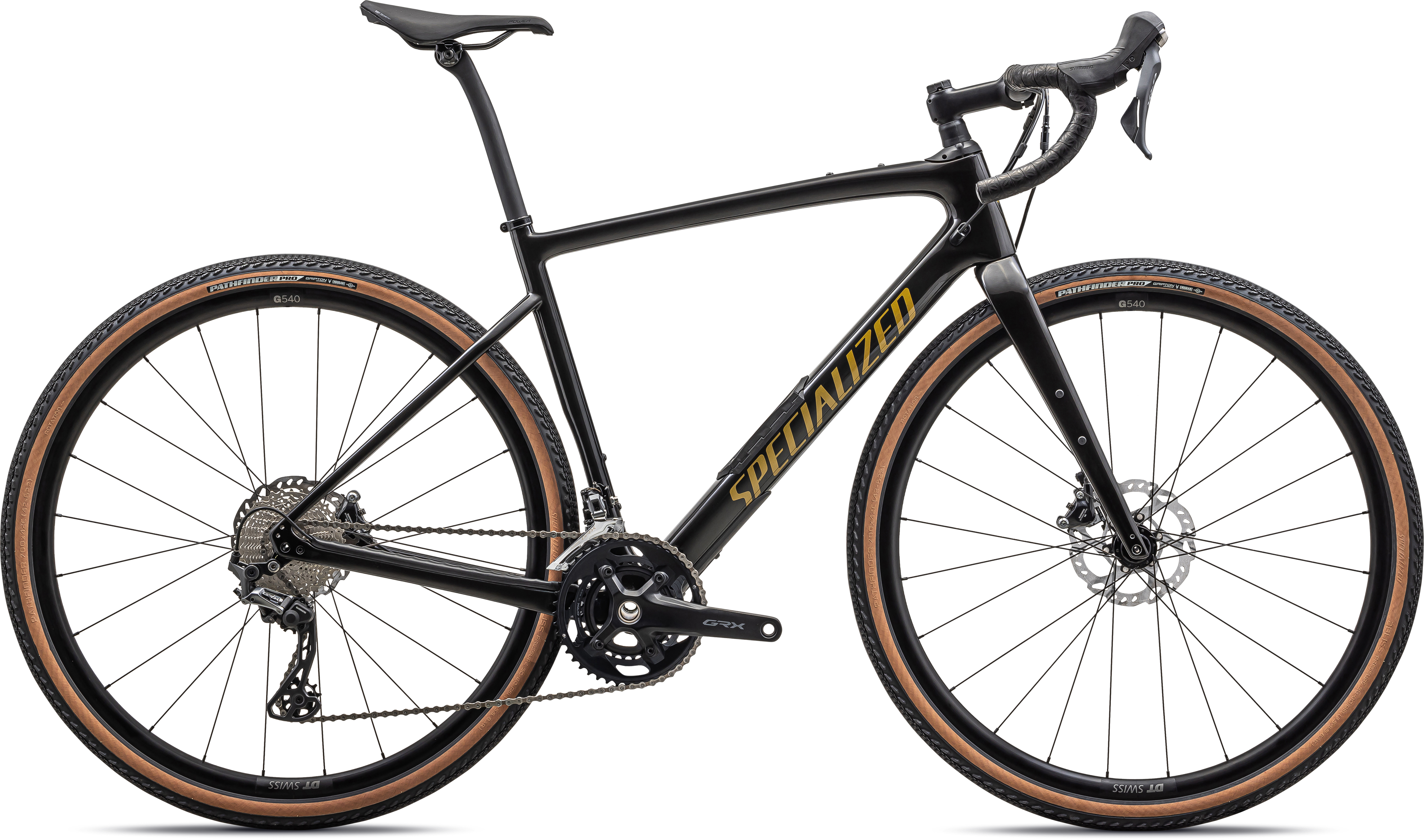

Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. It’s quite simply the fastest, most capable - and just maybe the most fun - bike we’ve ever made, delivering a ride that’s quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 2.0 and all-new gravel geometry, to internal storage and category leading tire clearance, the new Diverge represents everything we’ve learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It’s the ultimate getaway vehicle. The Diverge Comp Carbon features the same game changing FACT 9r Carbon frame and Future Shock 2.0 as our Pro build but spec’d with Shimano's mechanical shifting GRX 2x11 gravel group. Alloy DT Swiss G540 wheels keep you rolling efficiently, while Kanza winning Pathfinder Pro 42mm tires deliver performance across smooth pavement, dirt roads and gravel tracks. To give the Diverge Comp a perfectly balanced ride we spec Roval’s Terra seat post. With a FACT 9r carbon frame, the Diverge Comp frame is incredible capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant back country peak, the light and lively Diverge will get you there faster.

Speed, control and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.

We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out. Note: all carbon models will need an aftermarket seatpost clamp with rack mount to install a rear rack. (Part Number: S184700001).

We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.

Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a solid beam of carbon behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.

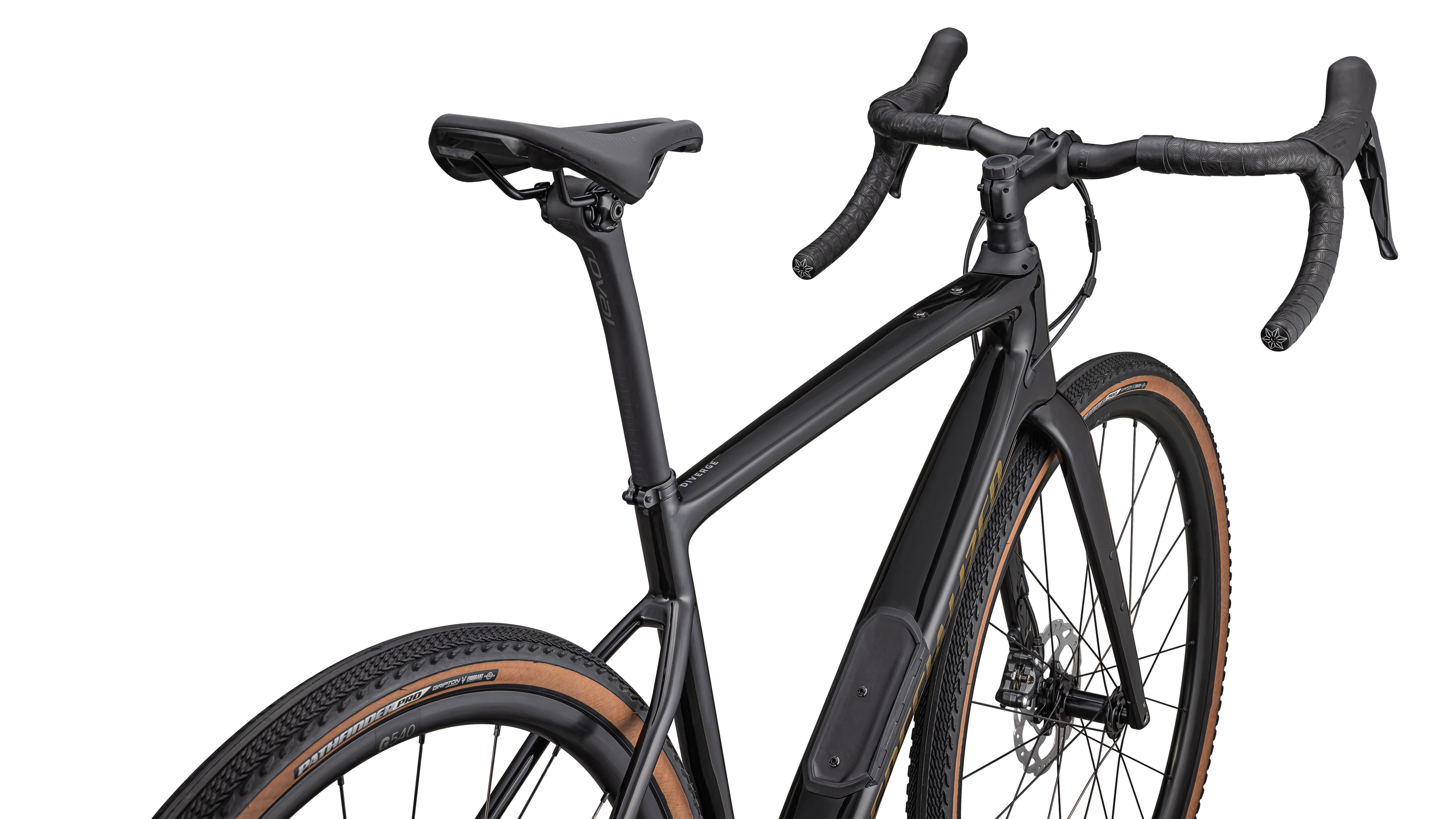

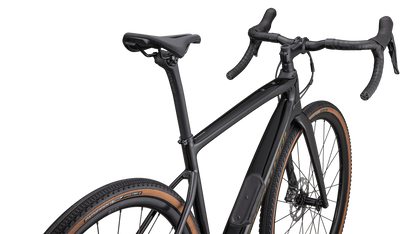

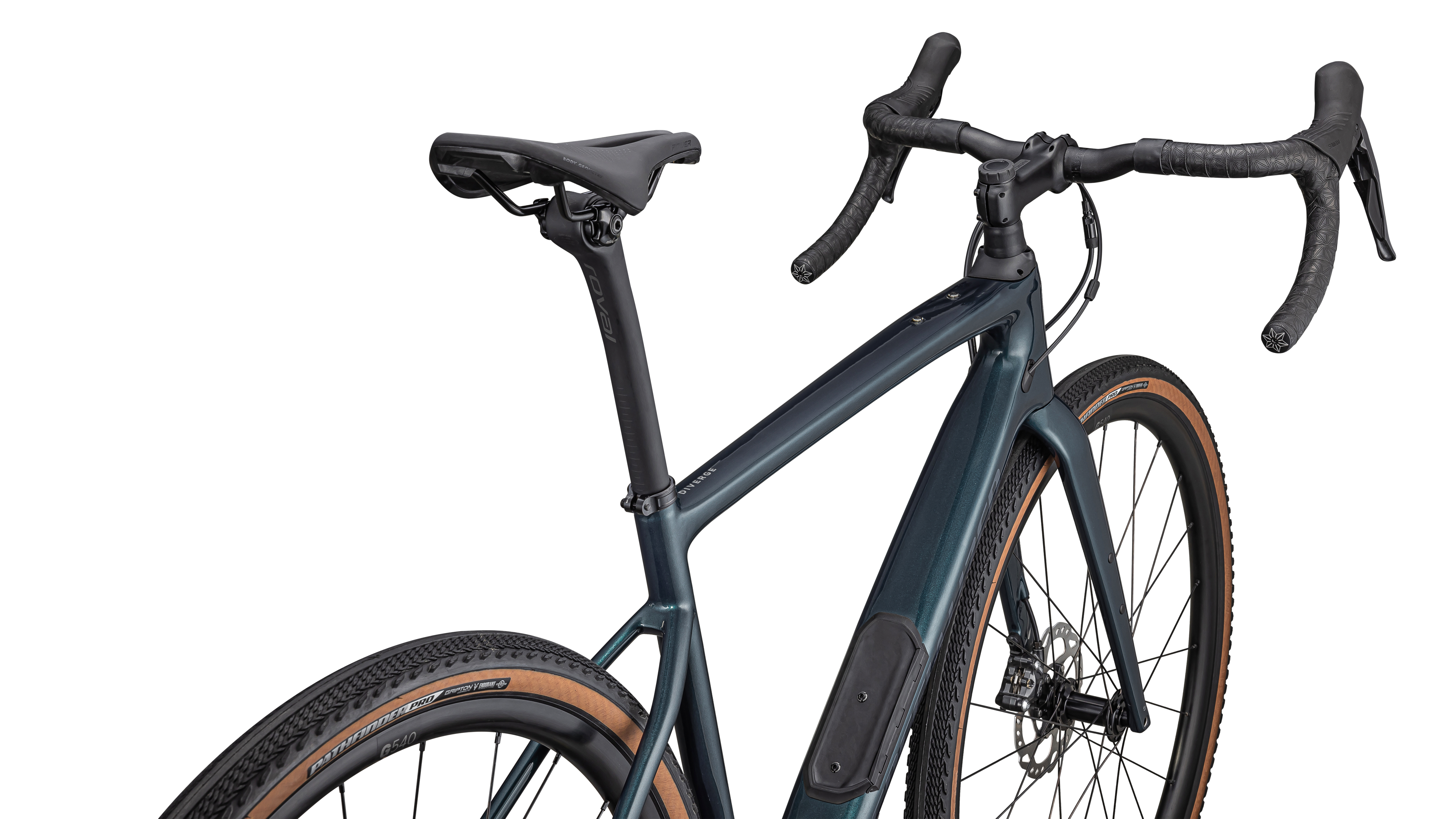

The more capable your bike, the bigger your rides get, so Diverge borrows SWAT internal storage from the legendary Stumpy. The SWAT door lets you utilize space in the down tube to store tools, a flat kit, nutrition and even our SWAT Jacket. It keeps weight off your body, low in the bike for better handling, and makes you more self-sufficient, so get out there. SWAT’s got your back.







Frameset

Frame Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

Seat Binder Specialized Alloy, 30.8mm

SWAT Integrated SWAT door, internal storage system

Suspension

Fork Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

Cockpit

Seat Post Roval Terra Carbon Seat Post, 20mm Offset

Saddle Body Geometry Power Sport, steel rails

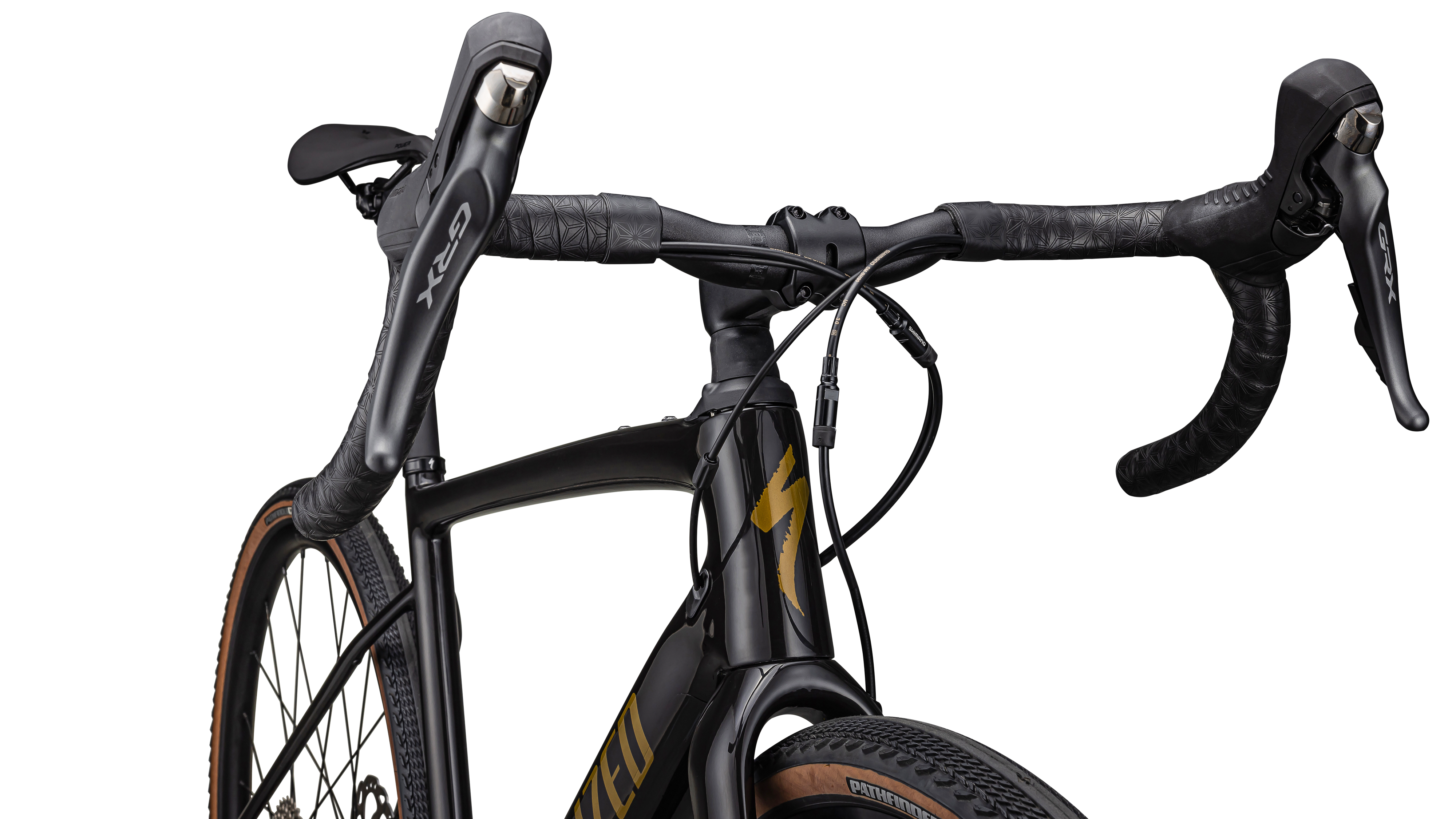

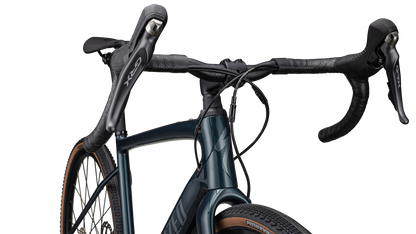

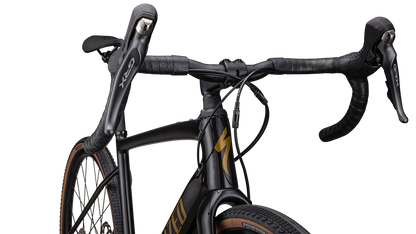

Stem Future Stem, Comp

Handlebars Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Brakes

Front Brake Shimano GRX ST-R810, Hydraulic Disc, 160mm centerlock, SM-RT70

Rear Brake Shimano GRX ST-R810, Hydraulic Disc, 160mm centerlock, SM-RT70

Drivetrain

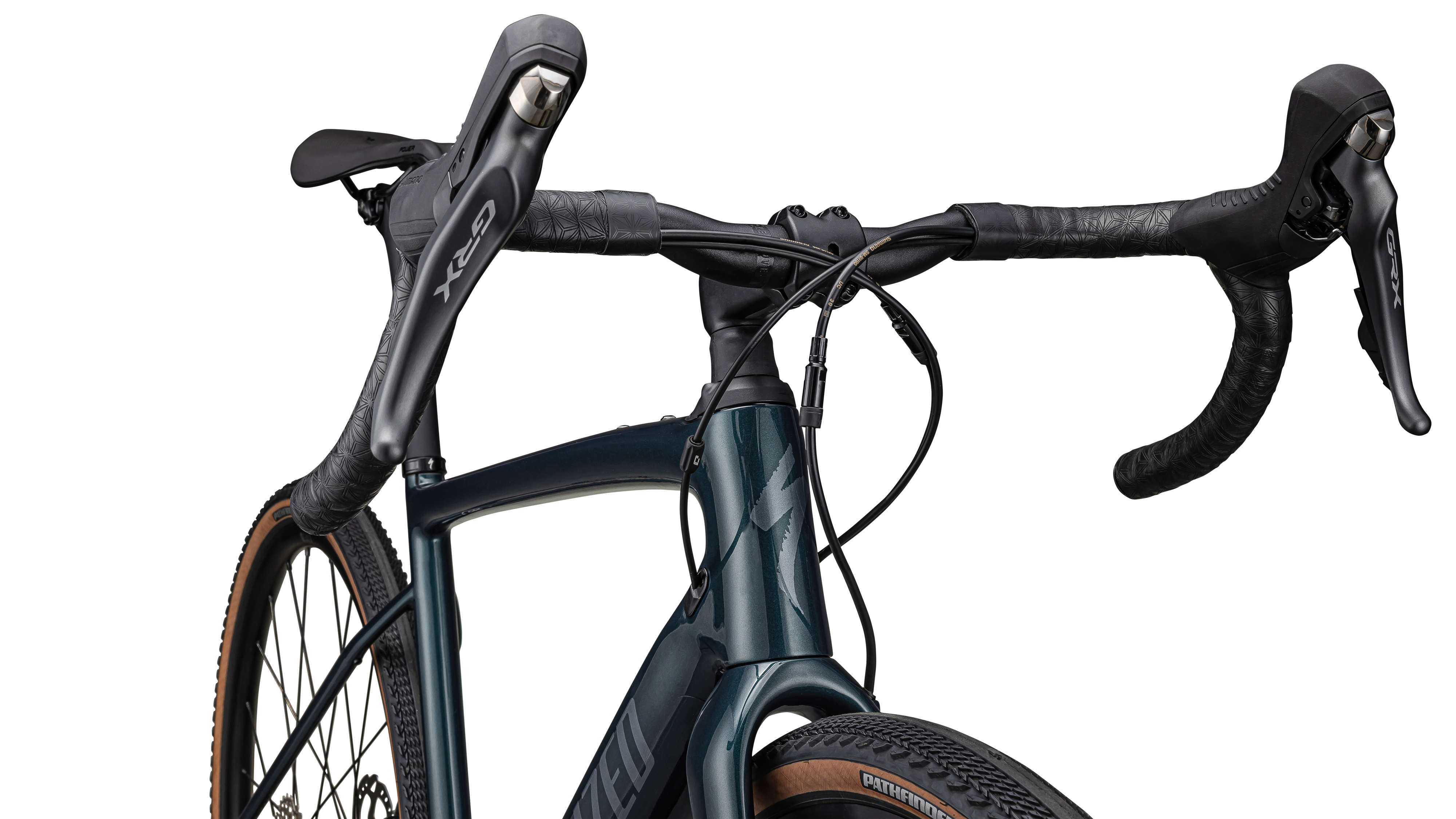

Shift Levers Shimano GRX 2x11 speed, ST-R810, Hydraulic Disc

Rear Derailleur Shimano GRX R810, 11speed

Cassette Shimano Ultegra, 11-speed, 11-34t

Crankset Shimano GRX RX600

Chain Shimano Ultegra, 11-speed

Chain Ring 46/30T

Bottom Bracket Shimano BSA Threaded

Wheels & Tyres

Front Wheel DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Rear Wheel DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Front Tire Pathfinder Pro 2BR, Tan sidewall, 700x42

Rear Tire Pathfinder Pro 2BR, Tan sidewall, 700x42

Tubes Standard 40mm SV 700x32-50

Accessories
