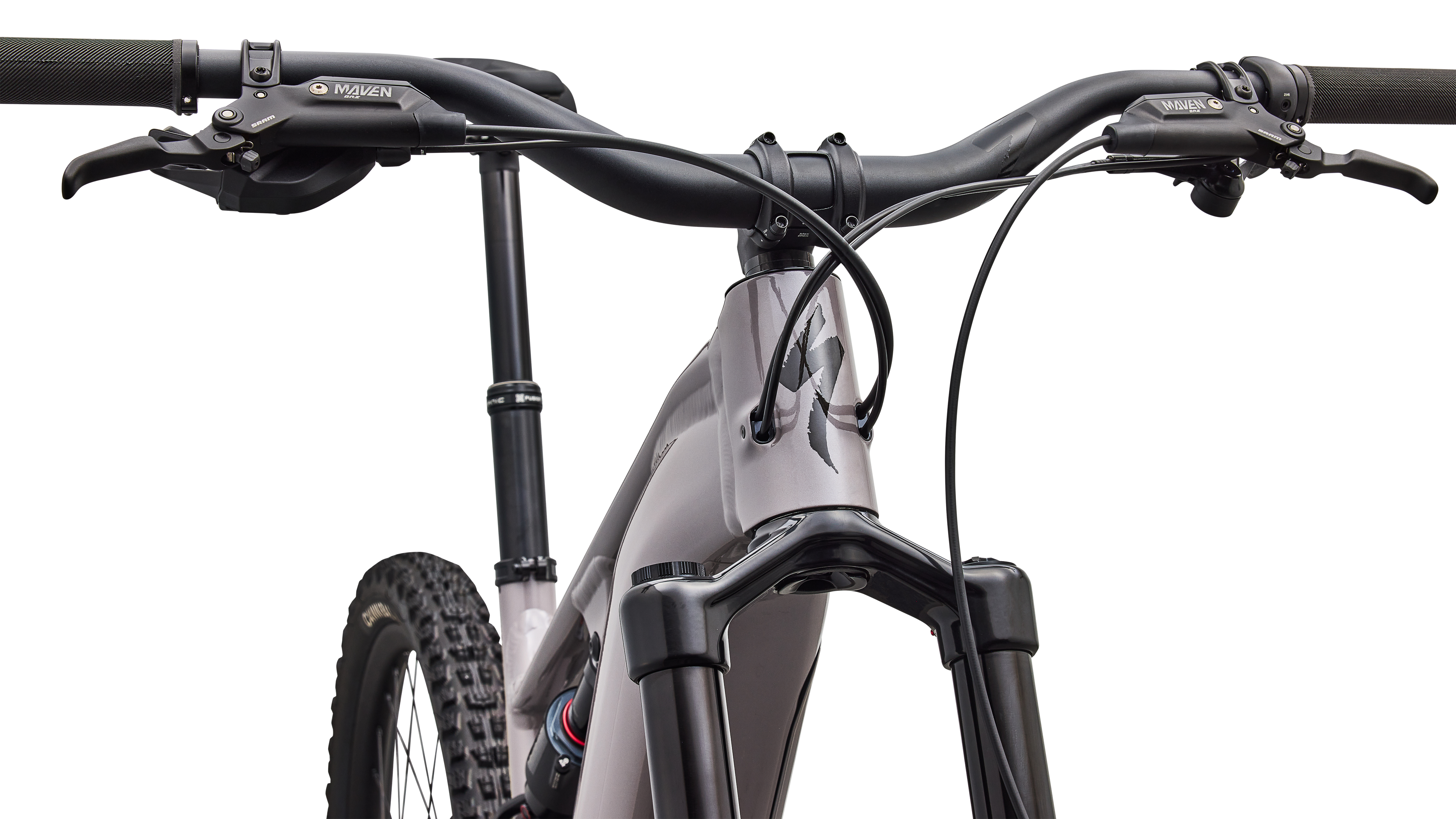

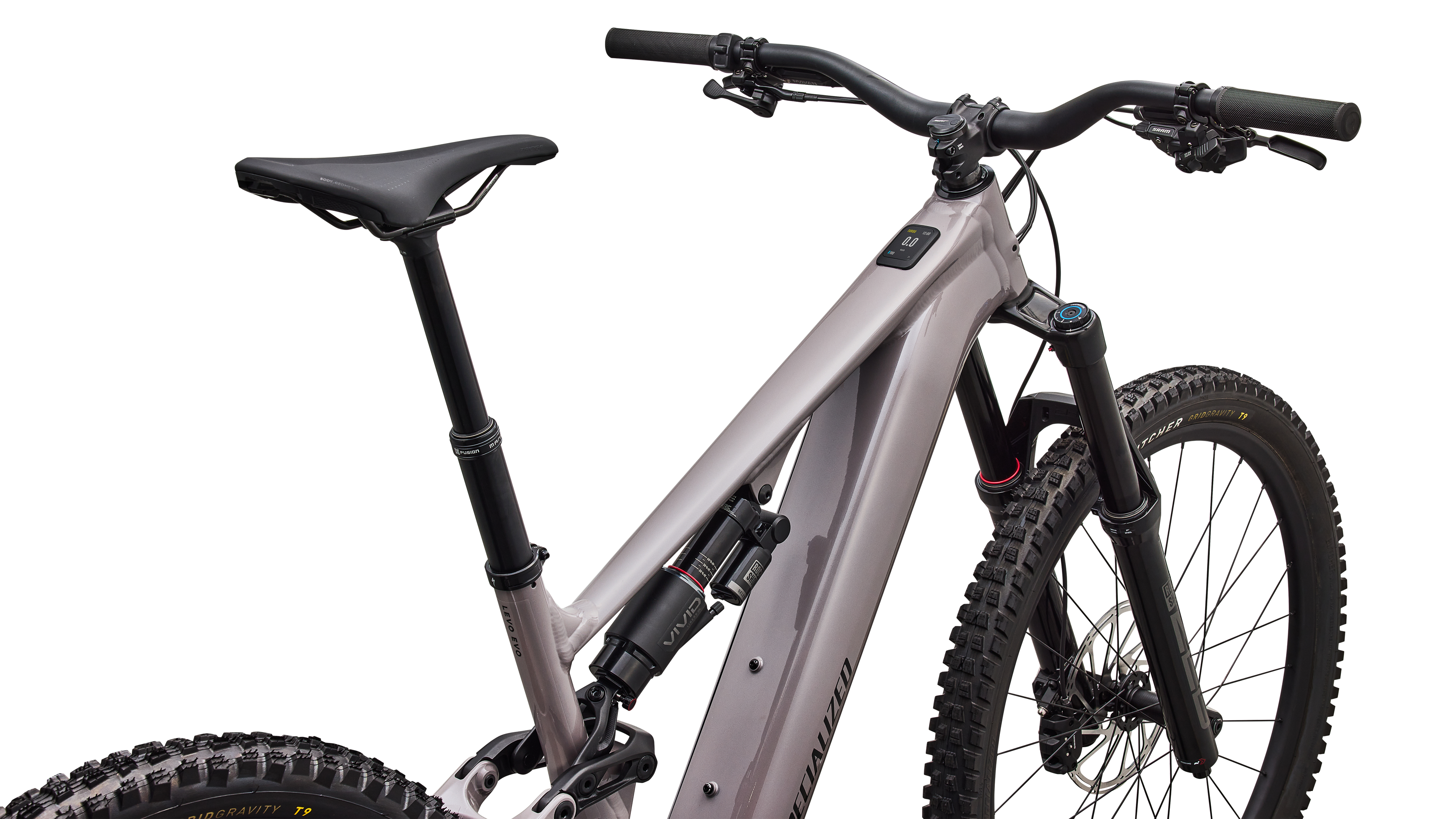

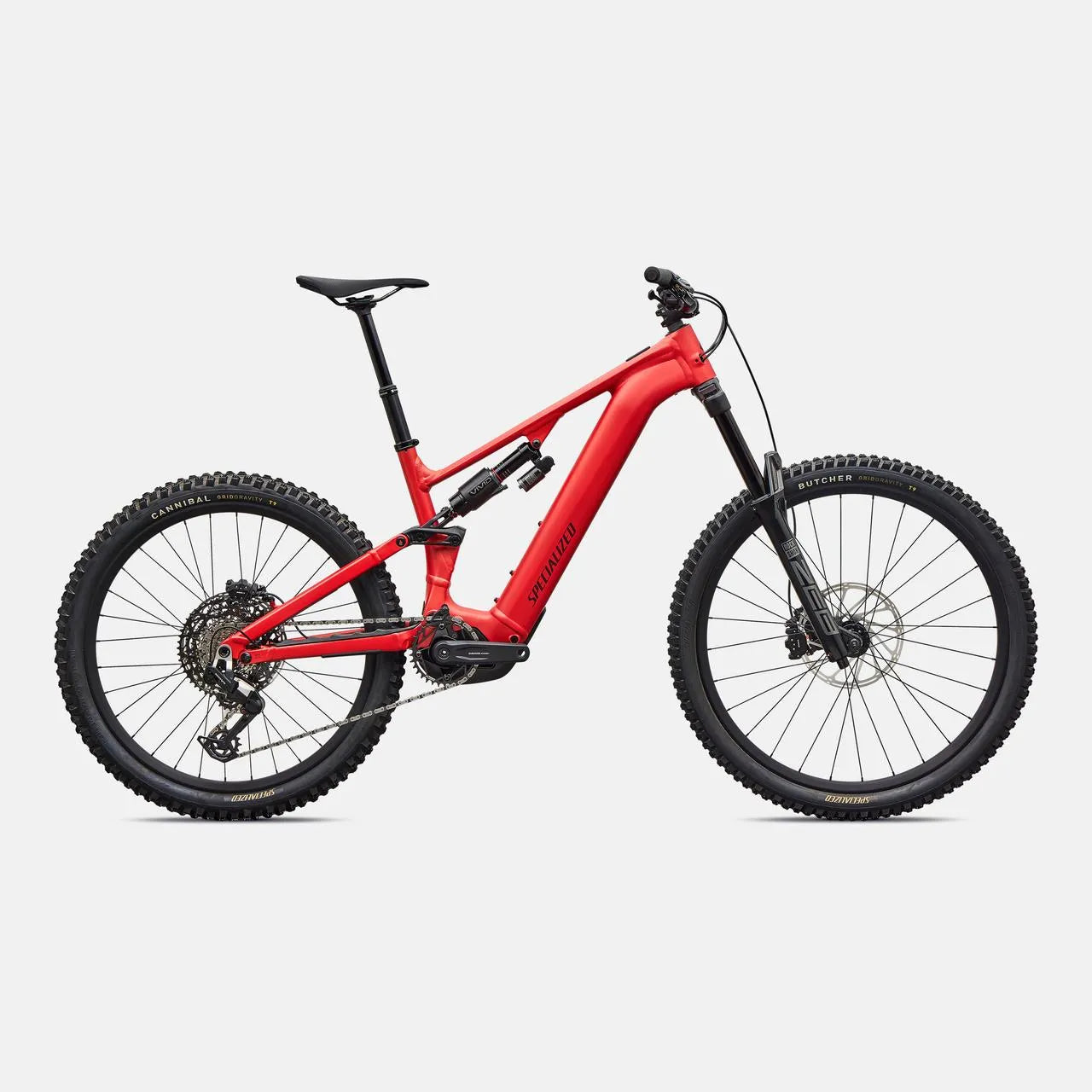

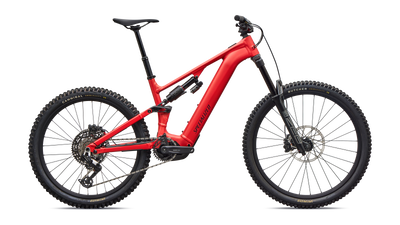

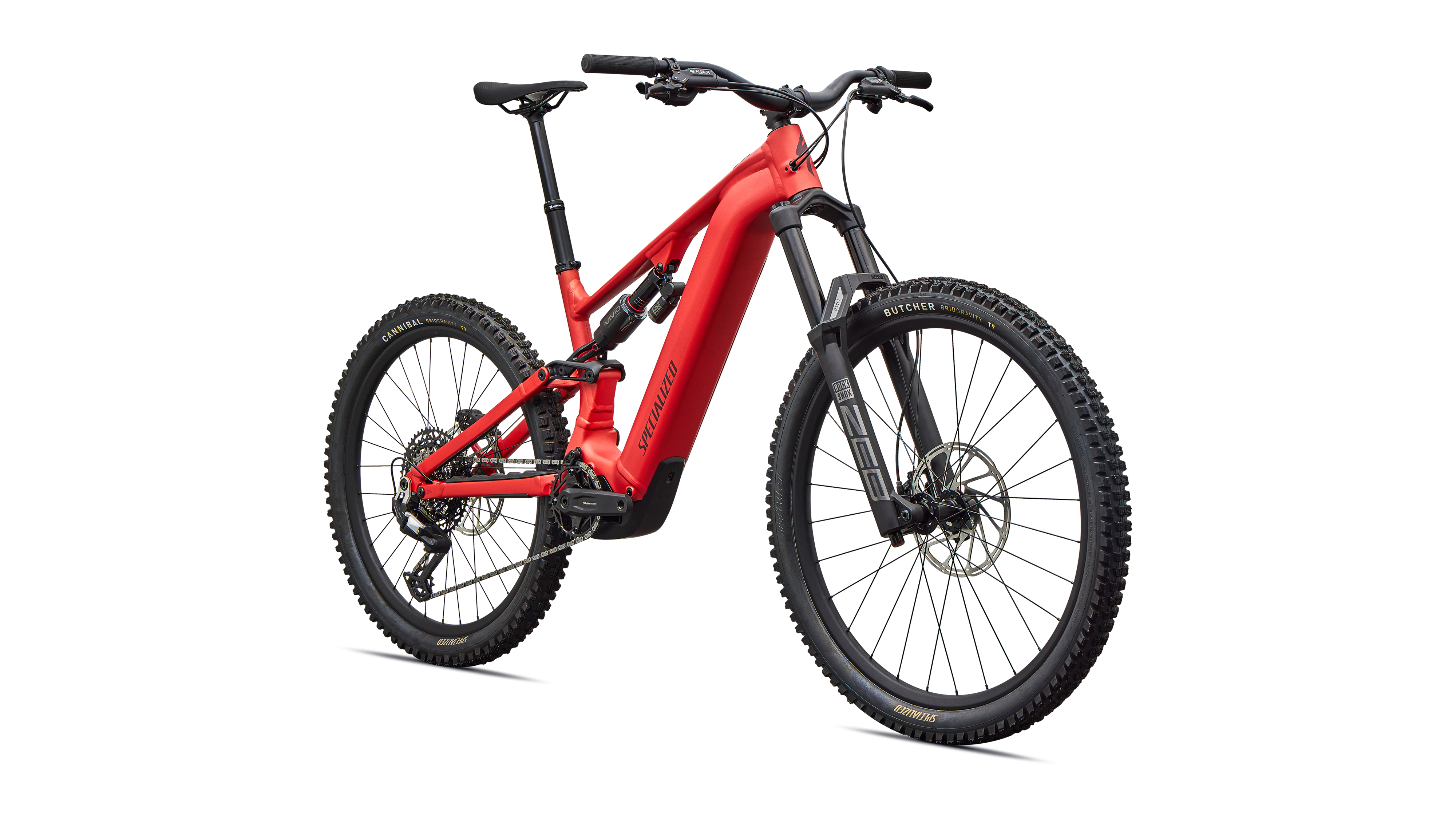

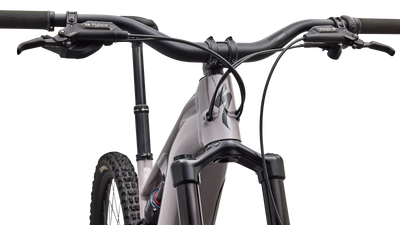

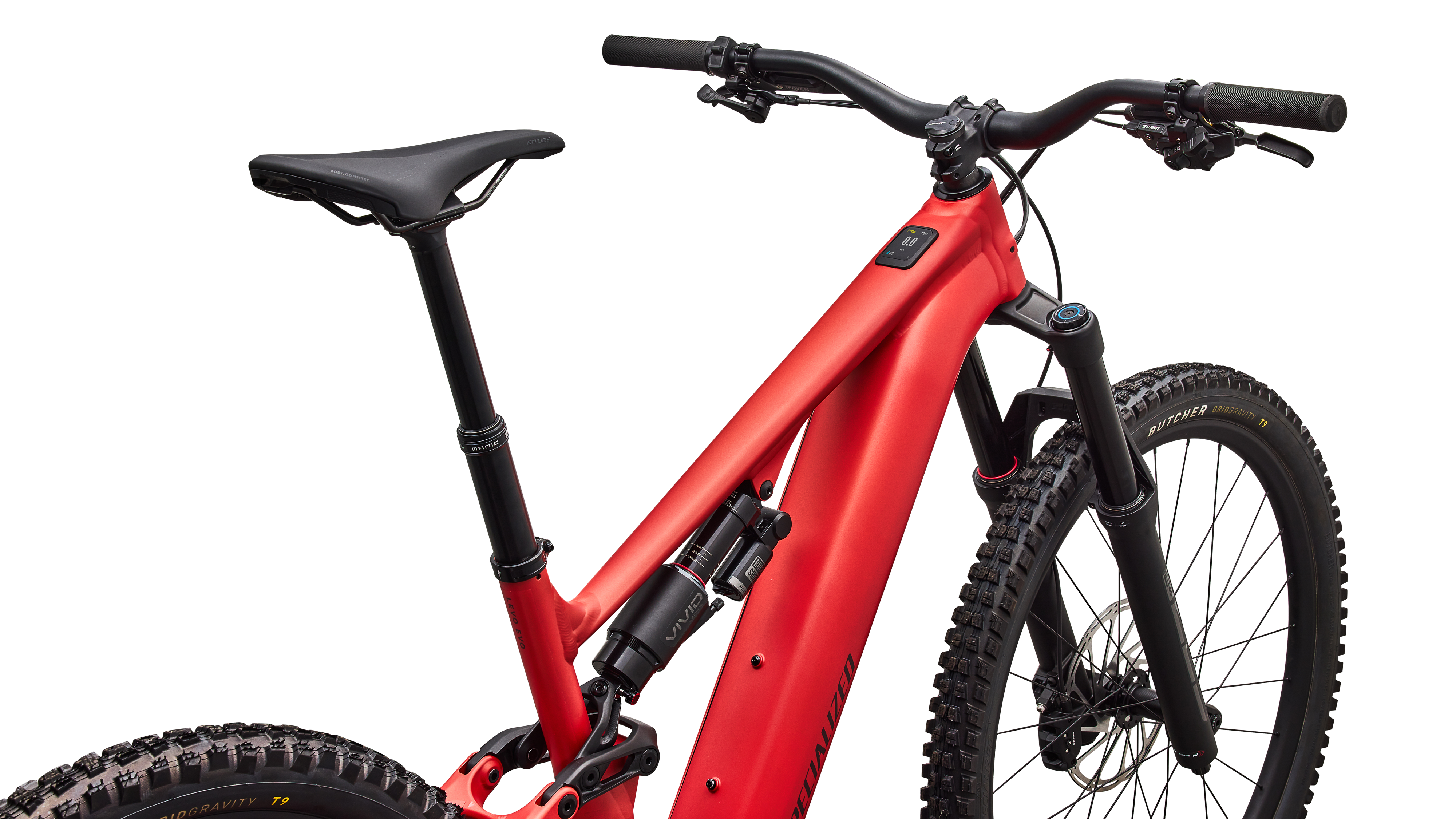

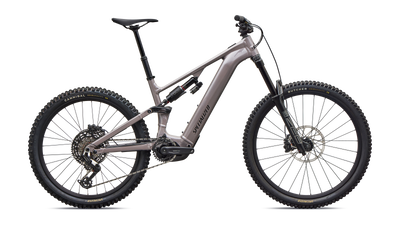

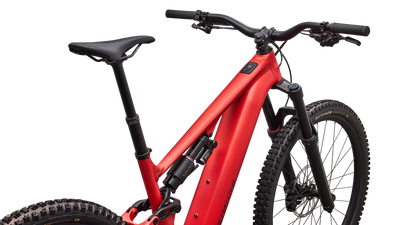

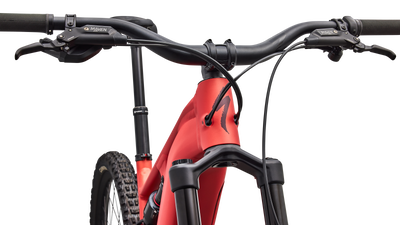

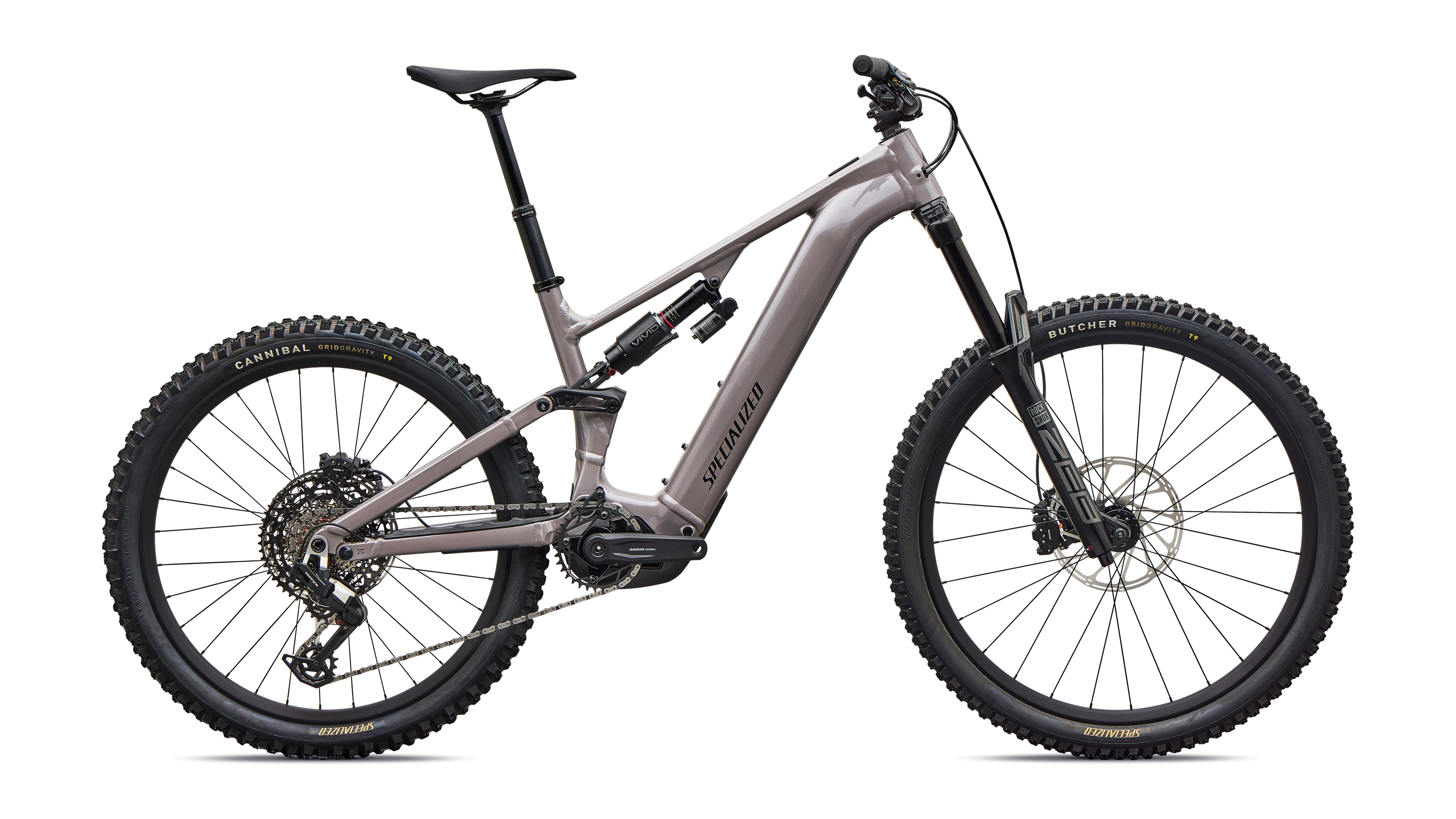

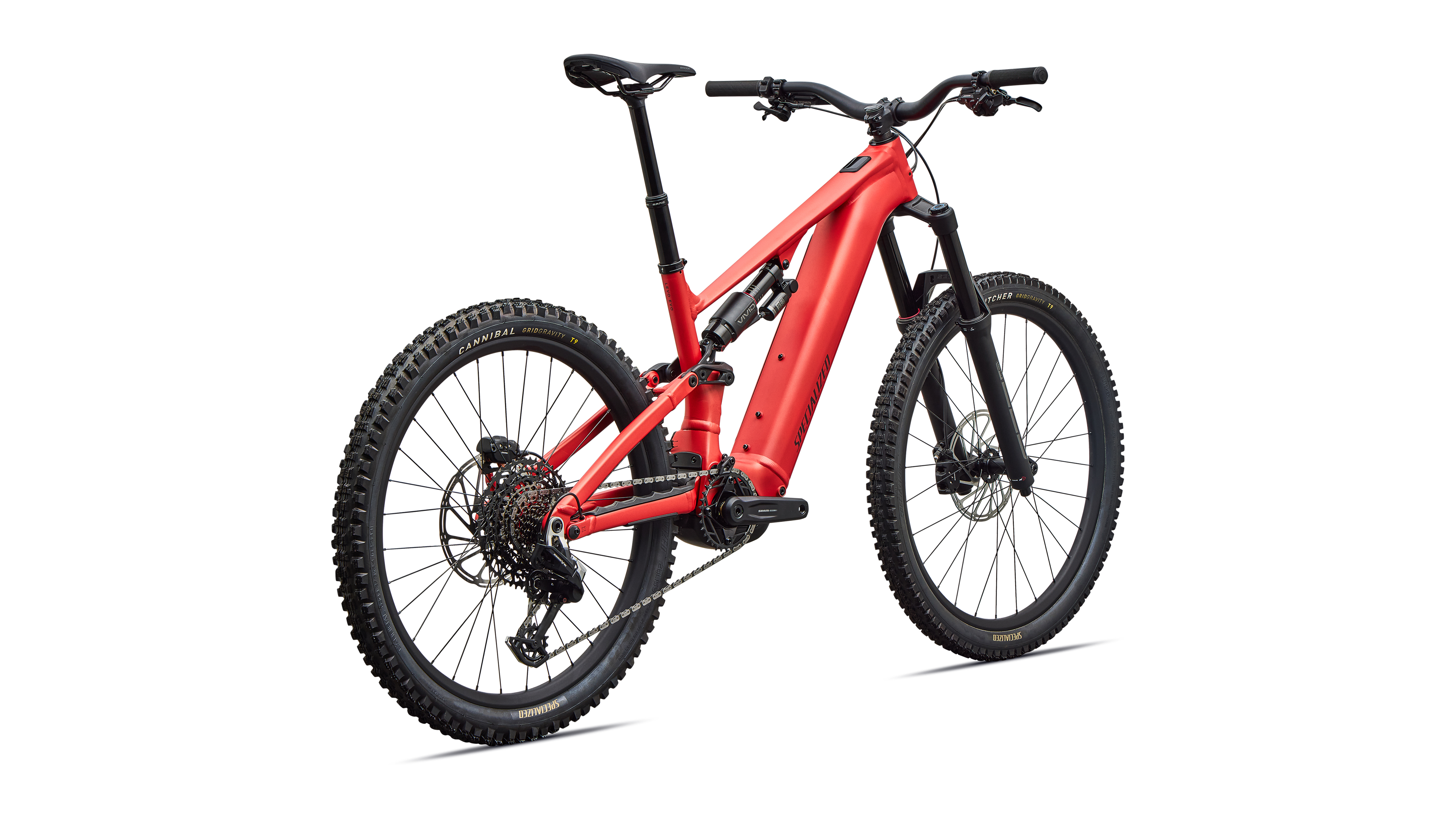

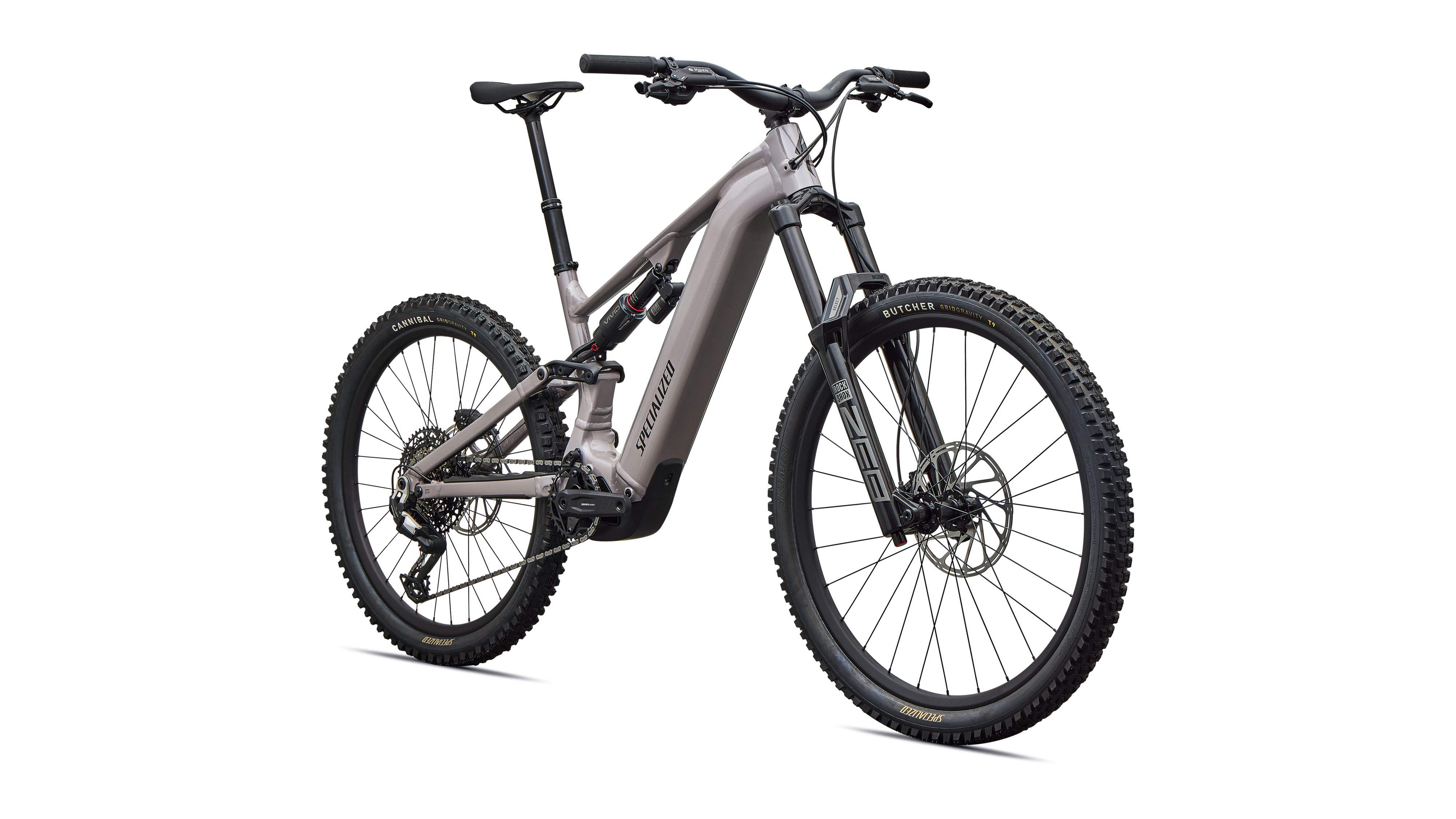

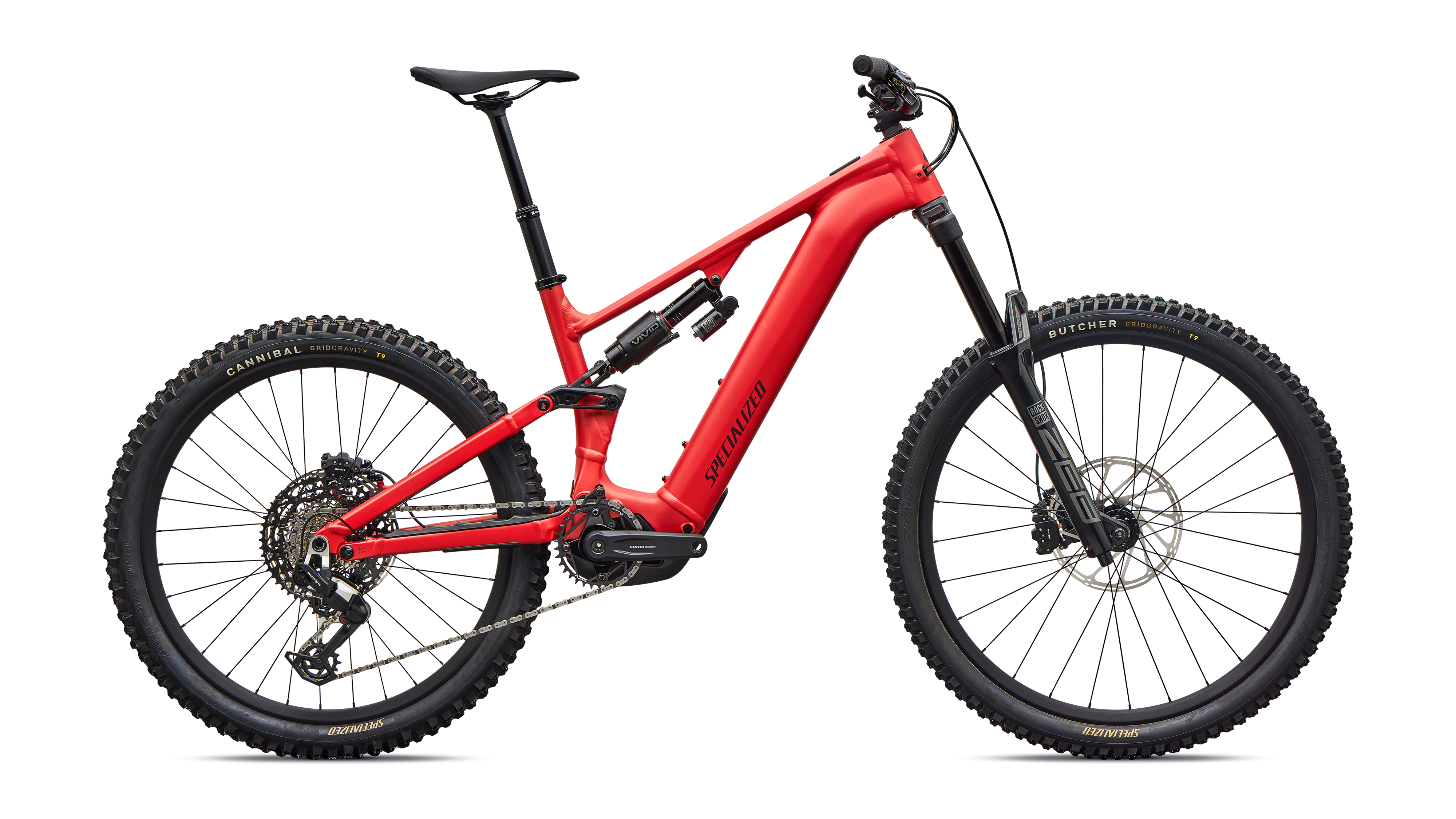

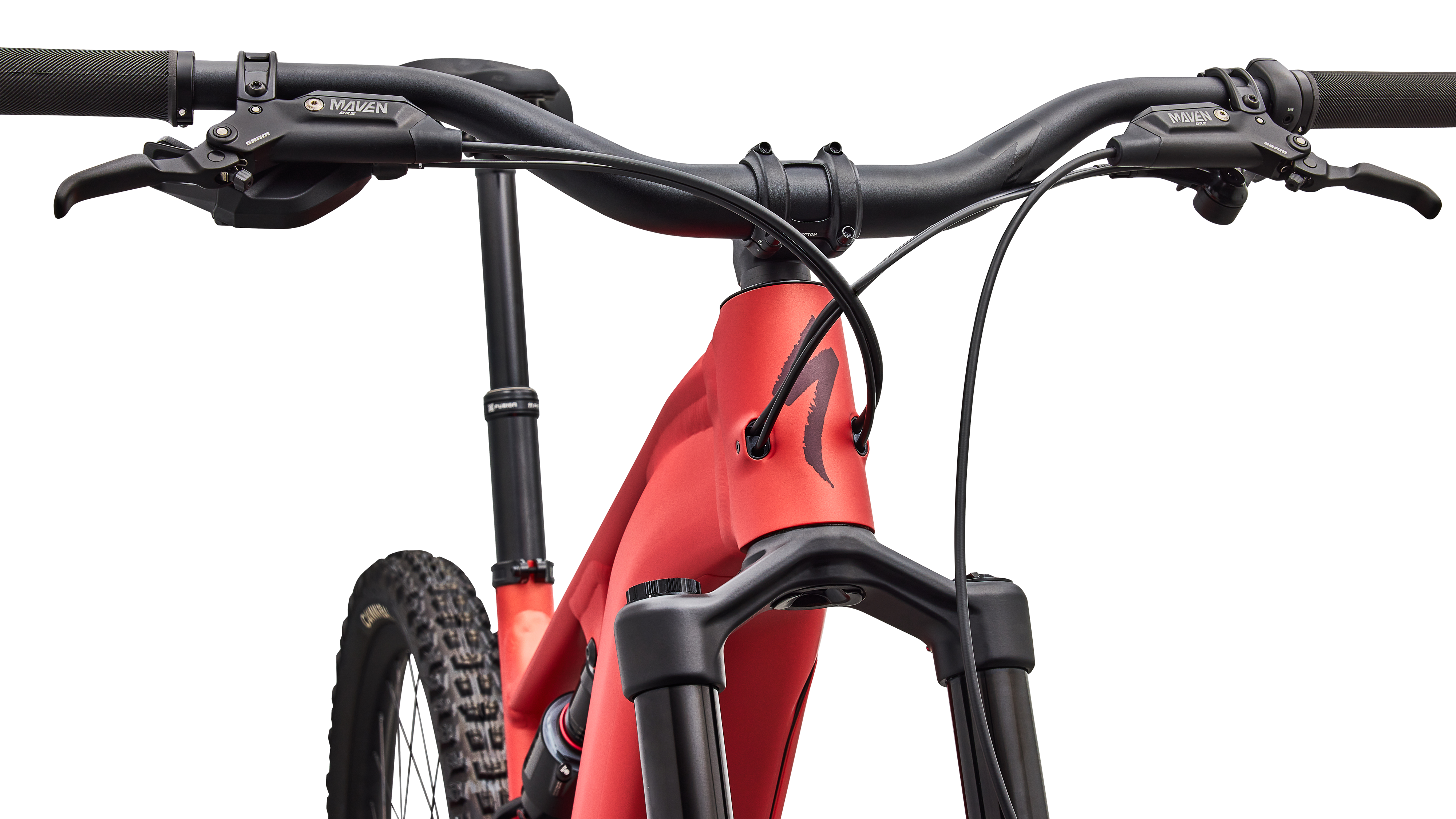

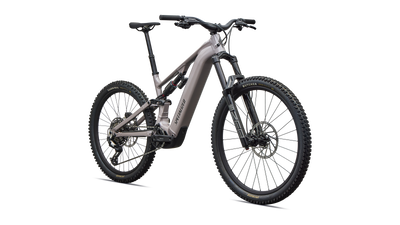

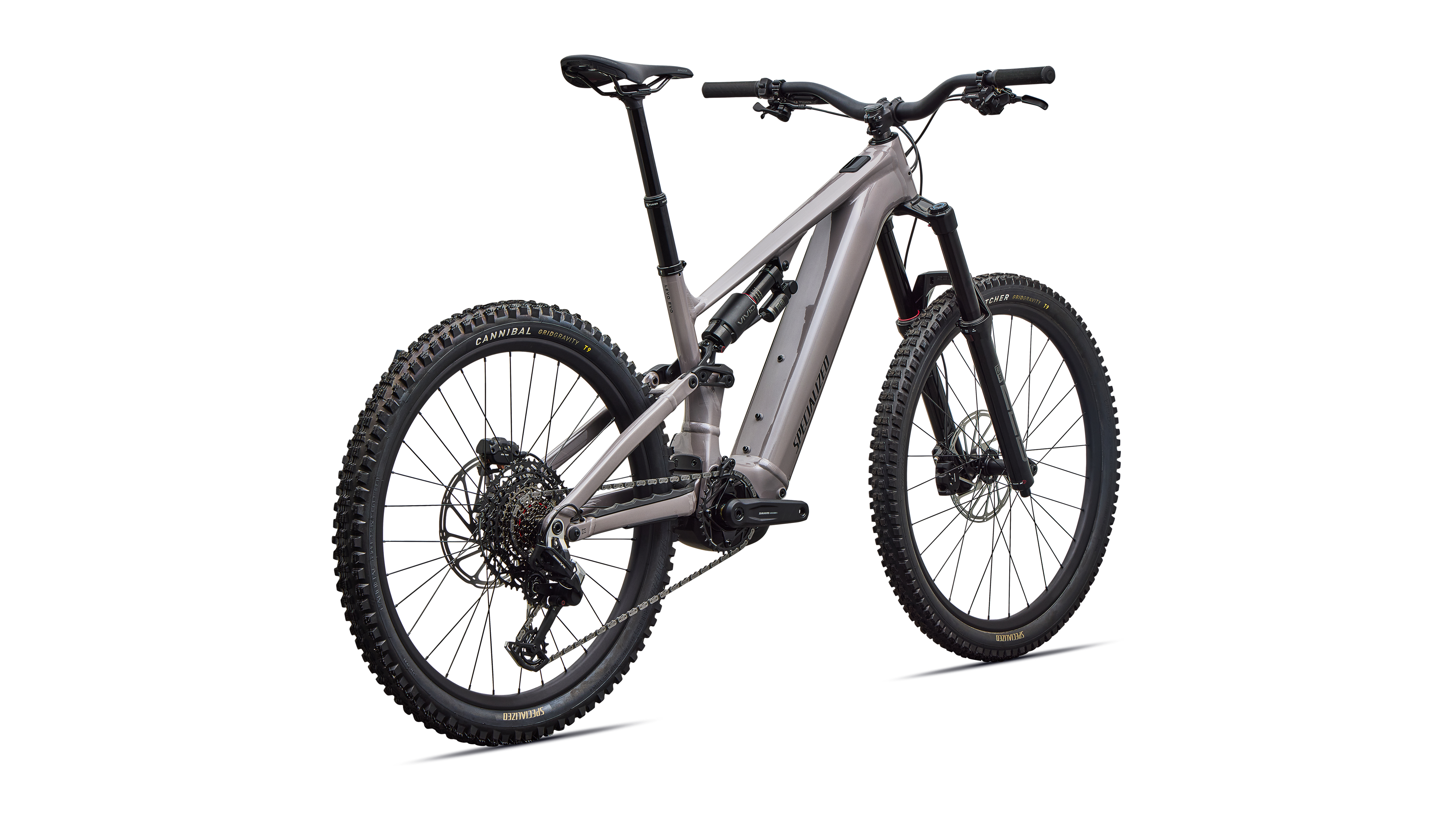

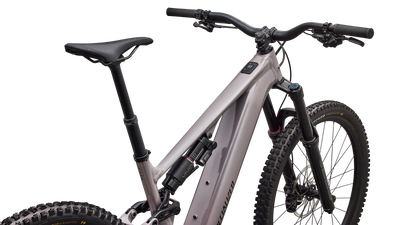

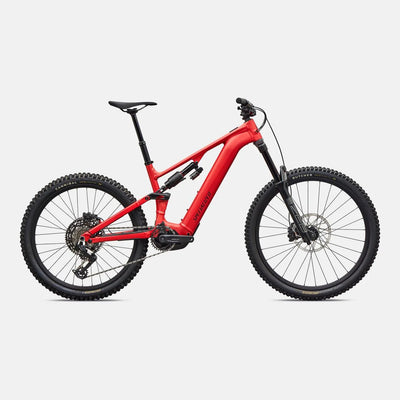

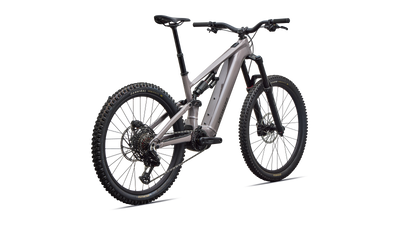

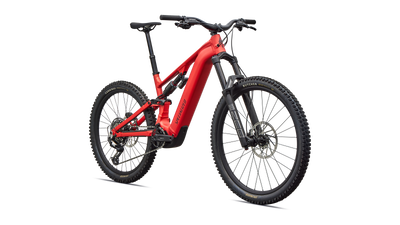

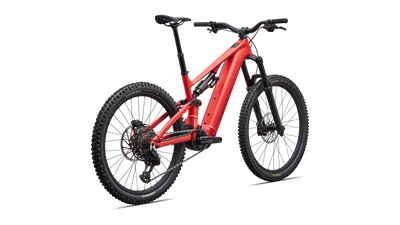

Levo 4 EVO Comp Alloy
95227-5402
Pairs well with
Pickup available from our South Melbourne Showroom
Free Shipping on Orders over $200, excludes bikes.
Levo 4 EVO Comp Alloy
Technical Specifications
Description
E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame - Levo EVO M5 alloy frame, Geo Adj & SWAT Storage
Suspension - Fork: 180mm RockShox Zeb Select
Shock: Vivid Select Air Linear
Drivetrain - SRAM Eagle 90 T-Type
Wheels - Sp[ecialized Alloy Wheels
Frameset
Frame Levo 4 alloy frame, 170mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
Seat Binder Alloy, 38.6mm
SWAT SWAT Internal downtube storage
Suspension
Fork All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
Cockpit
Seat Post Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Saddle Bridge Comp, Hollow Cr-mo rails 155/143
Stem Alloy Trail Stem, 35mm bar bore
GripsSpecialized Trail Grips
Handlebars Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Brakes
Front Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Rear Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
Shift Levers SRAM Eagle 90T, single click, with MMX
Rear Derailleur SRAM Eagle 90 T-Type
Cassette SRAM 12-speed,10-52t
Crankset SRAM S1000 Alloy crank, ISIS interface, 155mm length
Chain SRAM 70 Transmission 12-Speed Flattop Chain
Chain Ring SRAM 34t T-Type chainring, 104 BCD, steel
eBike
Battery Specialized Turbo 840Wh integrated battery pack
Charger Specialized 4amp charger
Motor Specialized 3.1 Motor, 105Nm torque, 810W power
UI Remote Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Wheels & Tyres
Front Hub Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear hub Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
Butcher, GRID Gravity, T9, TLR, 29x2.4" Butcher, GRID Gravity, T9, TLR, 29x2.4"
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4" Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Spokes DT Swiss Elemental
Tubes Standard, Presta Valve
Accessories
