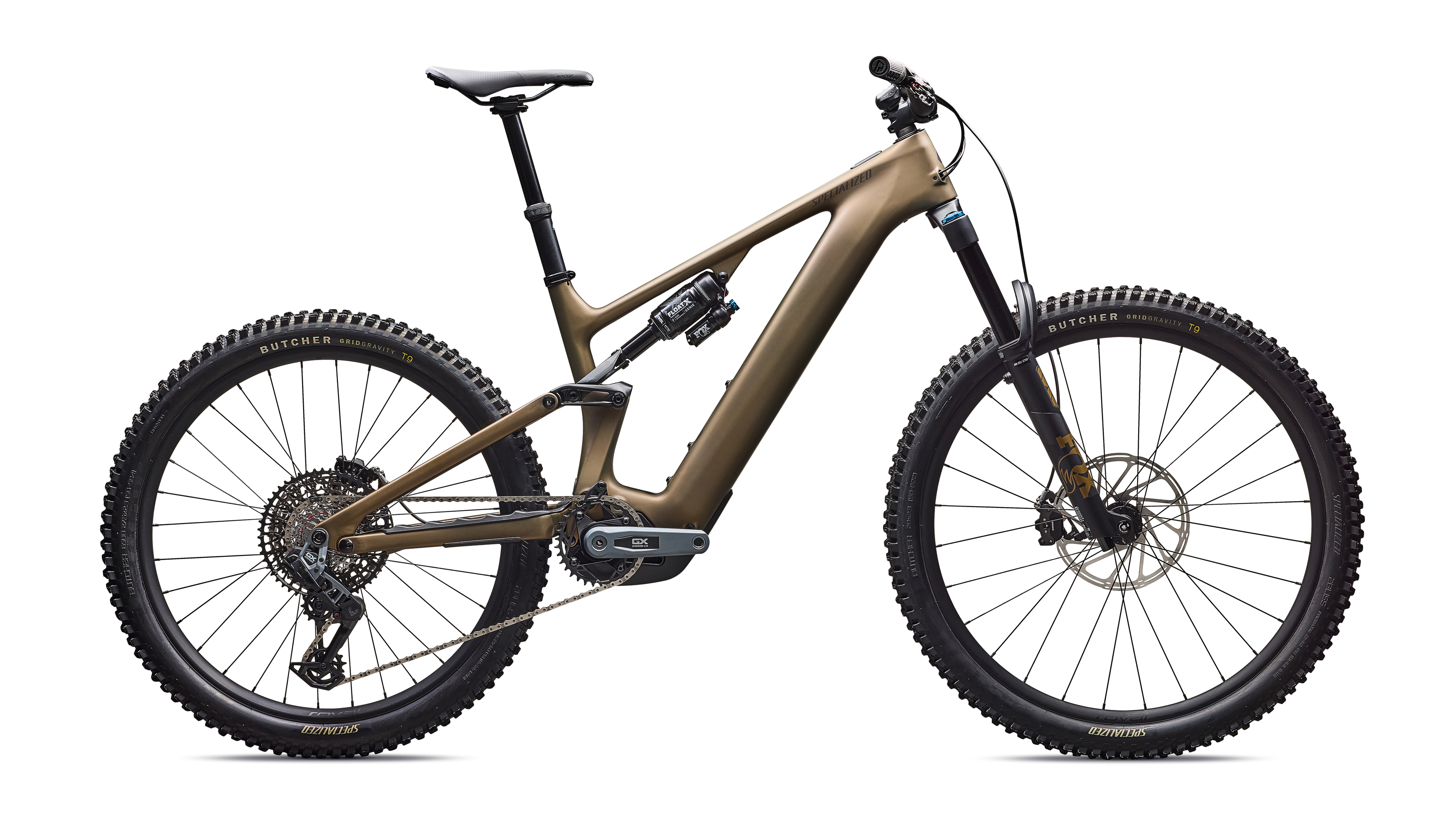

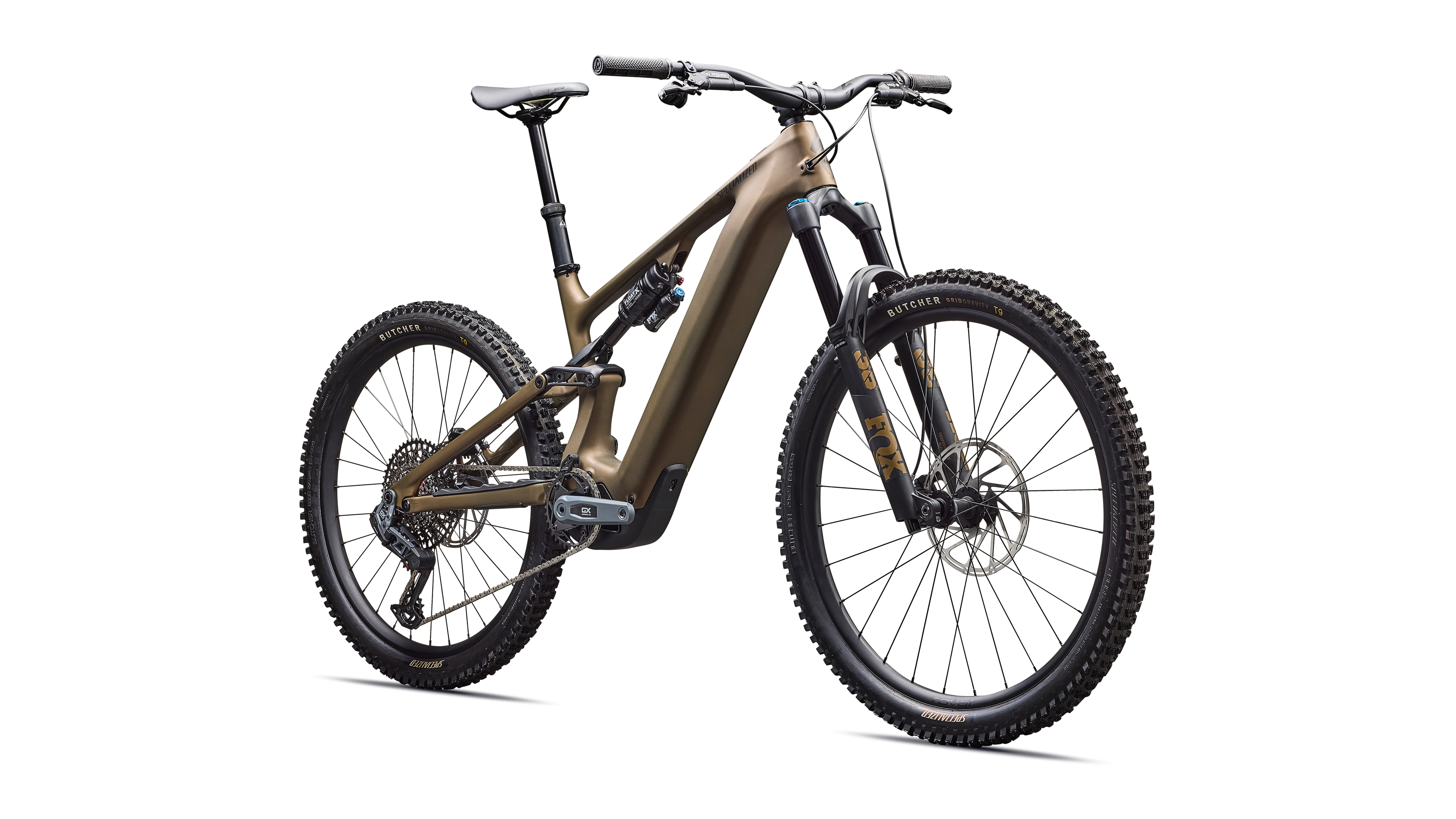

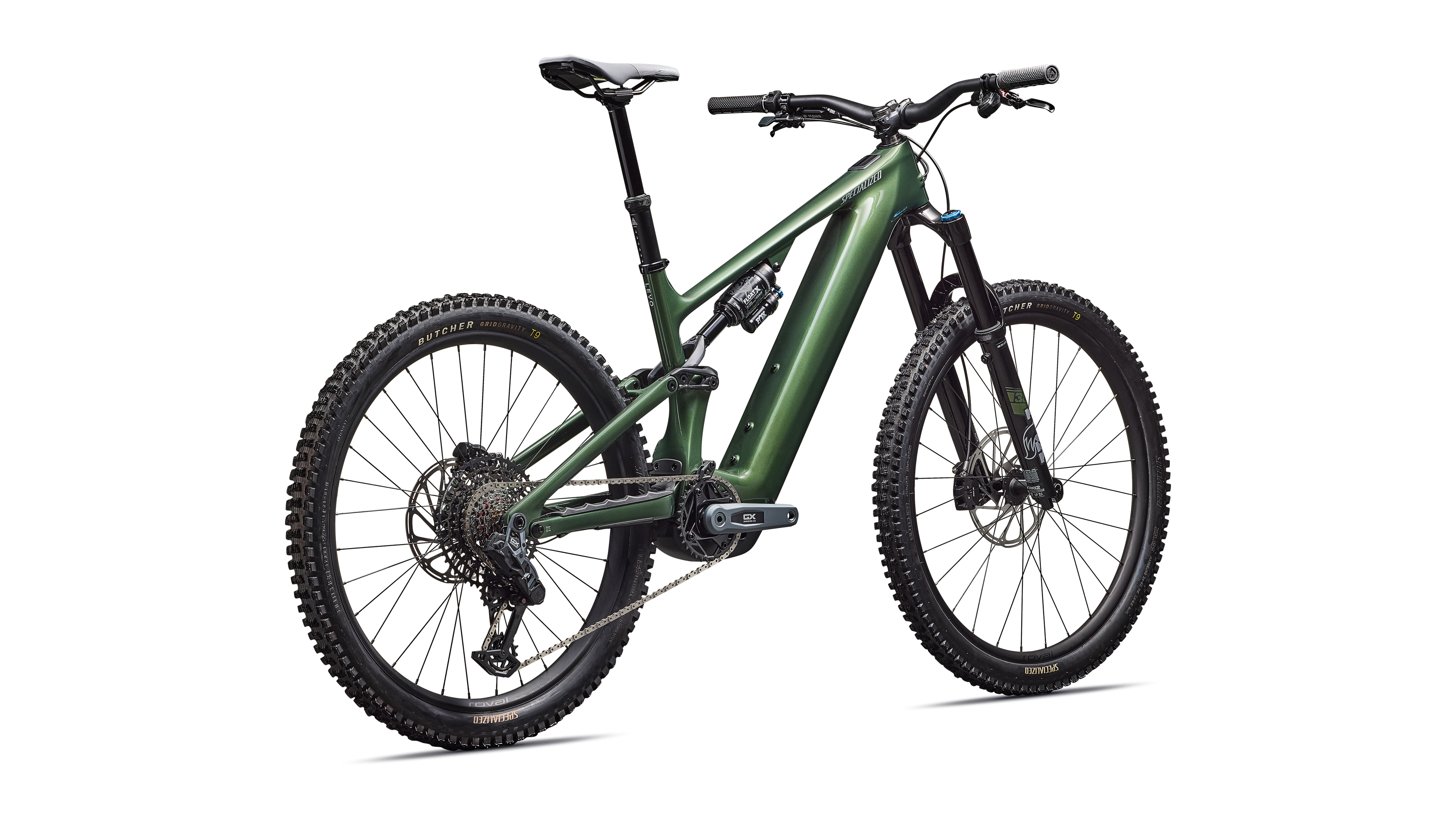

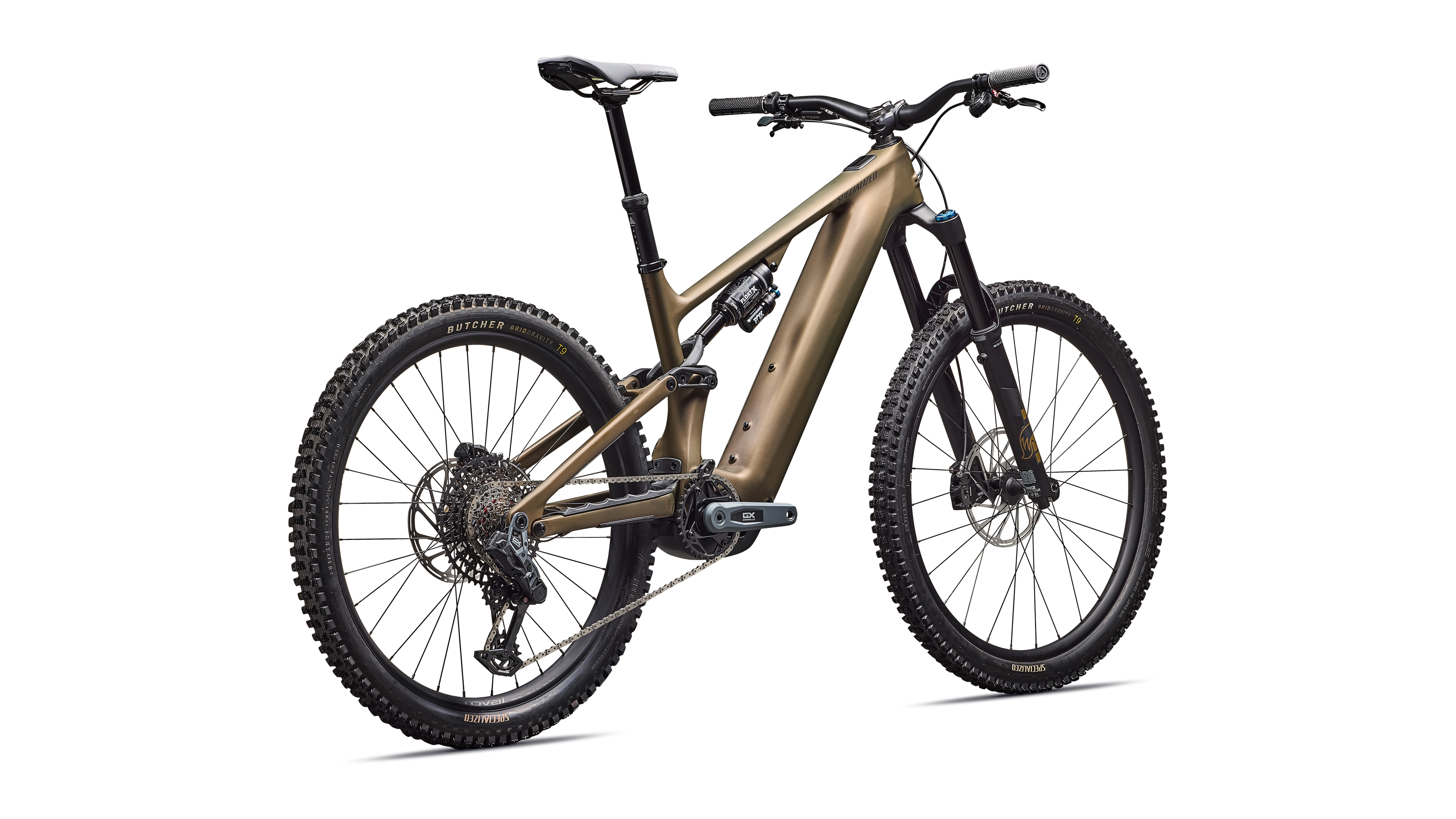

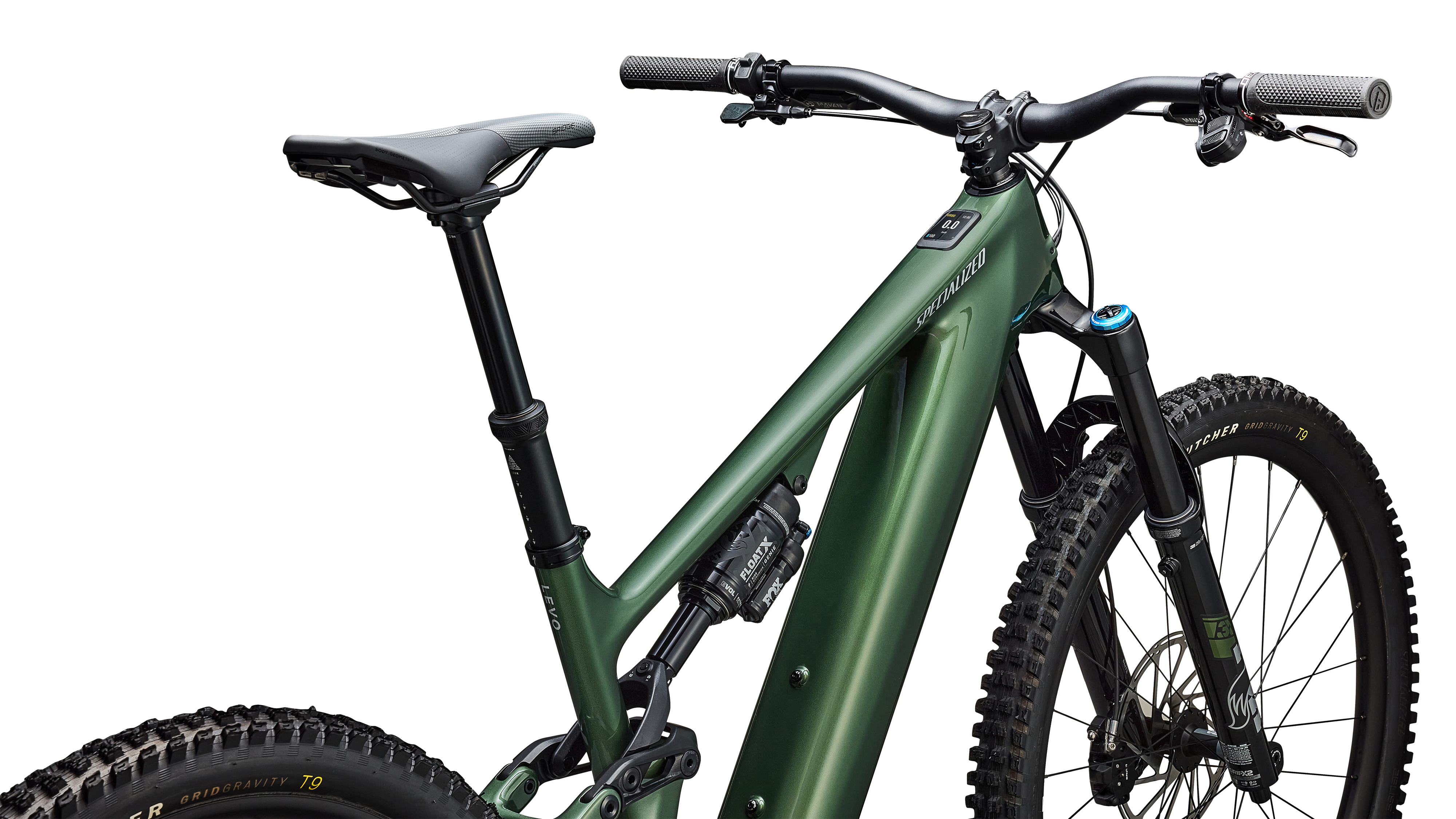

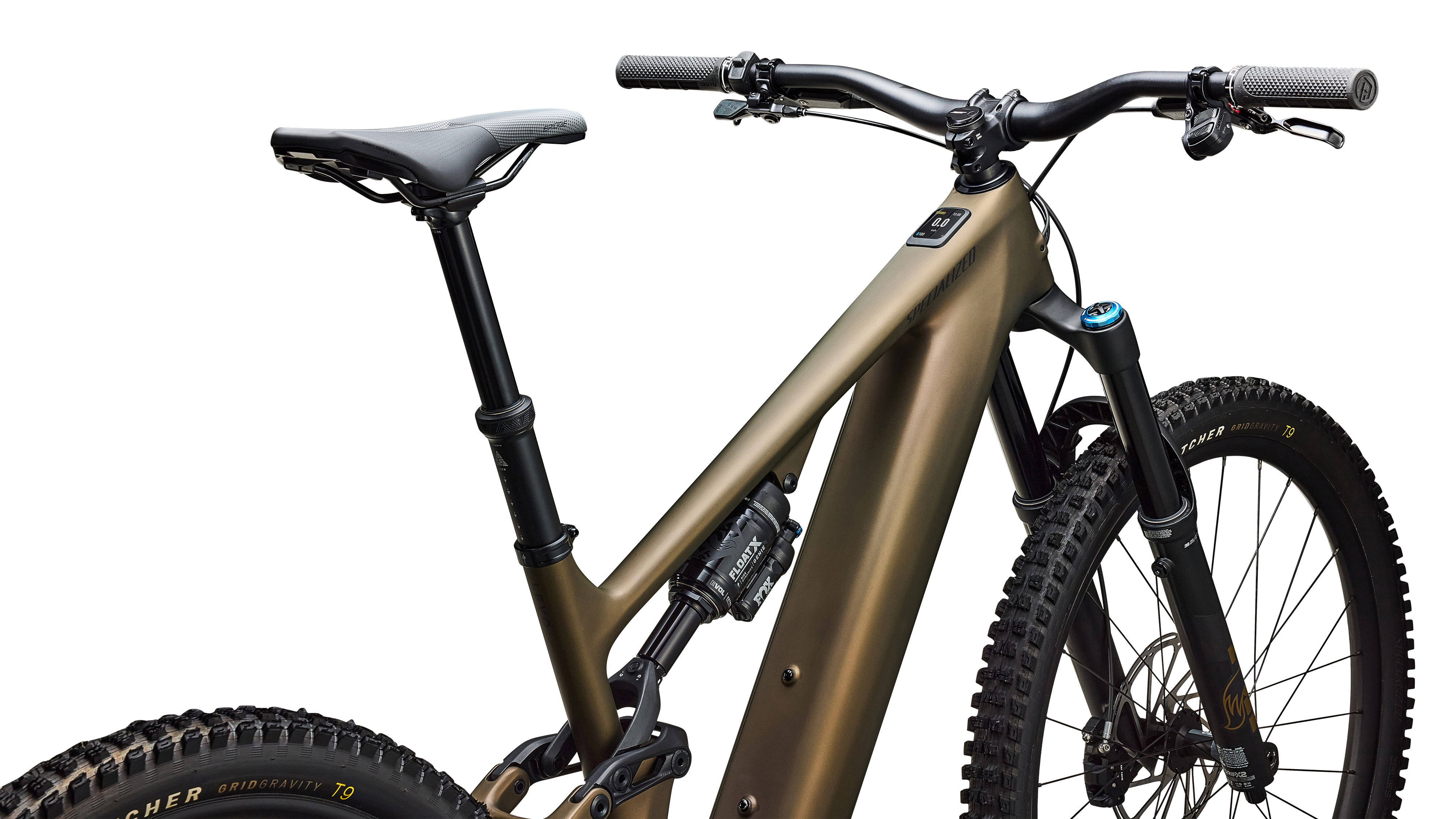

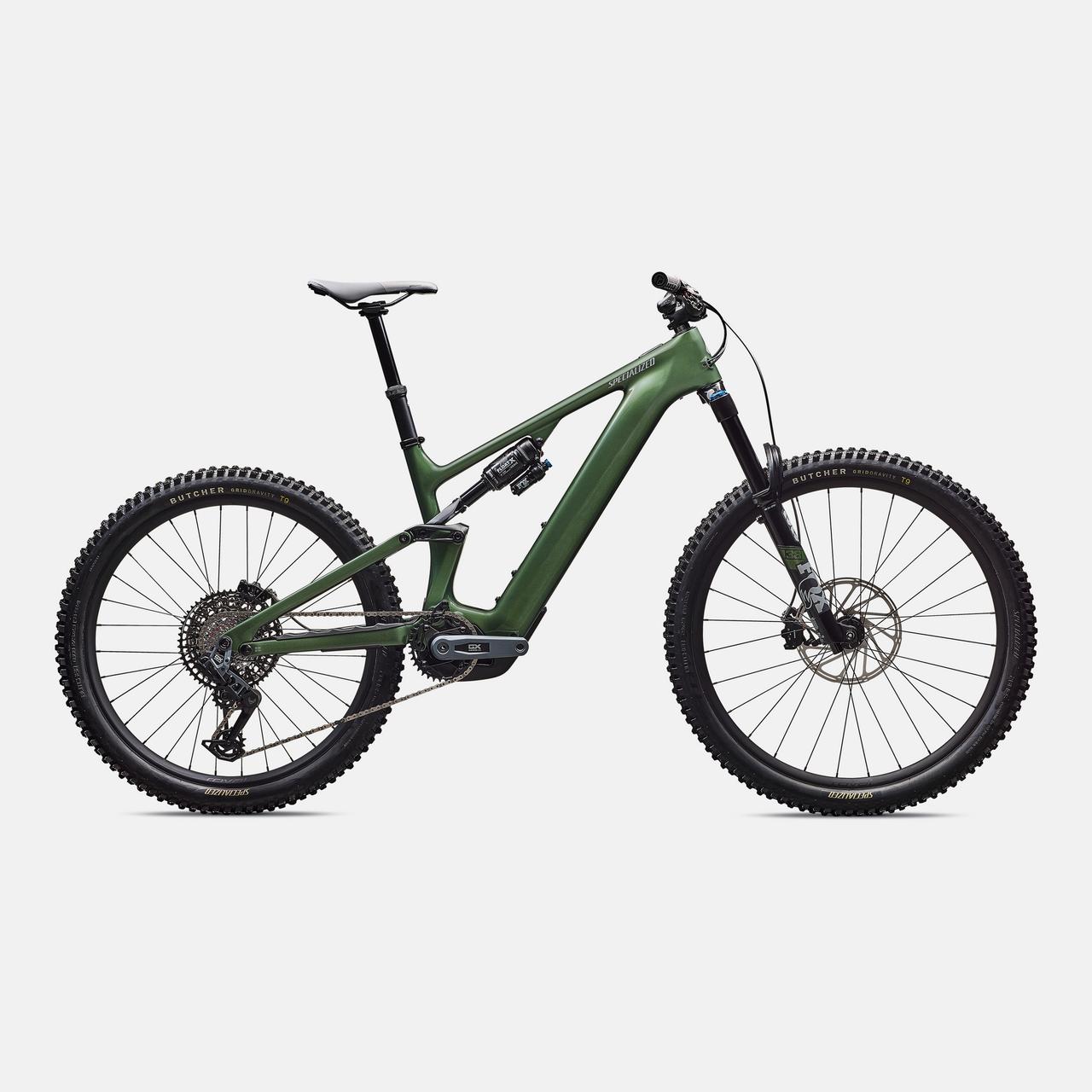

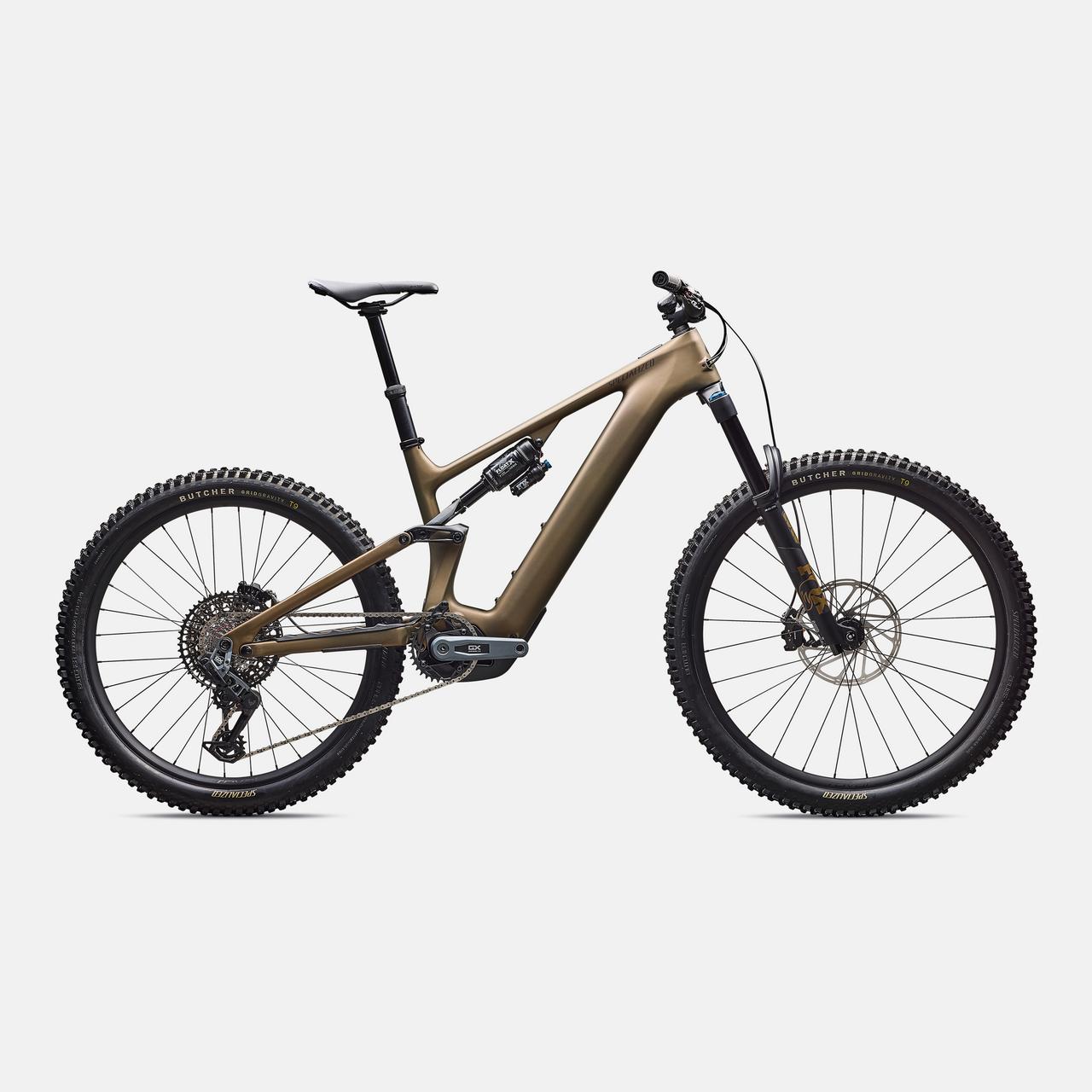

Turbo Levo 4 Expert
E-System - Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension - Front: 160mm FOX 38 Performance Elite GRIPX2, Rear: 150mm GENIE - FOX FLOAT X Performance Elite
Drivetrain - SRAM GX Eagle T-Type AXS
Wheels - Roval Traverse Alloy / DT 370
- Free Shipping on Orders over $200, excludes bikes.
- Returns must be request within 48 hours of delivery for a refund and within 30 days for a Store Credit or Exchange.
- All Sale items are final sale.
Find out more about our Shipping & Return policies in our FAQs.
Any questions about this product?Or do you need any help ordering? Feel free to get in touch with our team in store at hello@bikenow.com.au or (03) 9696 8588
We're happy to help!
Technical Specifications
Frameset
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
SWAT
SWAT internal downtube storage
Suspension
Fork
FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel
Rear Shock
FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment

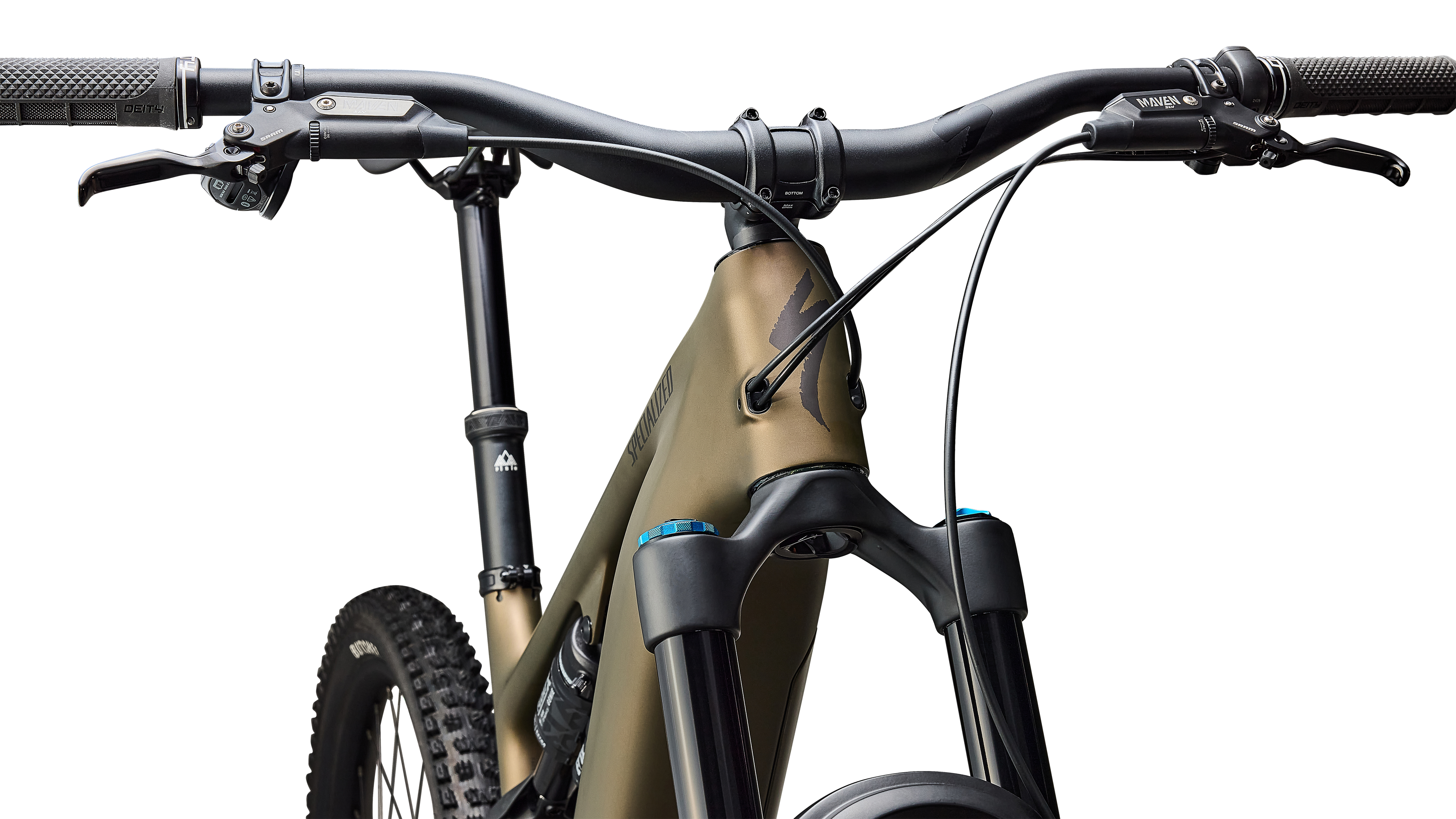

Cockpit
Seat Post
PNW Loam post w/travel adjust S2: 125mm, S3: 170mm, S4/S5/S6: 200mm
Saddle
Bridge Comp, Hollow Cr-mo rails
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity Lockjaw grips

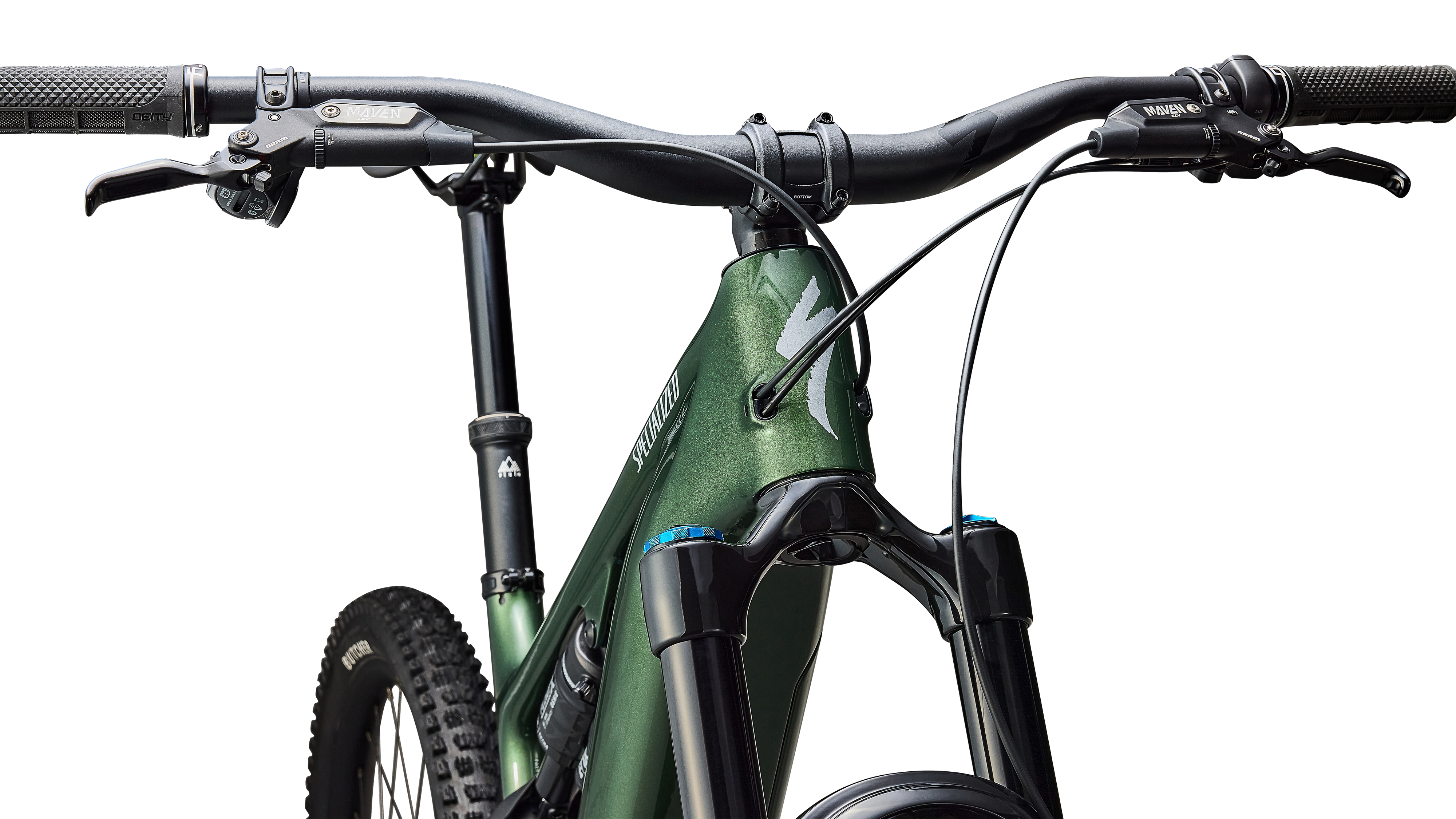

Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 780mm, S3-S5: 800mm
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Crankset
SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Chain
SRAM GX Eagle Transmission Flattop Chain
Chain Ring
SRAM 34t T-Type chainring, 104 BCD, steel
E-Bike
Battery
840wh battery
Charger
Specialized 4amp charger
Motor
All New Specialized 3.1 Motor, 101Nm torque, 666W power
UI Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Wheels & Tyres
Front Wheel
Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
Rear Wheel
Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Tubes
Standard, Presta valve
