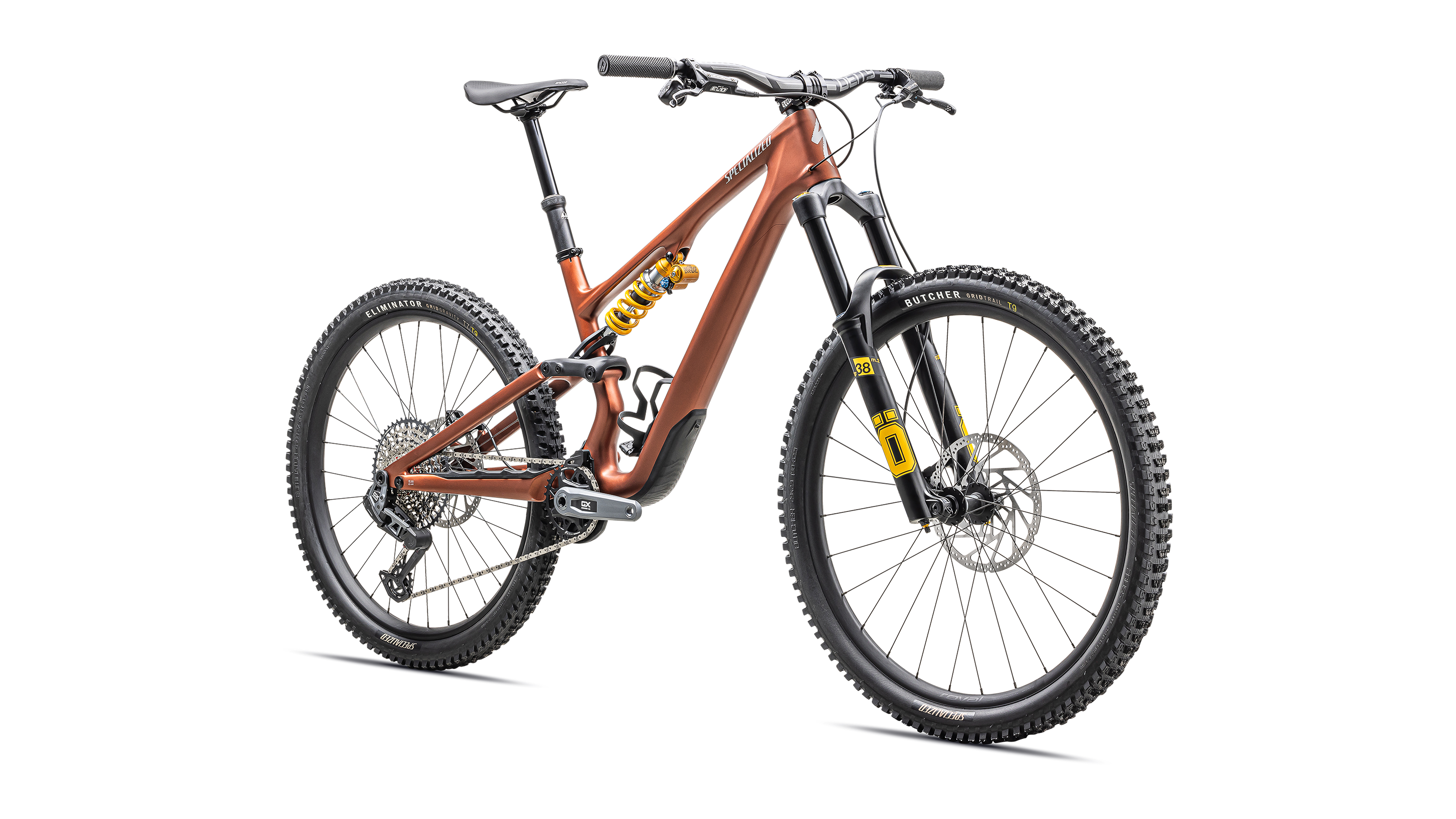

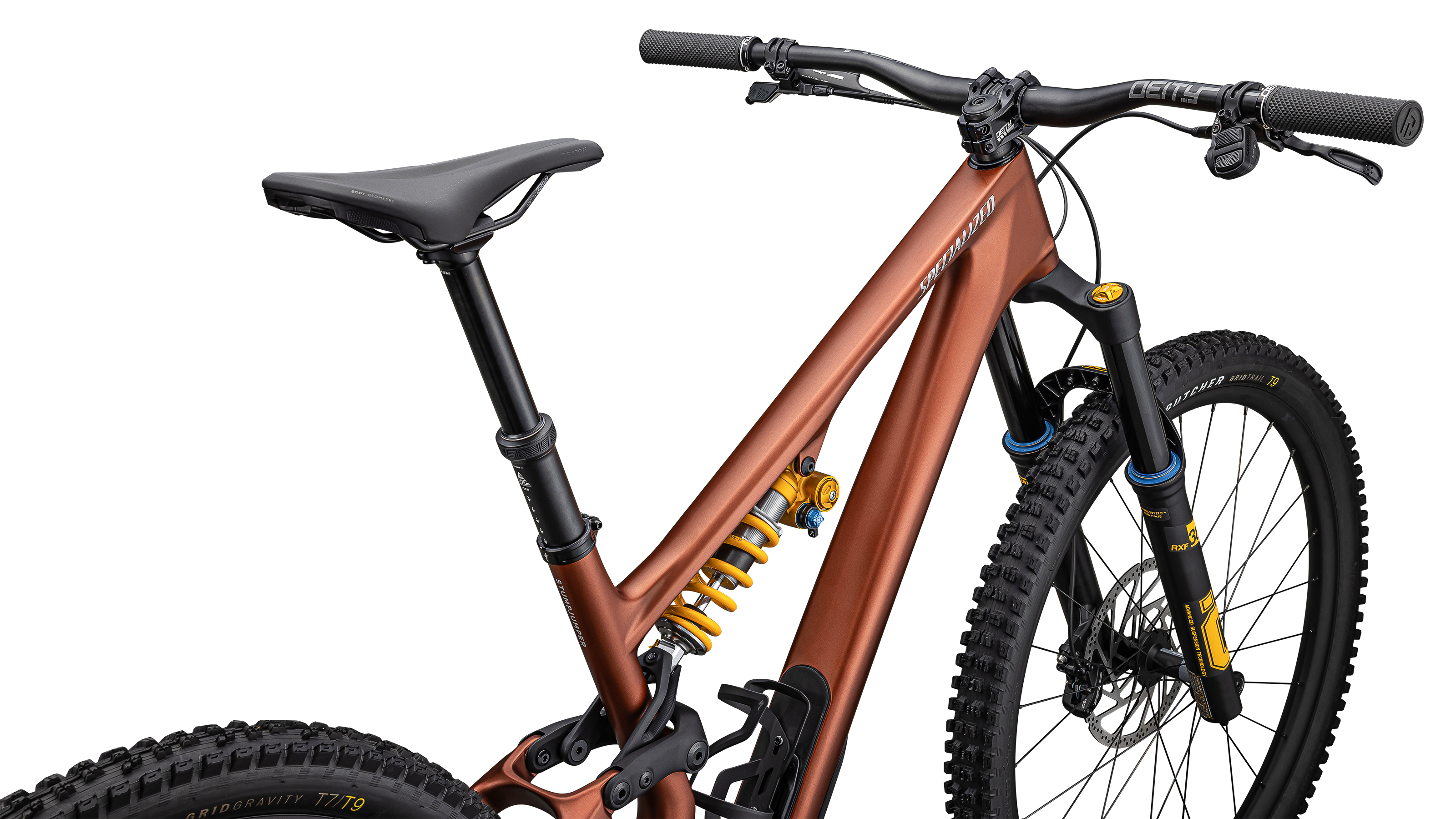

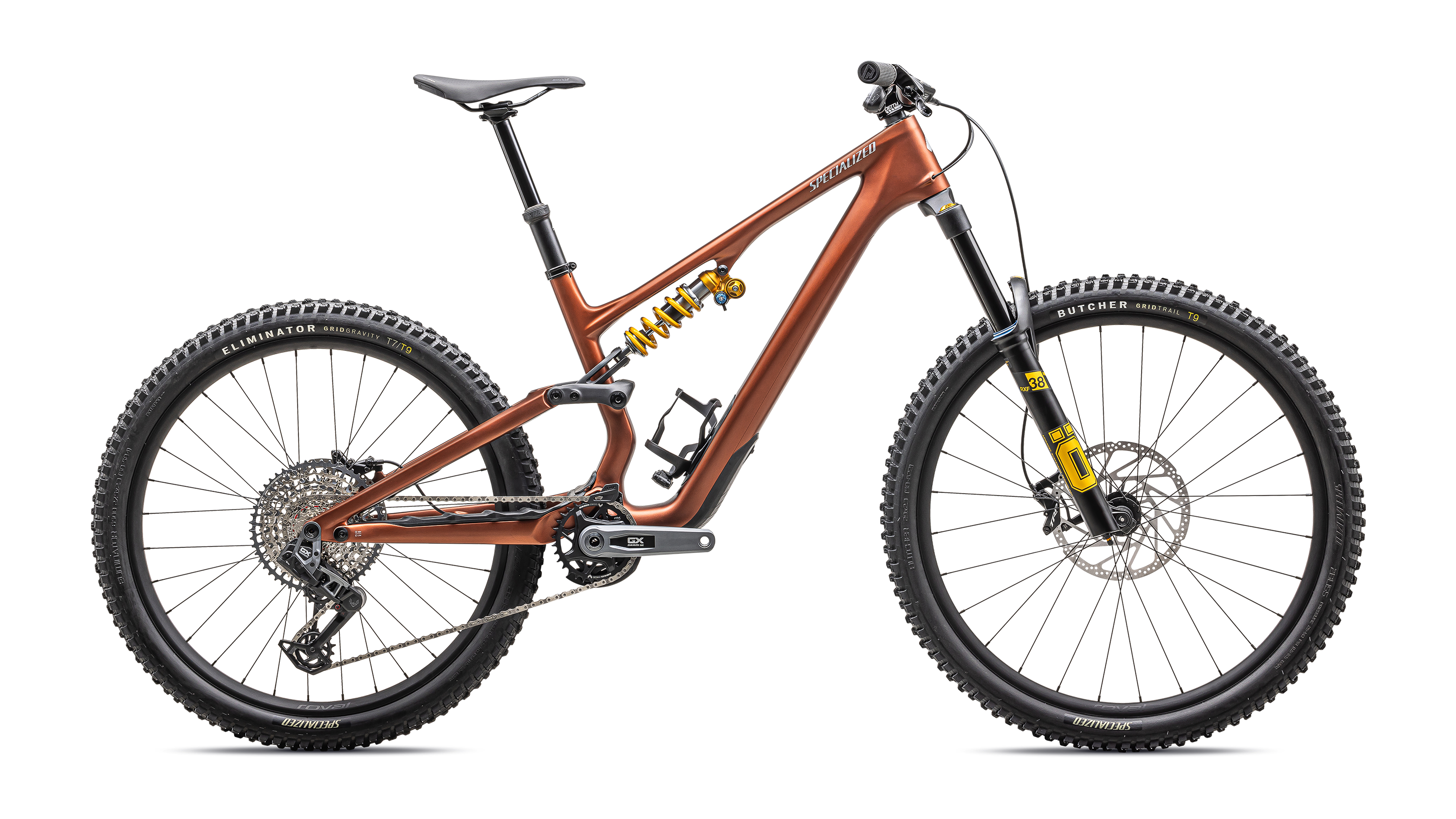

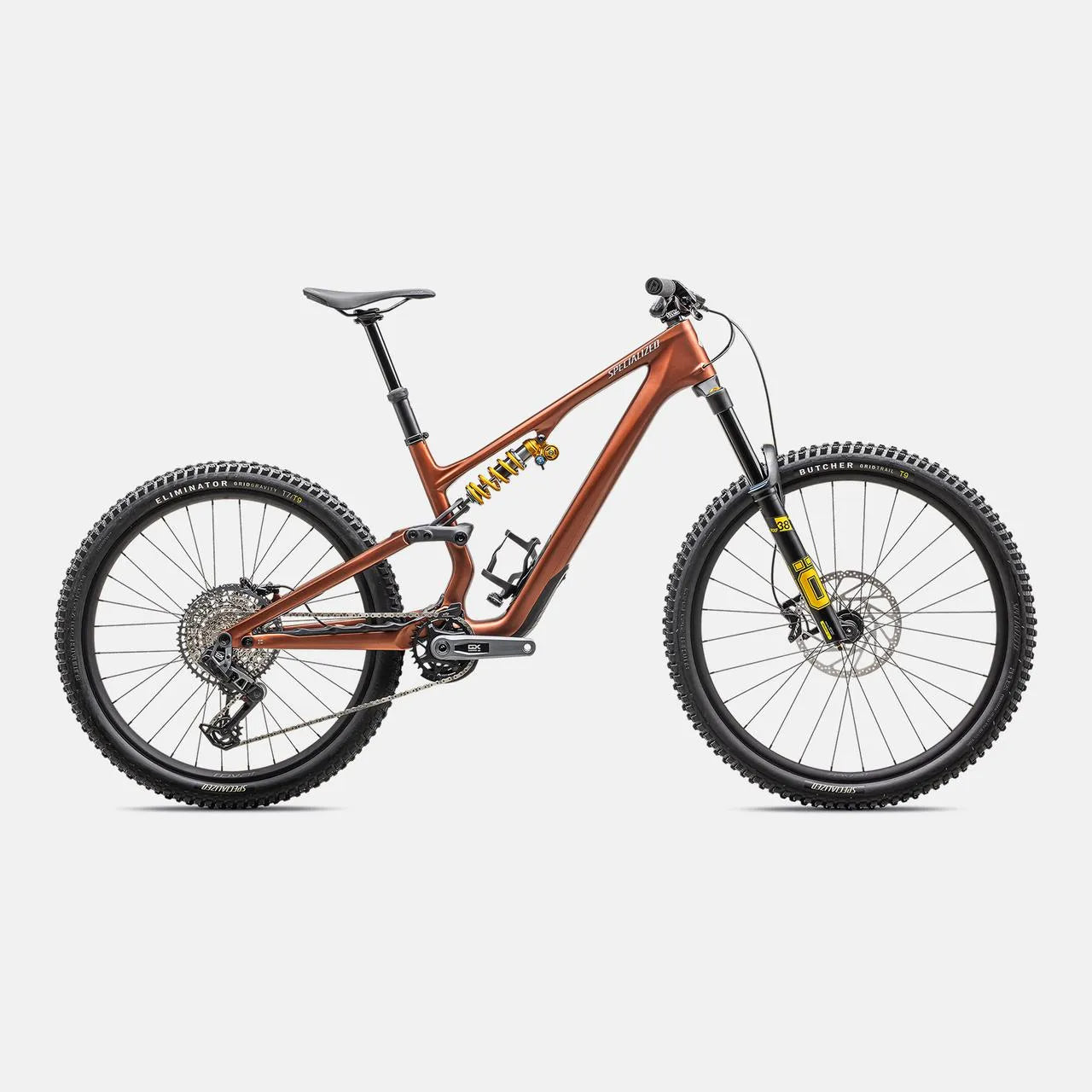

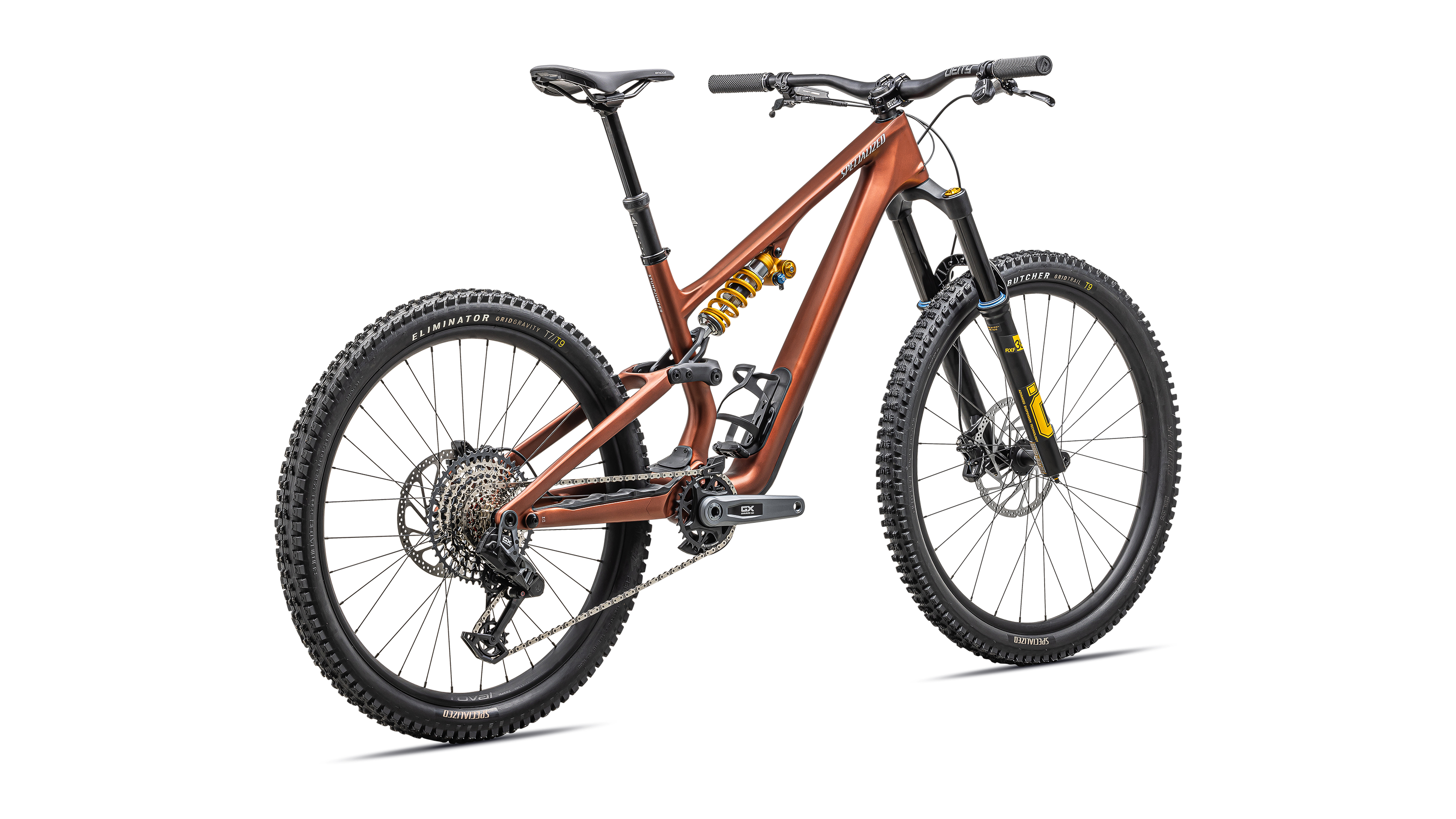

Stumpjumper 15 Öhlins Coil
93325-7504
Pairs well with
Pickup available from our South Melbourne Showroom
Free Shipping on Orders over $250, excludes bikes.

Stumpjumper 15 Öhlins Coil
Technical Specifications
Description
Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check. KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics. HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough. RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket can be fine-tuned for stability or clearance. FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the FACT 11M carbon—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding. WHEEL SIZE: All coil-sprung models come with mixed wheels. WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected. CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever. MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered. Lightweight FACT 11m carbon chassis and rear-end
Incredibly tough Roval Traverse wheels with DT Swiss 370 hub

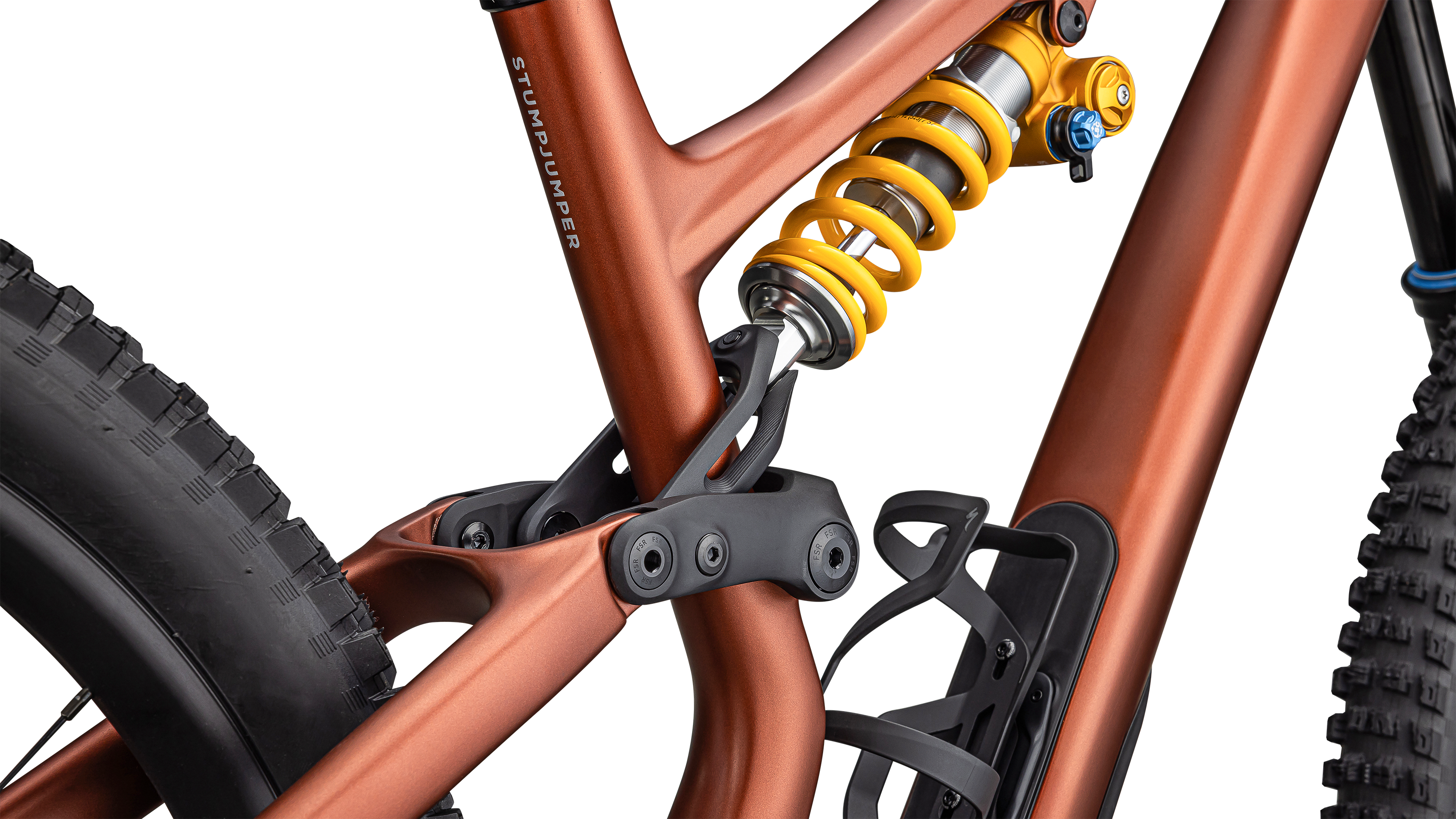

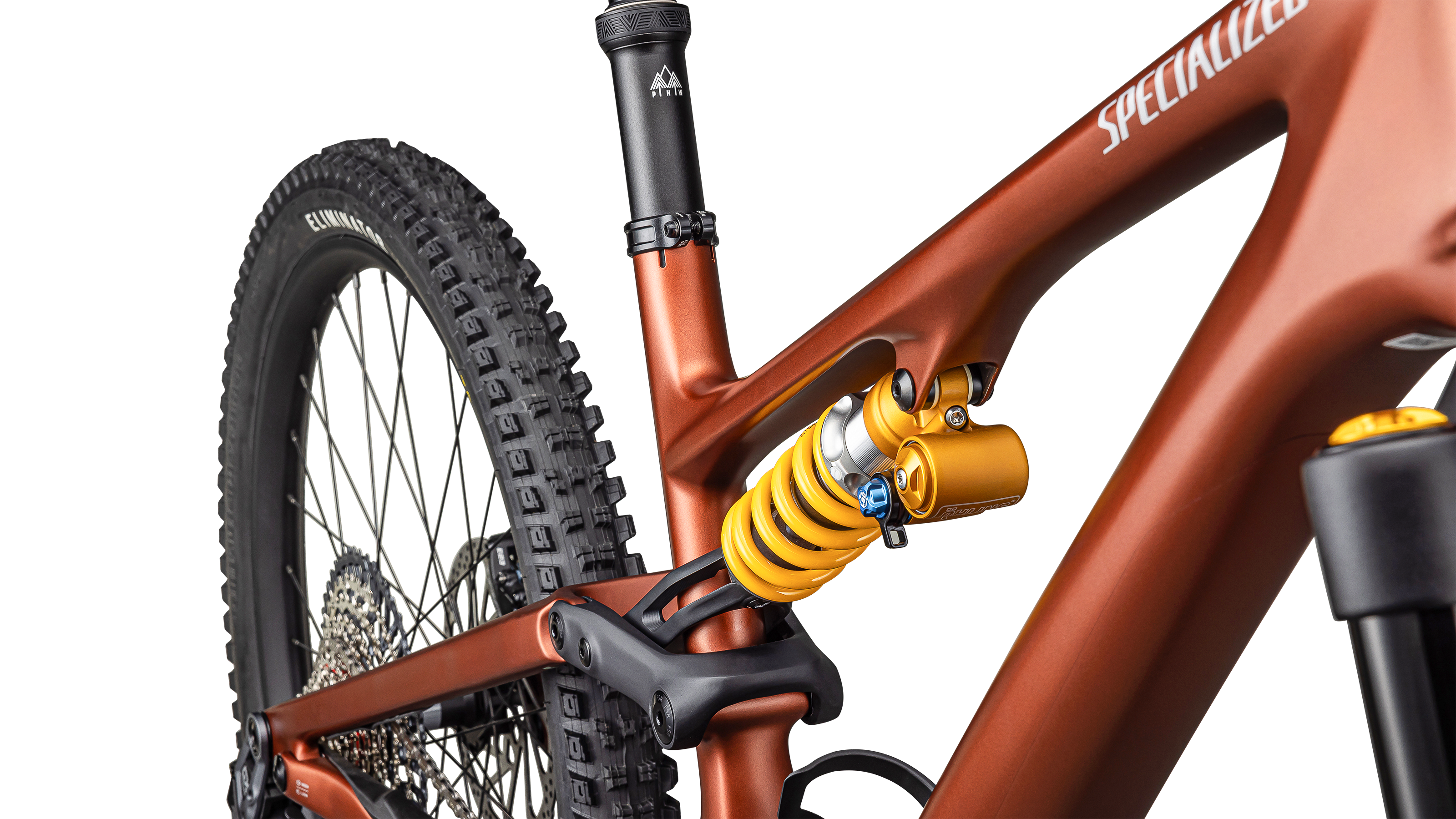

Premium suspension support from an Öhlins TTX 22 M Coil, Ride Dynamics tuned
Plow through anything with a 160mm Öhlins RXF38 M.2 29 fork
Reliable and smooth shifting from SRAM GX Eagle AXS T-Type drivetrain
Powerful brakes with great hand feel thanks to TRP DH-R EVO 4-piston brakes
Adjustable travel PNW LOAM dropper post
Lifetime replacement of suspension pivot bearings to the original owner
Compatible with electronic drivetrains only
Frameset
Frame FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder Alloy, 38.6mm
SWAT SWAT 4.0 internal downtube storage
Suspension
Fork Öhlins RXF38 M.2 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 15x110mm, 44mm offset, 160mm of travel
Cockpit
Seat Post PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm
Saddle Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm
Stem Deity, 35mm clamp, 35mm length
GripsDiety, Supracush, Black

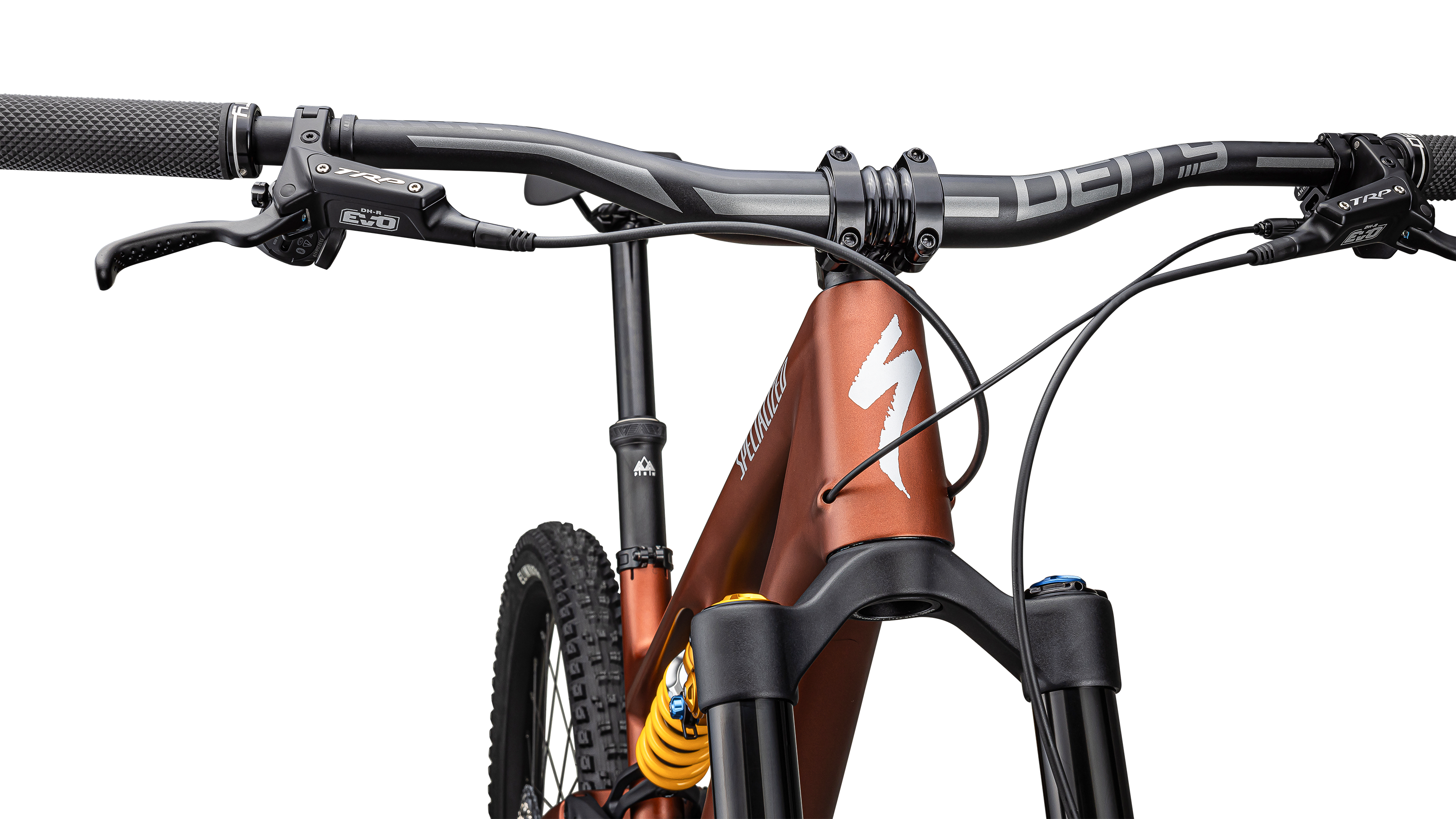

Handlebars Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise
Brakes
Front Brake TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm
Rear Brake TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm
Drivetrain
Shift Levers SRAM AXS POD Controller
Rear Derailleur SRAM GX Eagle Transmission Derailleur
Cassette SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Crankset SRAM GX Eagle Crankset, 32T ring, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm
Chain SRAM GX Eagle Transmission Flattop Chain
Bottom Bracket SRAM DUB, BSA 73mm Wide, Threaded
Wheels & Tyres
Front Hub DT Swiss 370, 15x110mm, 28h
Rear hub DT Swiss 370, 12x148mm, 32h
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3" Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"
Spokes Sapim Force
Tubes Standard, Presta valve
Accessories
