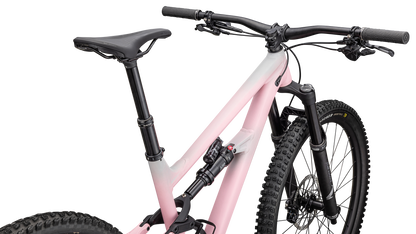

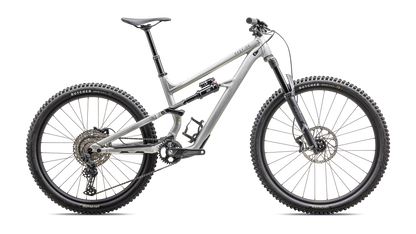

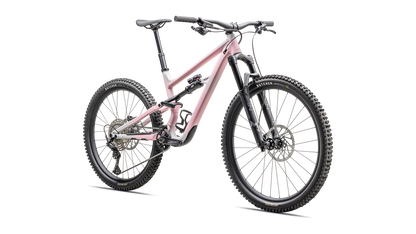

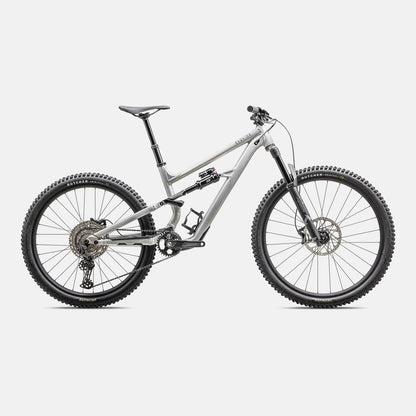

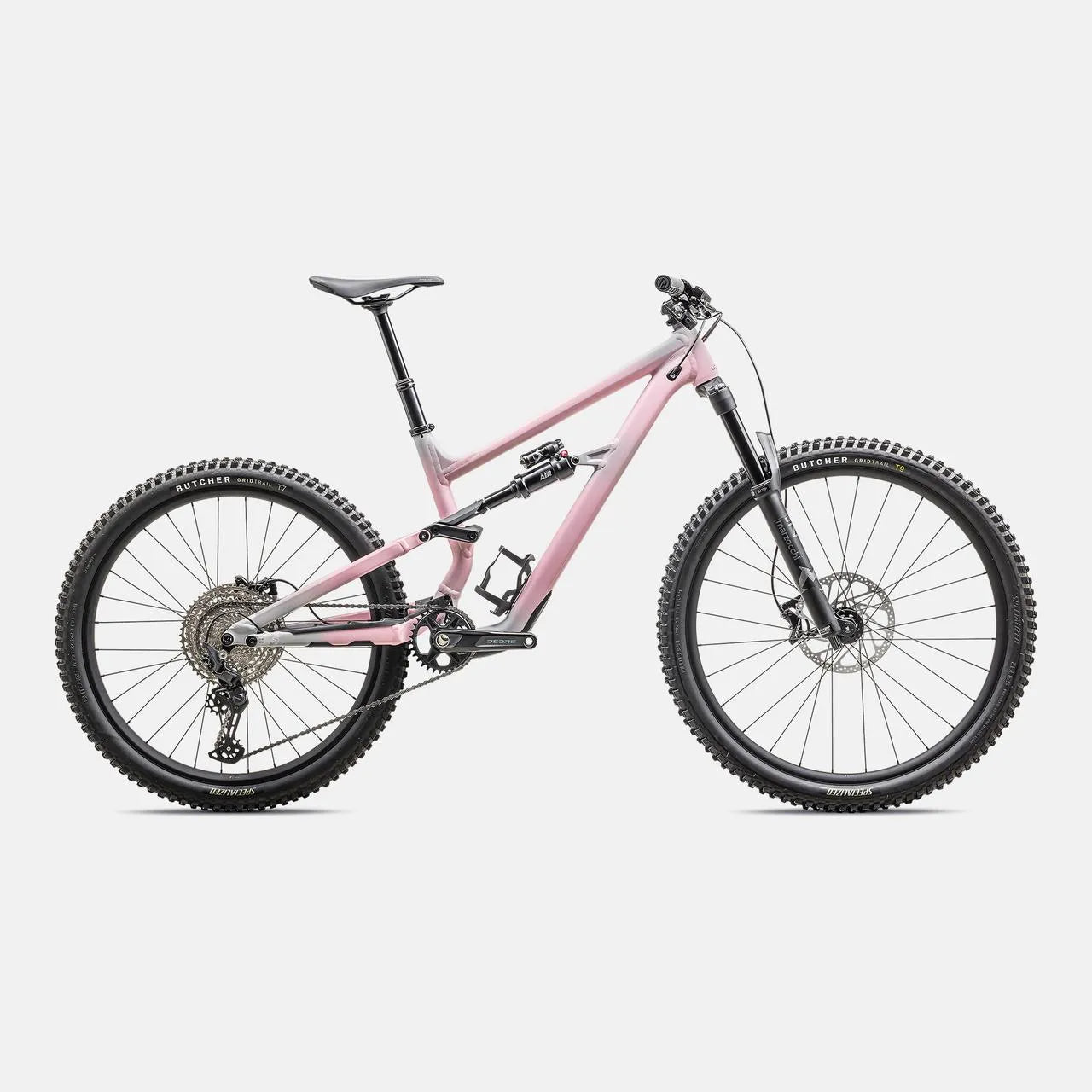

STATUS 2 140
93723-7204
Pairs well with
Pickup available from our South Melbourne Showroom
Free Shipping on Orders over $200, excludes bikes.

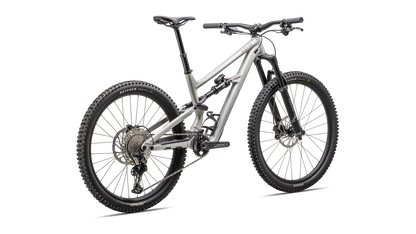

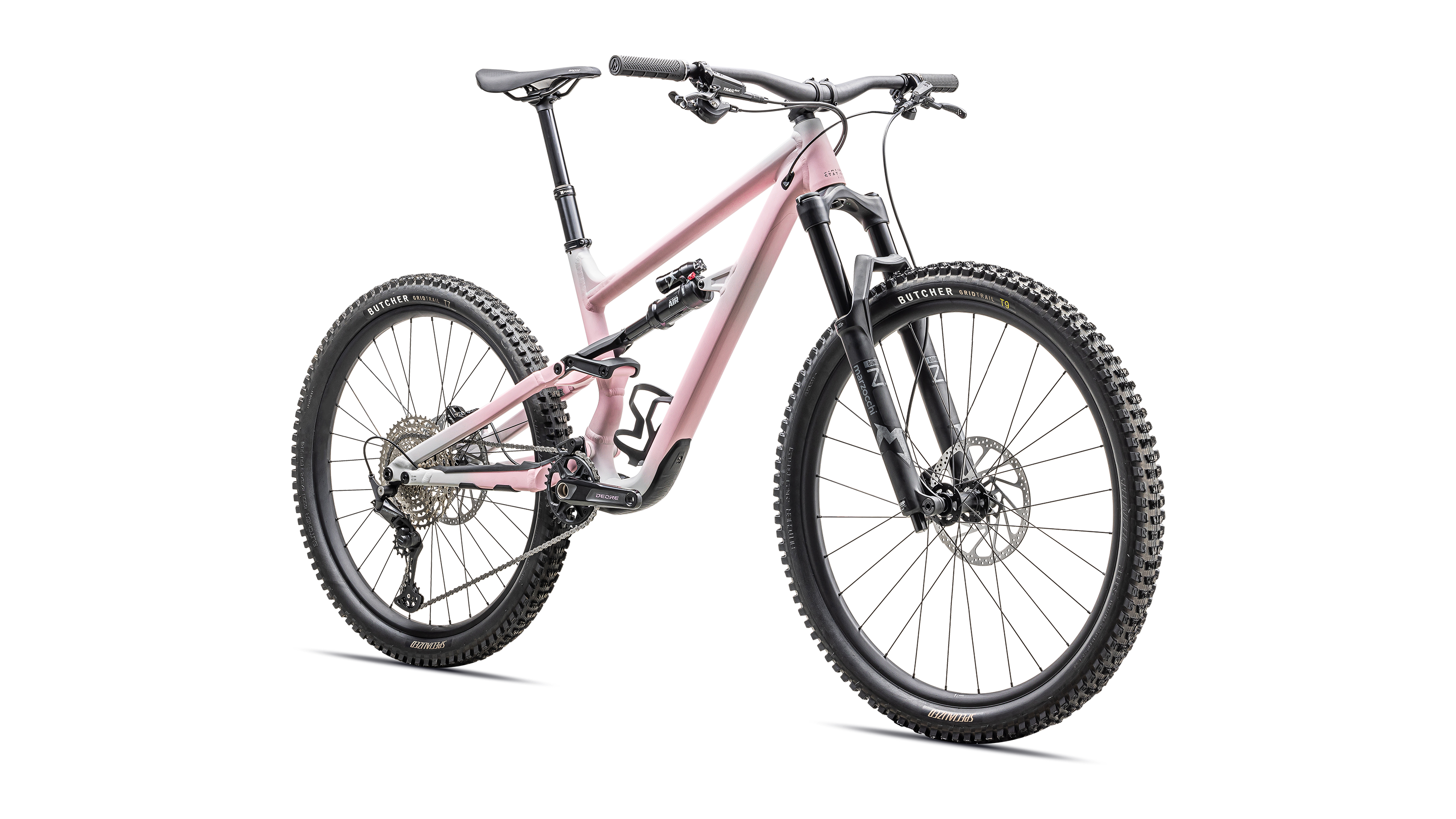

STATUS 2 140
Technical Specifications
Description
New, more durable alloy rims

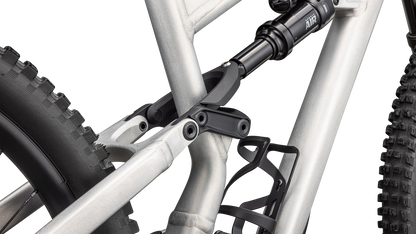

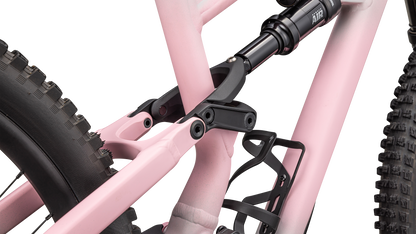

Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience
Frameset

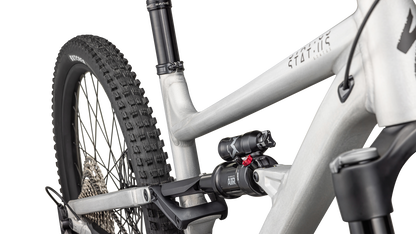

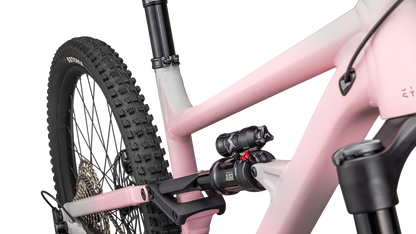

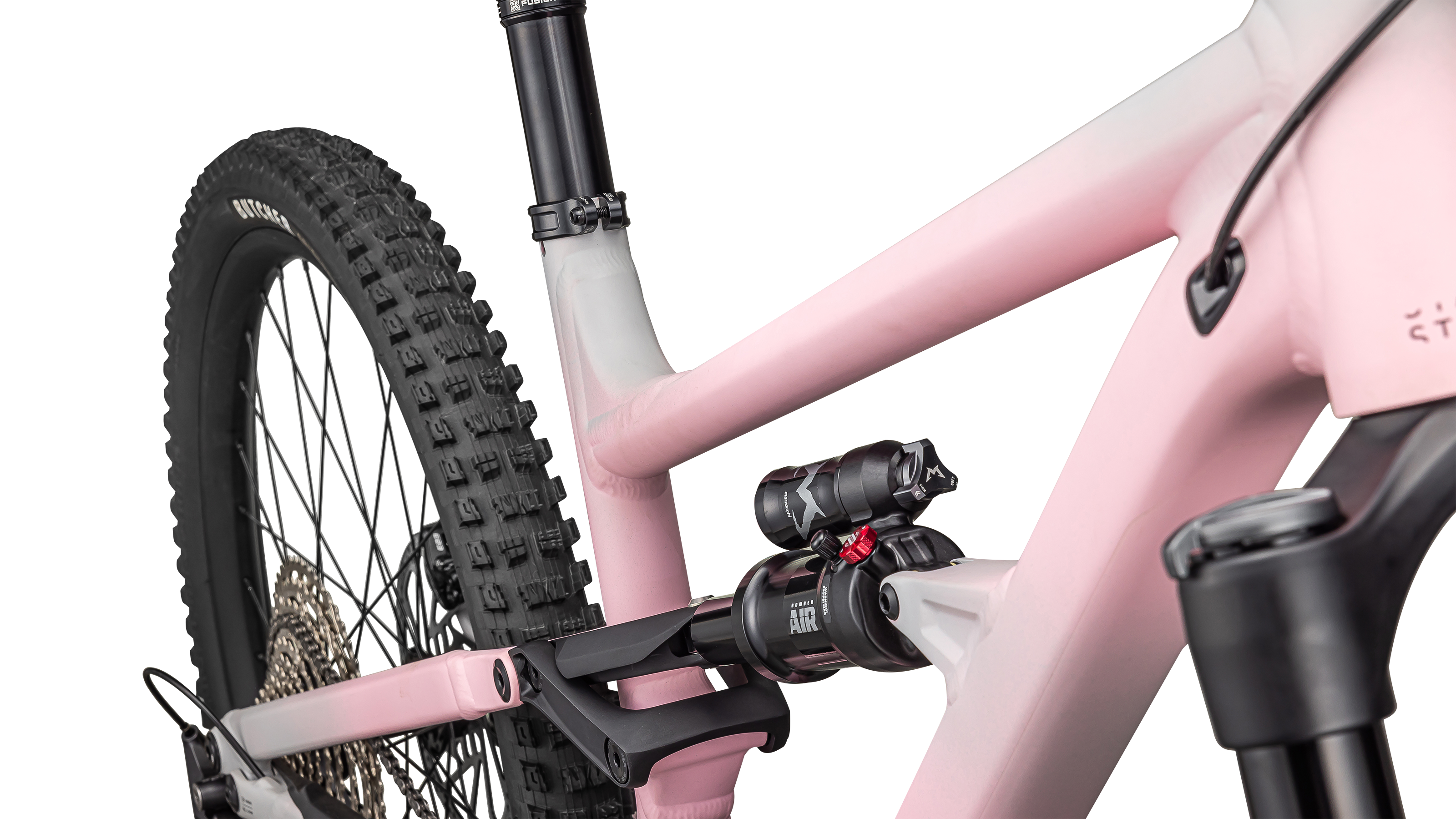

Frame M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
Seat Binder Alloy, 38.6mm
Suspension
Fork Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel
Cockpit
Seat Post X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Saddle Bridge Comp, Hollow Cr-mo rails, 143mm
Stem Alloy Trail Stem, 35mm bar bore
GripsDeity Knuckleduster

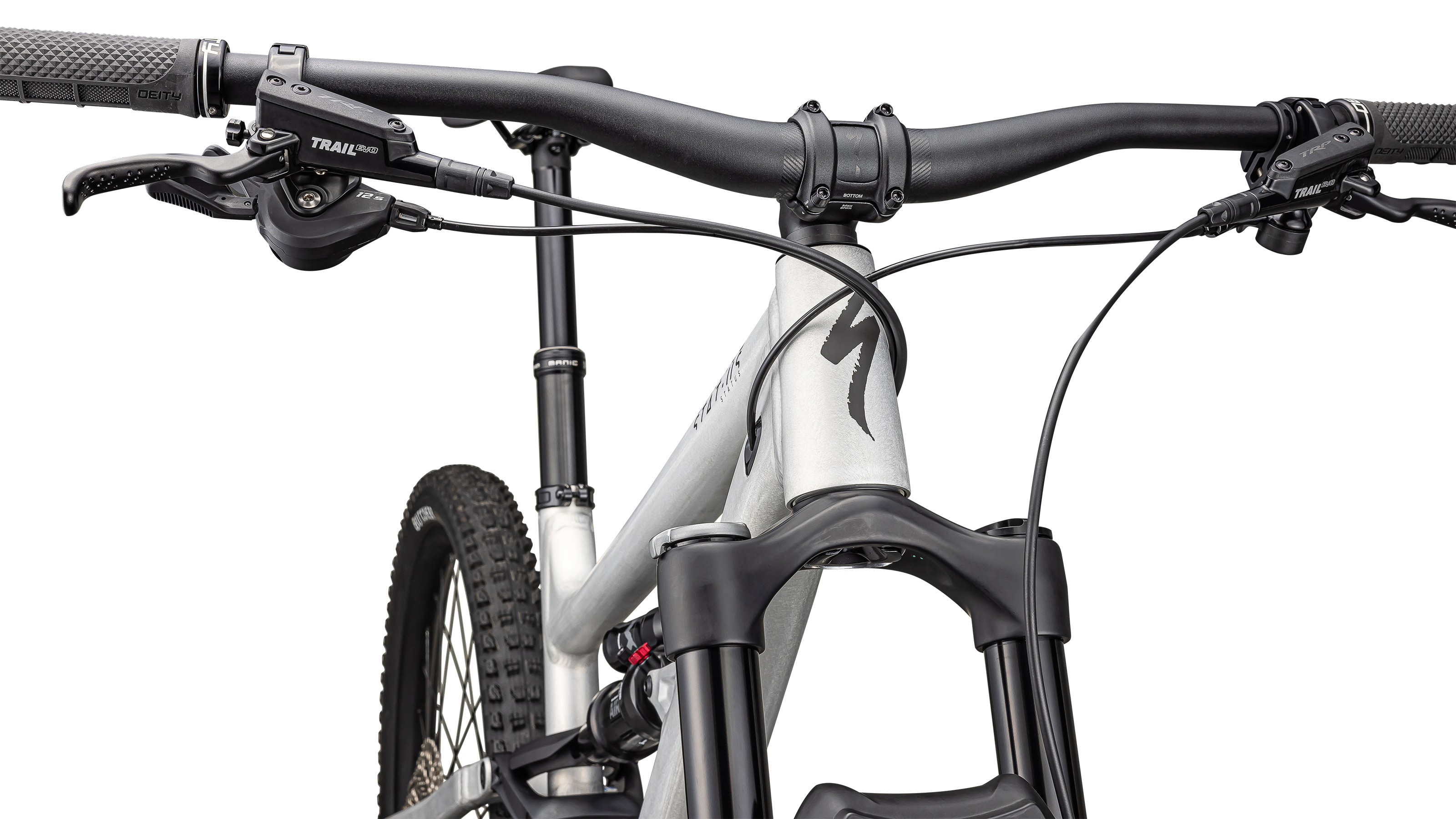

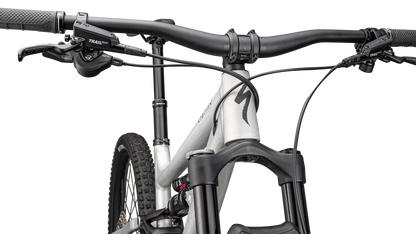

Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
Brakes
Front Brake TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Rear Brake TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Drivetrain
Shift Levers Shimano Deore, M6100, I-Spec EV, 12 speed
Rear Derailleur Shimano Deore, M6100, 12pd, Shadow Plus
Cassette Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Crankset Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm
Chain Shimano Deore M6100, 12spd
Wheels & Tyres
Front Hub Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear hub Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Spokes DT Swiss Industry
Tubes Standard, Presta valve
Accessories
