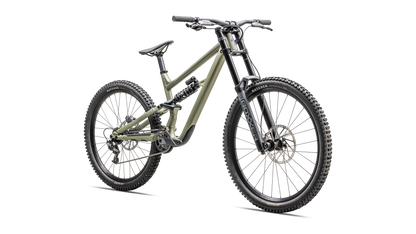

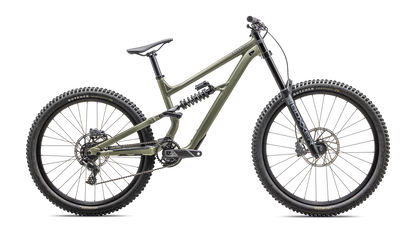

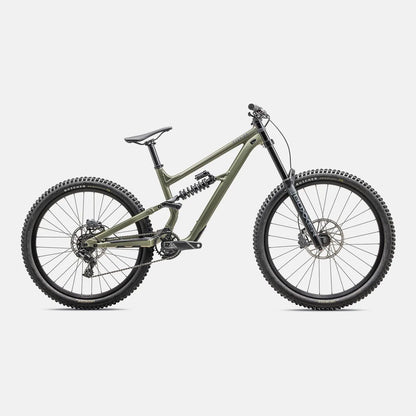

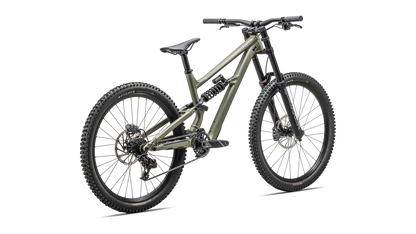

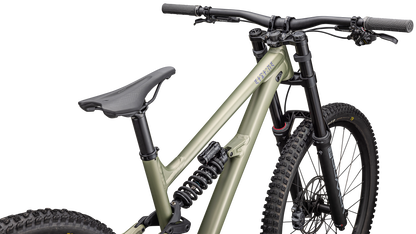

STATUS 2 170 DH
93724-7002
Pairs well with
Pickup available from our South Melbourne Showroom
Free Shipping on Orders over $200, excludes bikes.
Technical Specifications
Description
New, more durable alloy rims

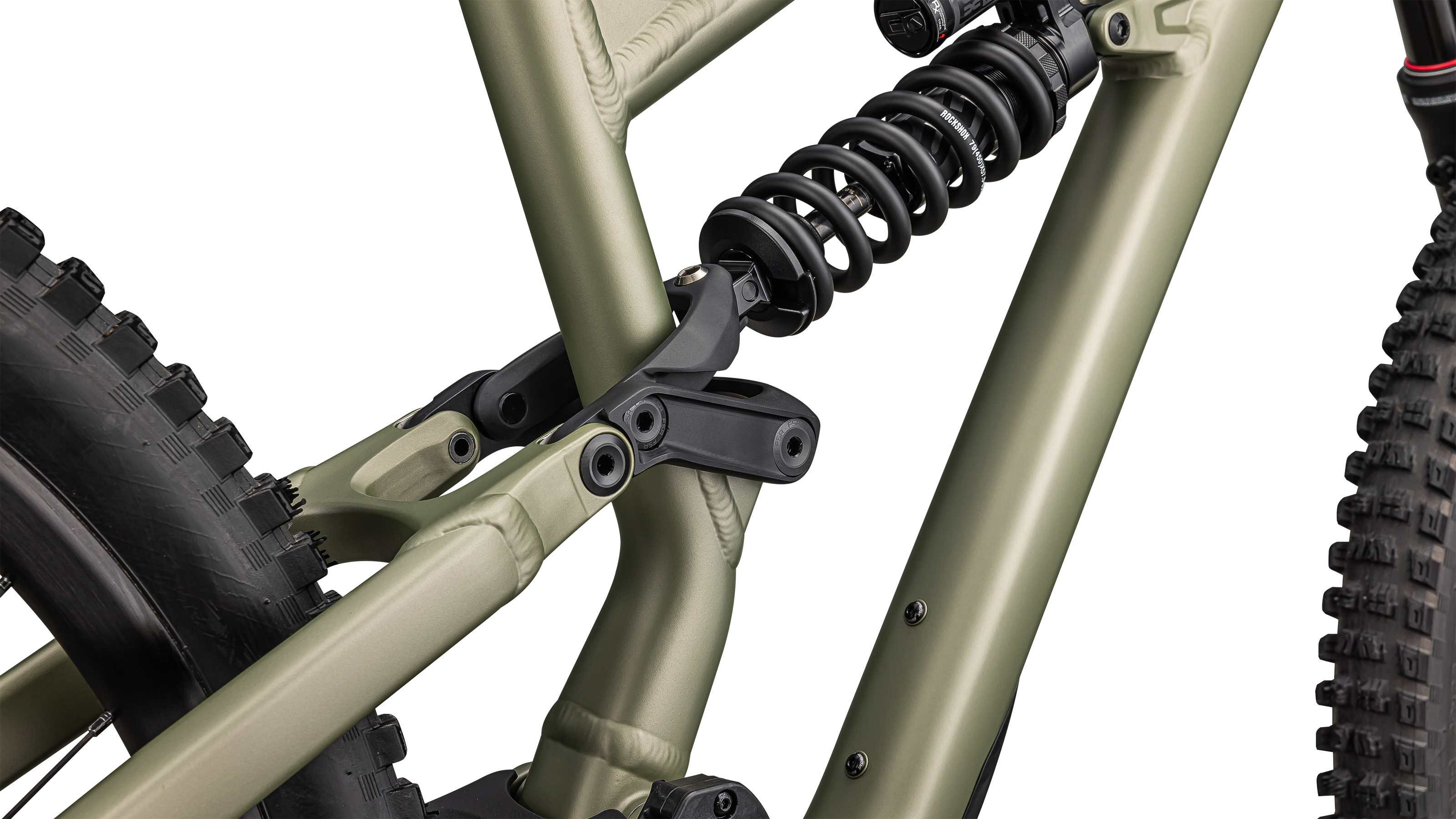

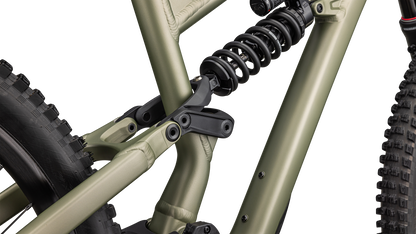

Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience
Frameset
Frame M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder Alloy, 38.6mm
Suspension

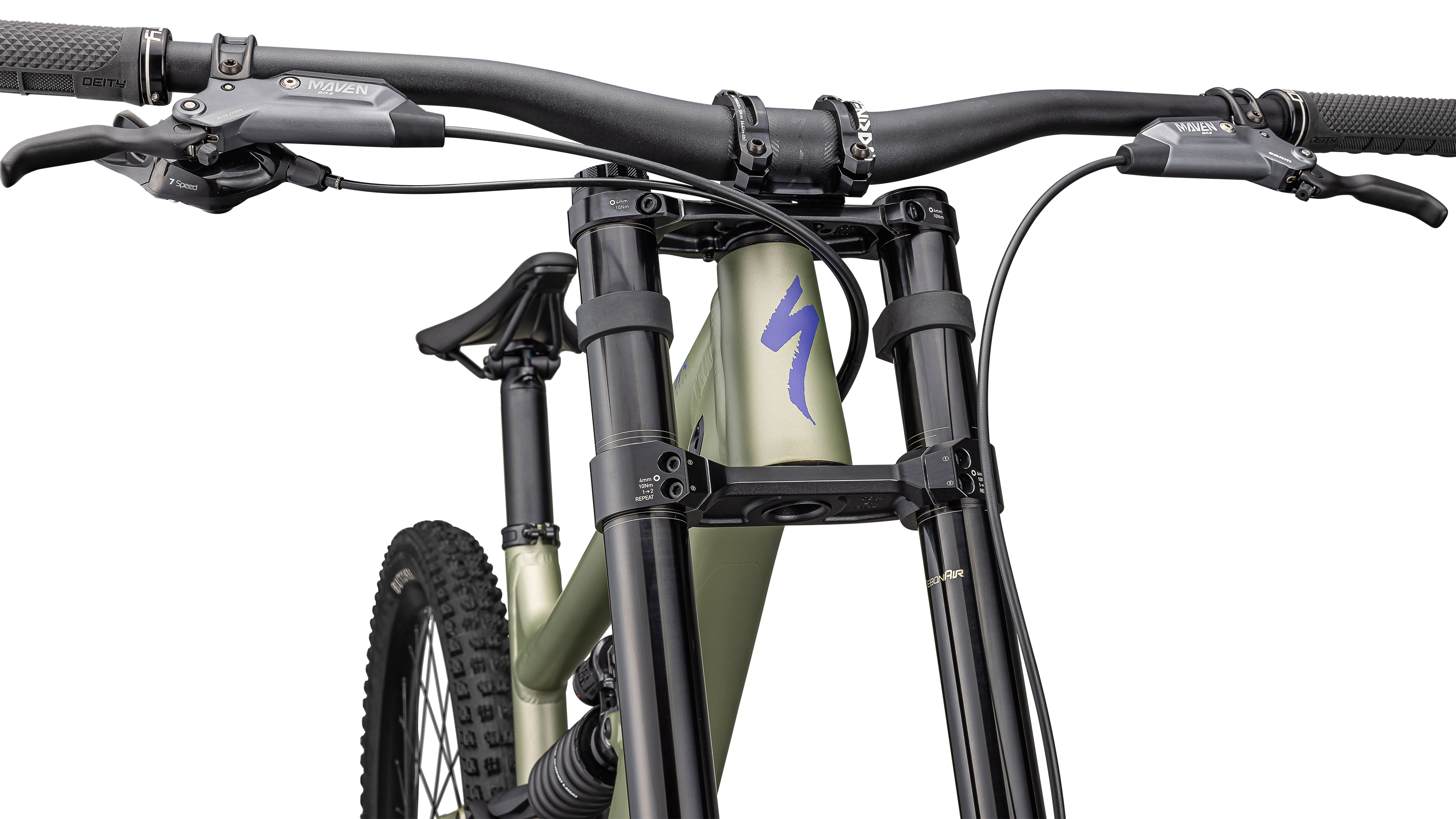

Fork RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel
Cockpit
Seat Post Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
Saddle Body Geometry Henge DH, hollow Cro-Mo rails, 130mm

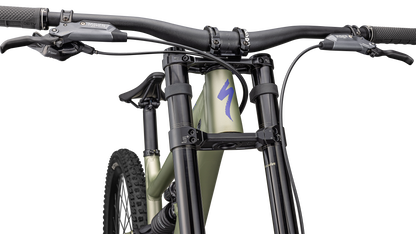

Stem Descendant 35mm Direct Mount Stem, 50mm length
GripsDeity Lockjaw
Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm
Brakes
Front Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm
Rear Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc
Drivetrain
Shift Levers SRAM GX DH, trigger, 7-speed
Rear Derailleur SRAM GX DH, 7-speed, trigger
Cassette SRAM GX DH, 7-speed, 11-25t
Crankset SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
SRAM PC1110 w/ Powerlink™ SRAM PC1110 w/ Powerlink™
Bottom Bracket SRAM DUB Threaded Wide
Wheels & Tyres
Front Hub Alloy, sealed cartridge bearings, 20x110mm, 28h
Rear hub Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Spokes DT Swiss Industry
Tubes Standard, Presta valve
Accessories
