Technical Specifications

Description

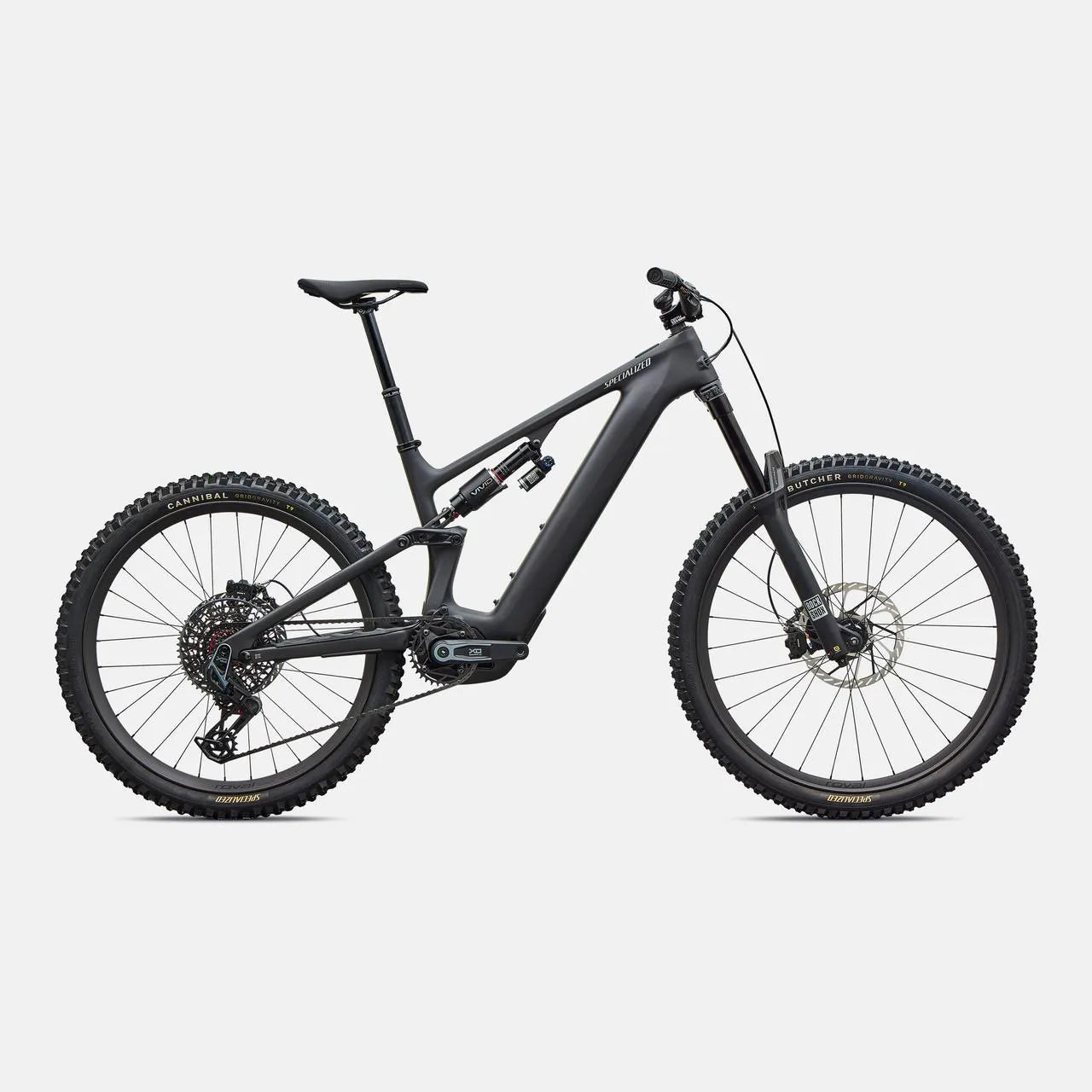

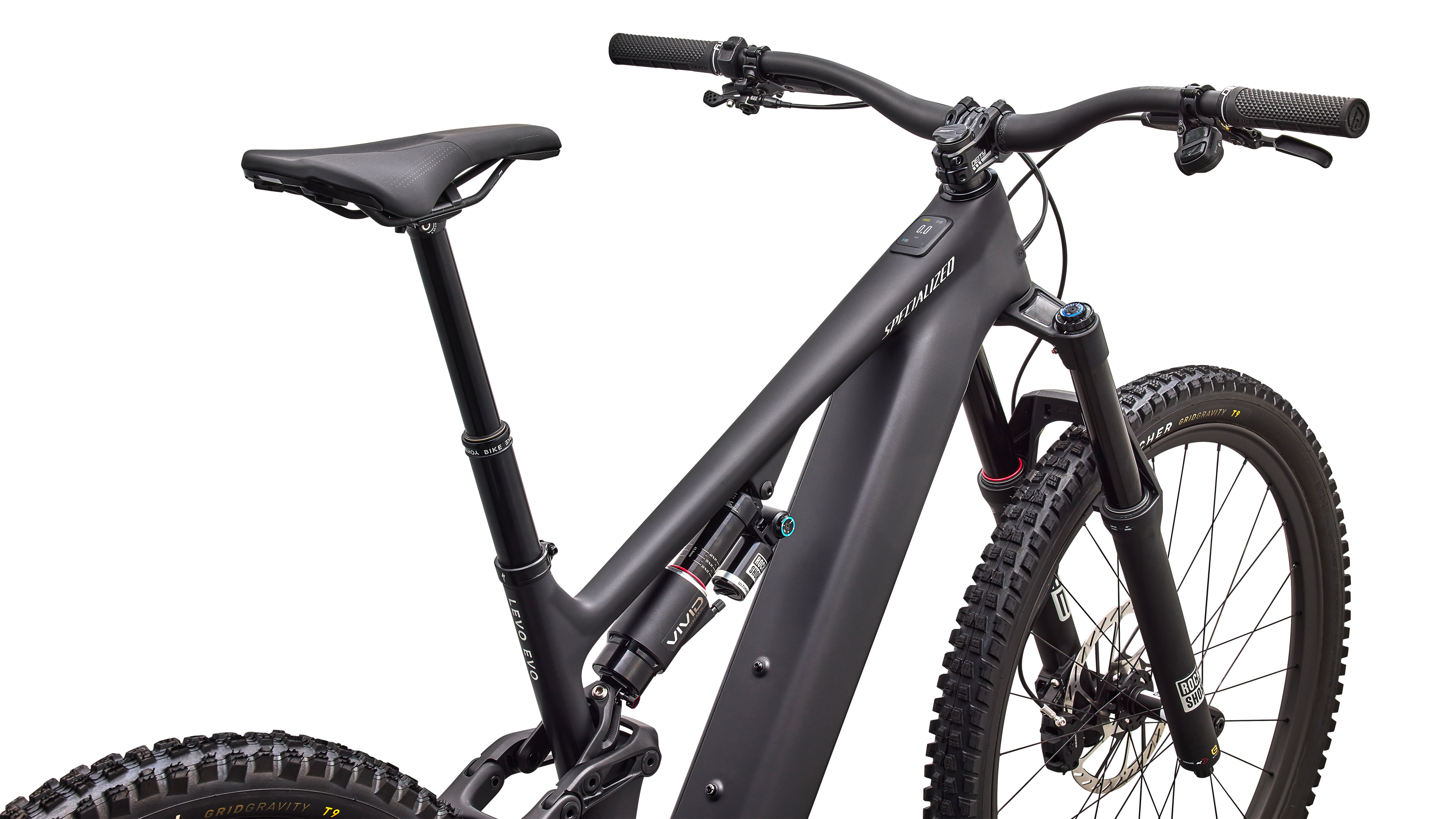

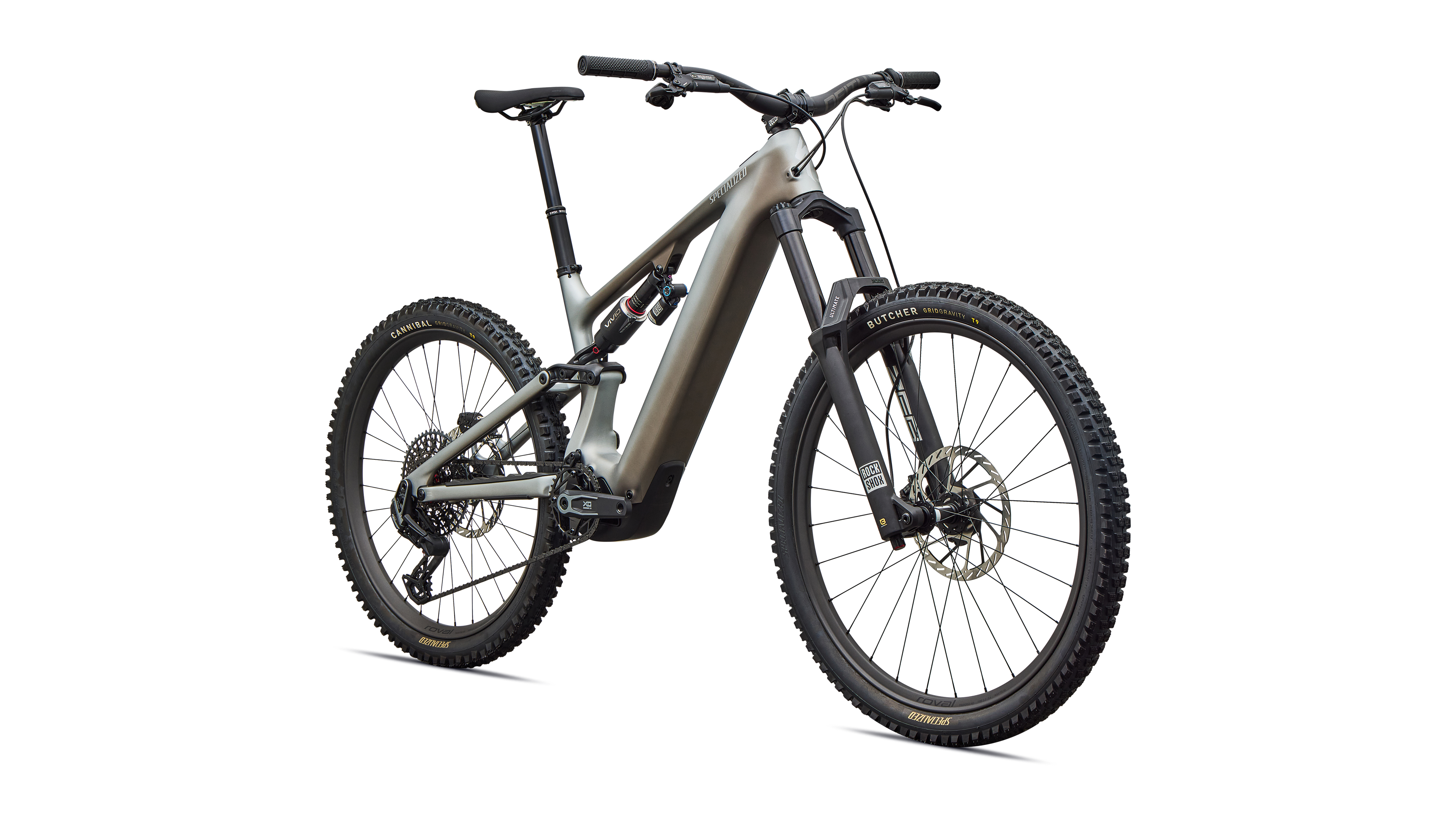

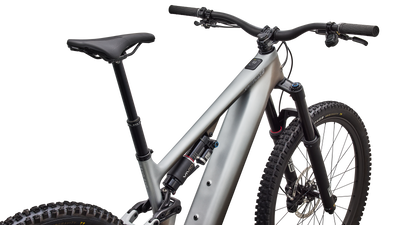

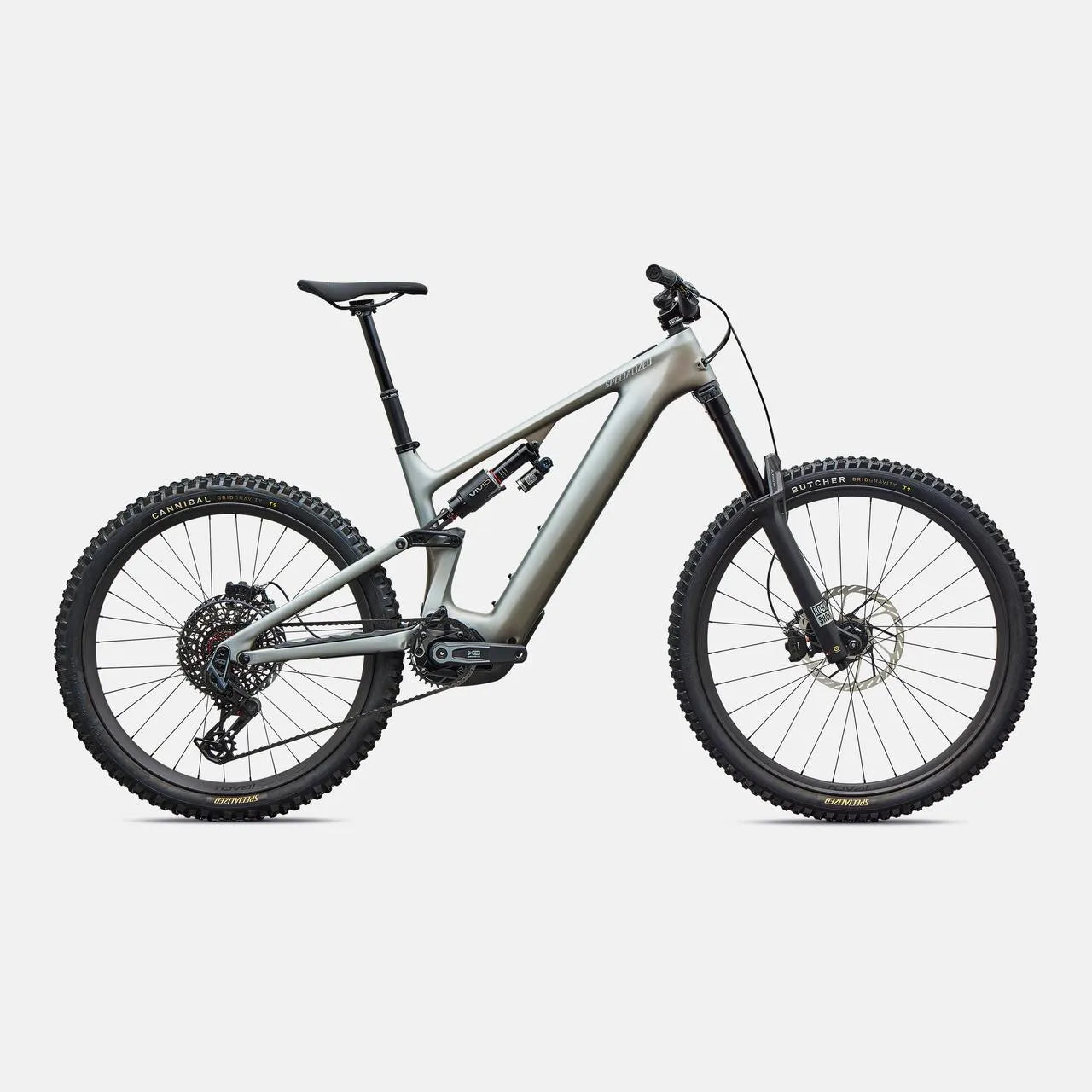

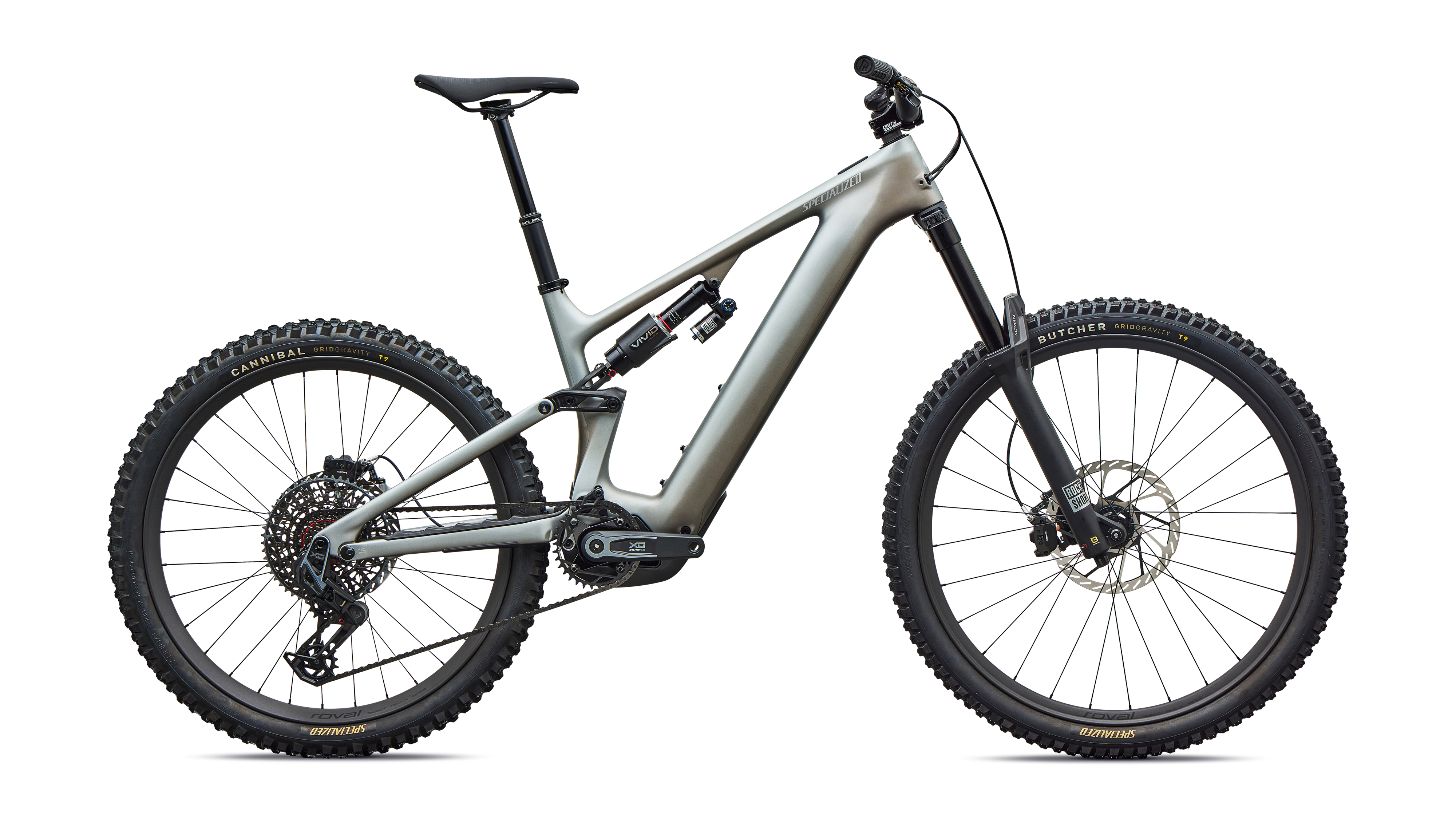

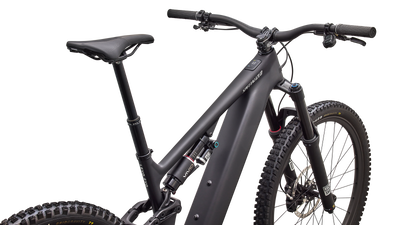

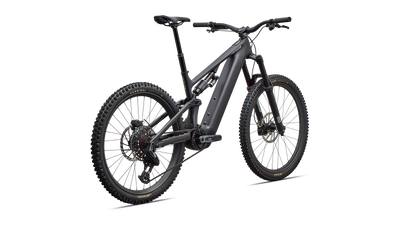

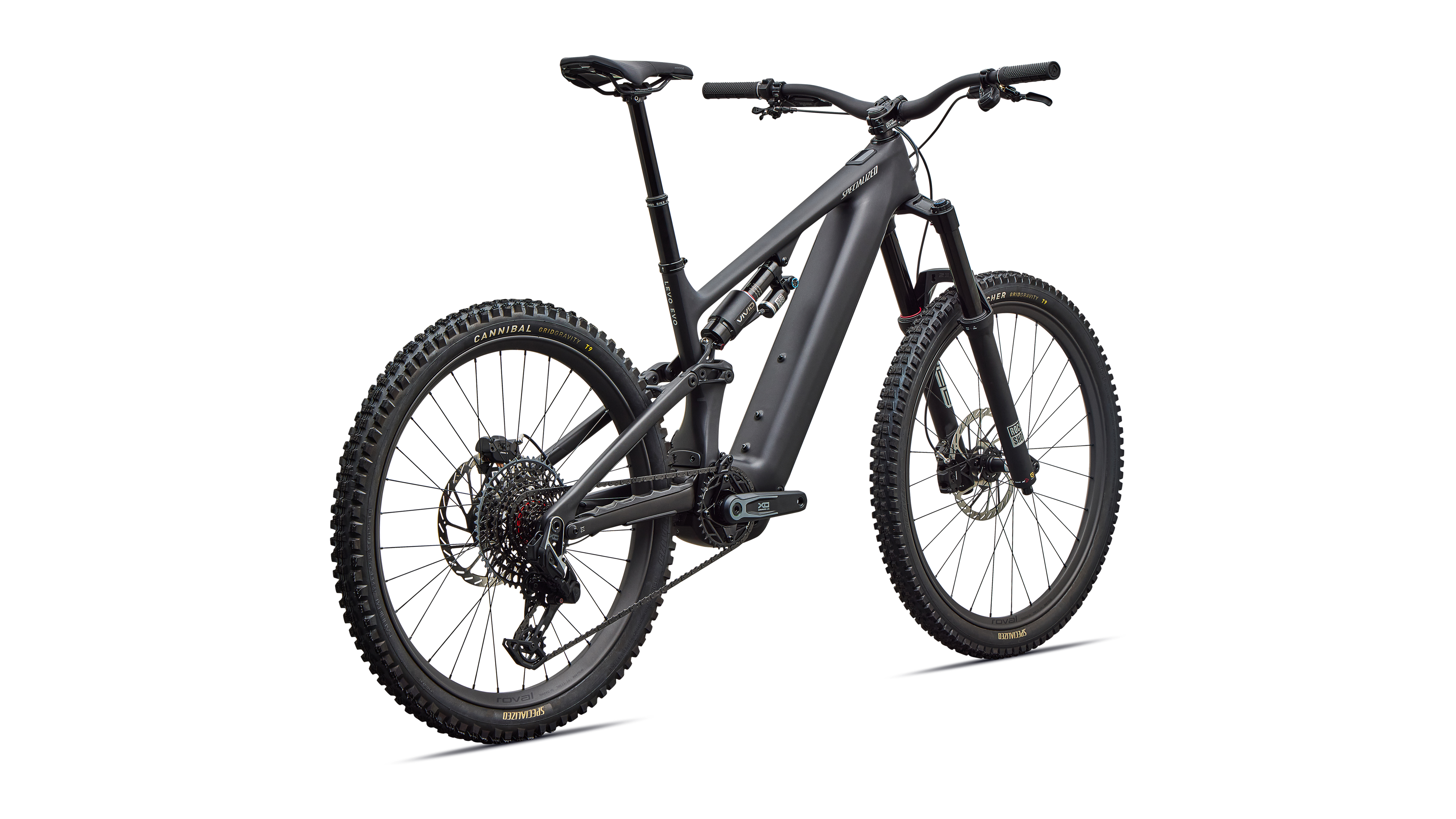

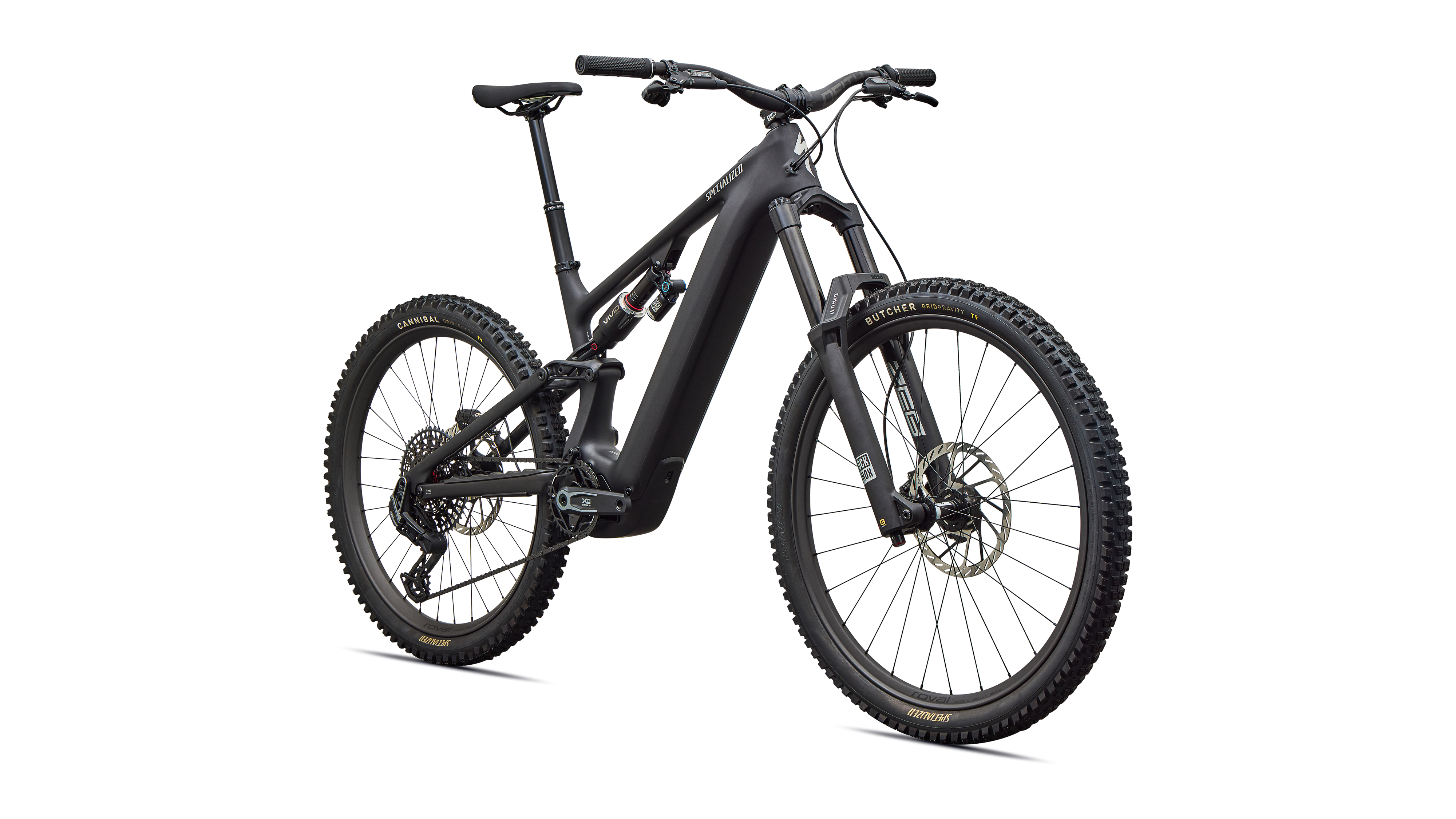

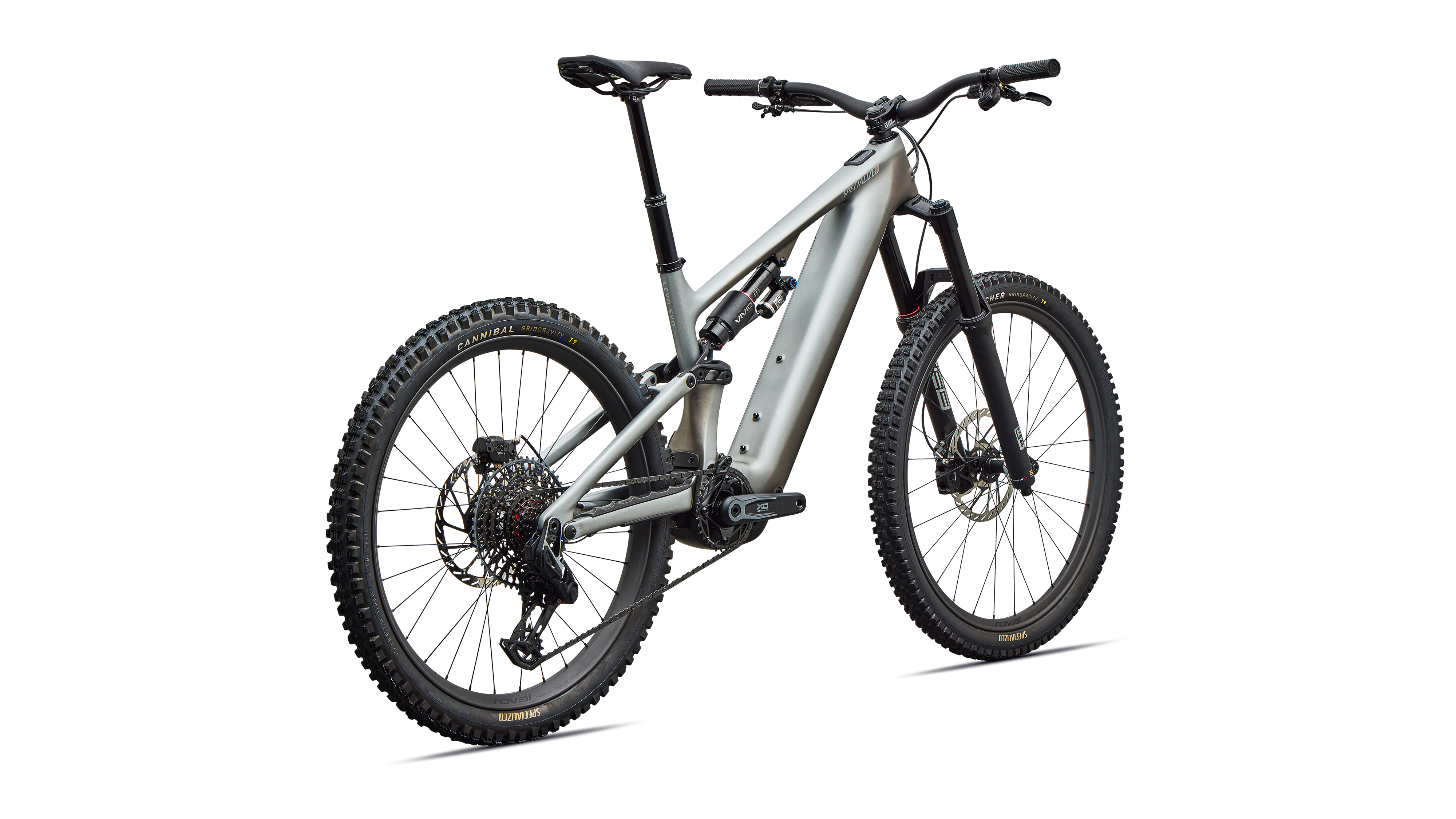

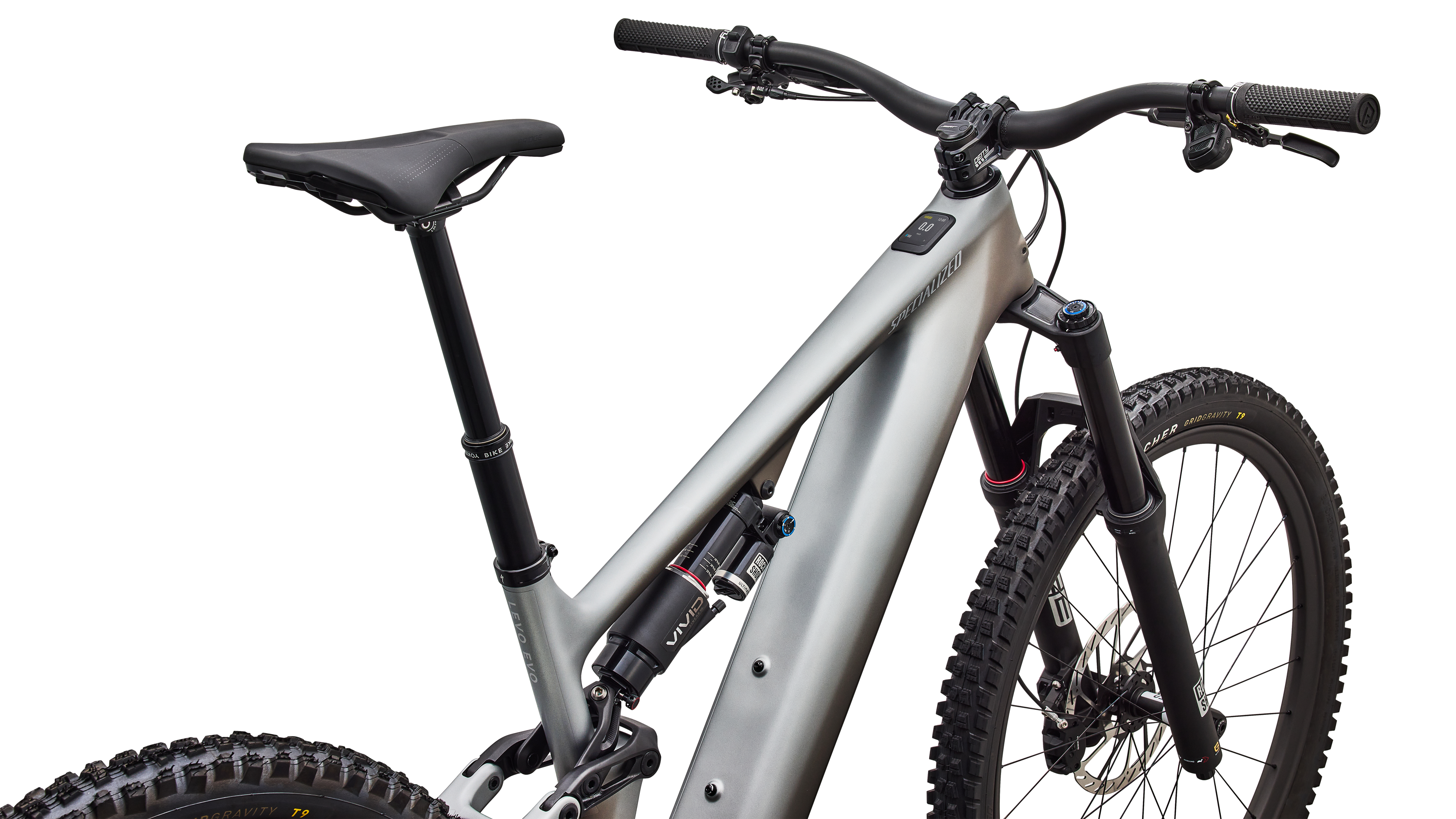

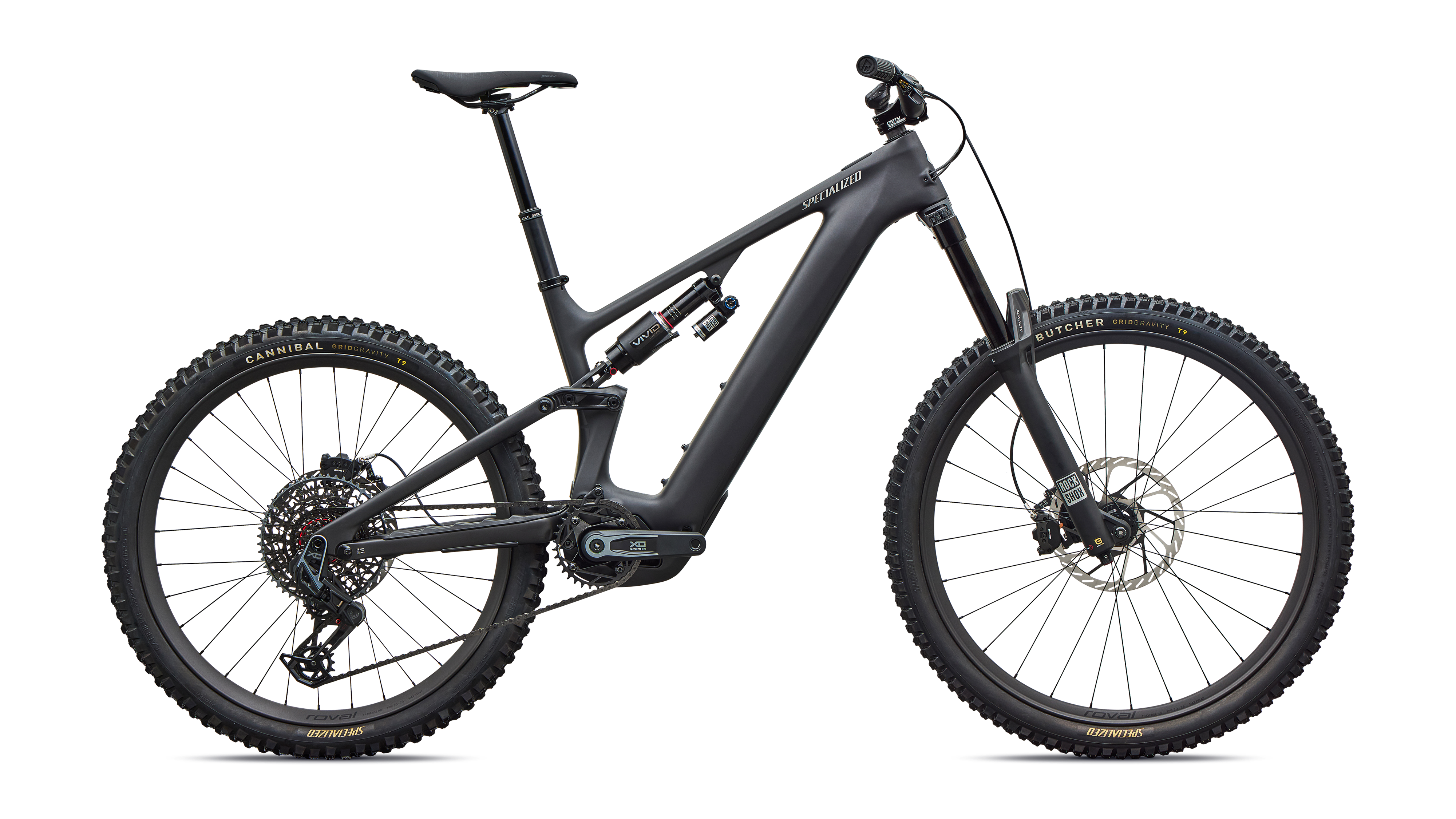

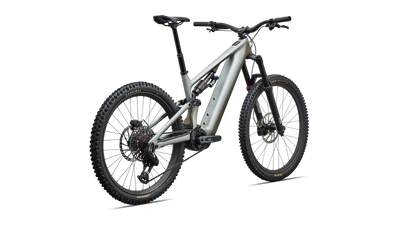

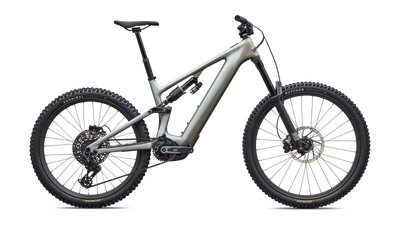

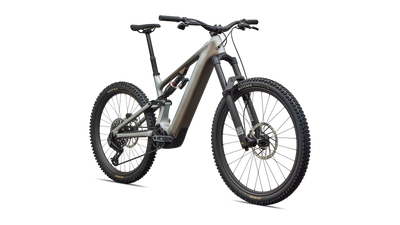

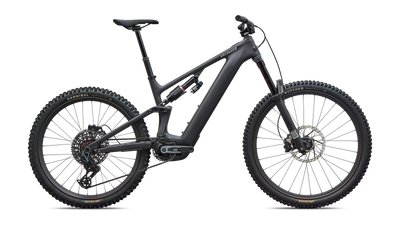

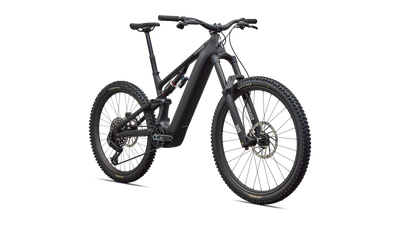

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric All Mountain Use - Electric All Mountain

E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage

Suspension - Fork: 180mm RockShox Zeb Ultimate
Shock: Vivid Ultimate Air Linear

Drivetrain - SRAM X0 Eagle Transmission

Wheels - Traverse HD with DT Swiss 350 hubs







Frameset

Frame Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage

Seat Binder Alloy, 38.6mm

SWAT SWAT Internal downtube storage

Suspension

Fork All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

Cockpit

Seat Post Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

Saddle Bridge Expert with MIMIC, Hollow Ti rails

Stem Deity, 35mm clamp, 42mm length

GripsDeity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

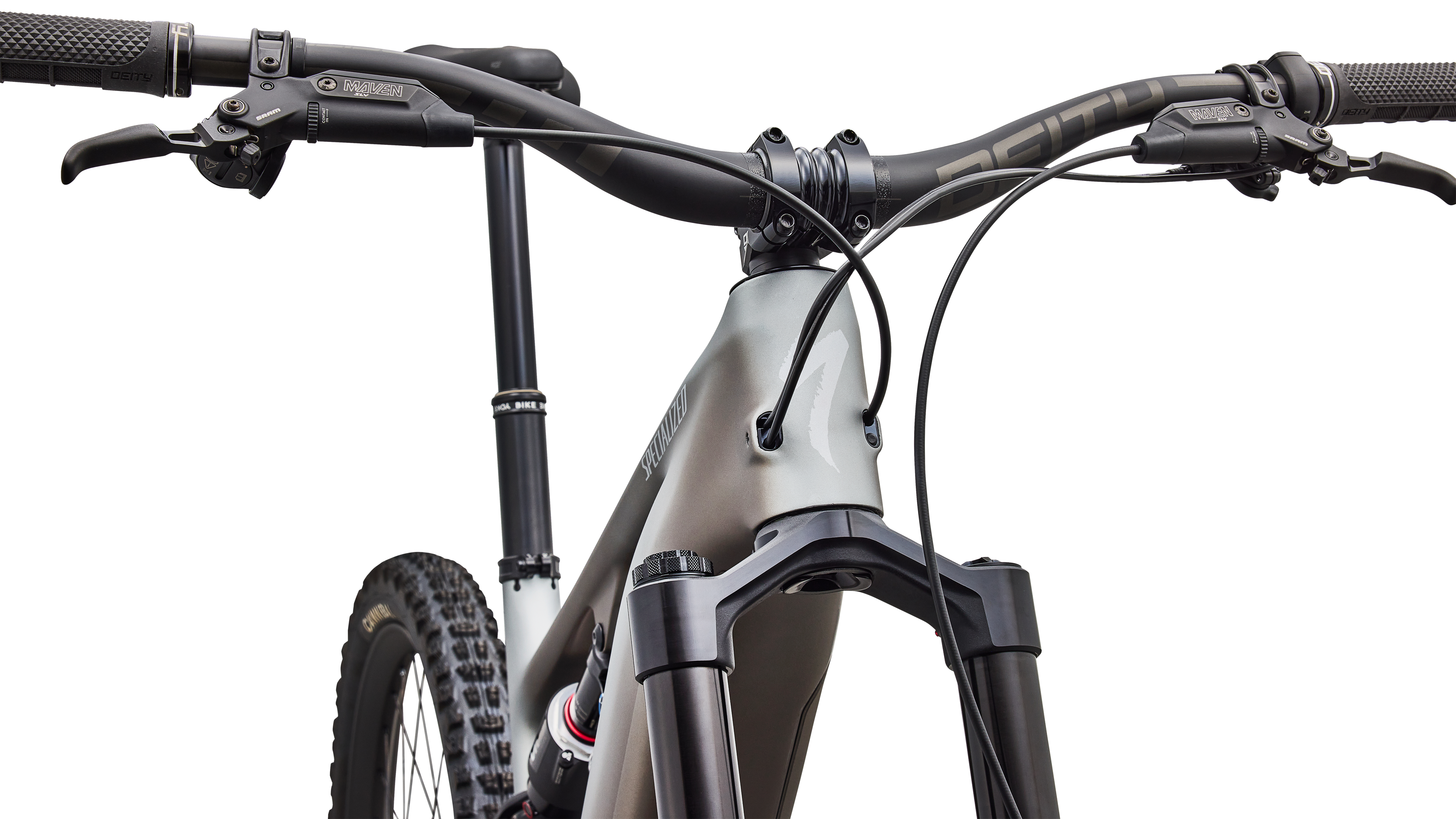

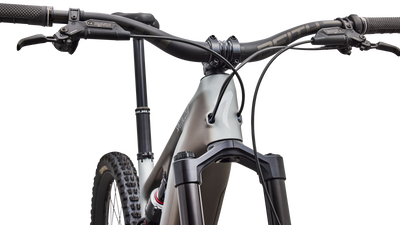

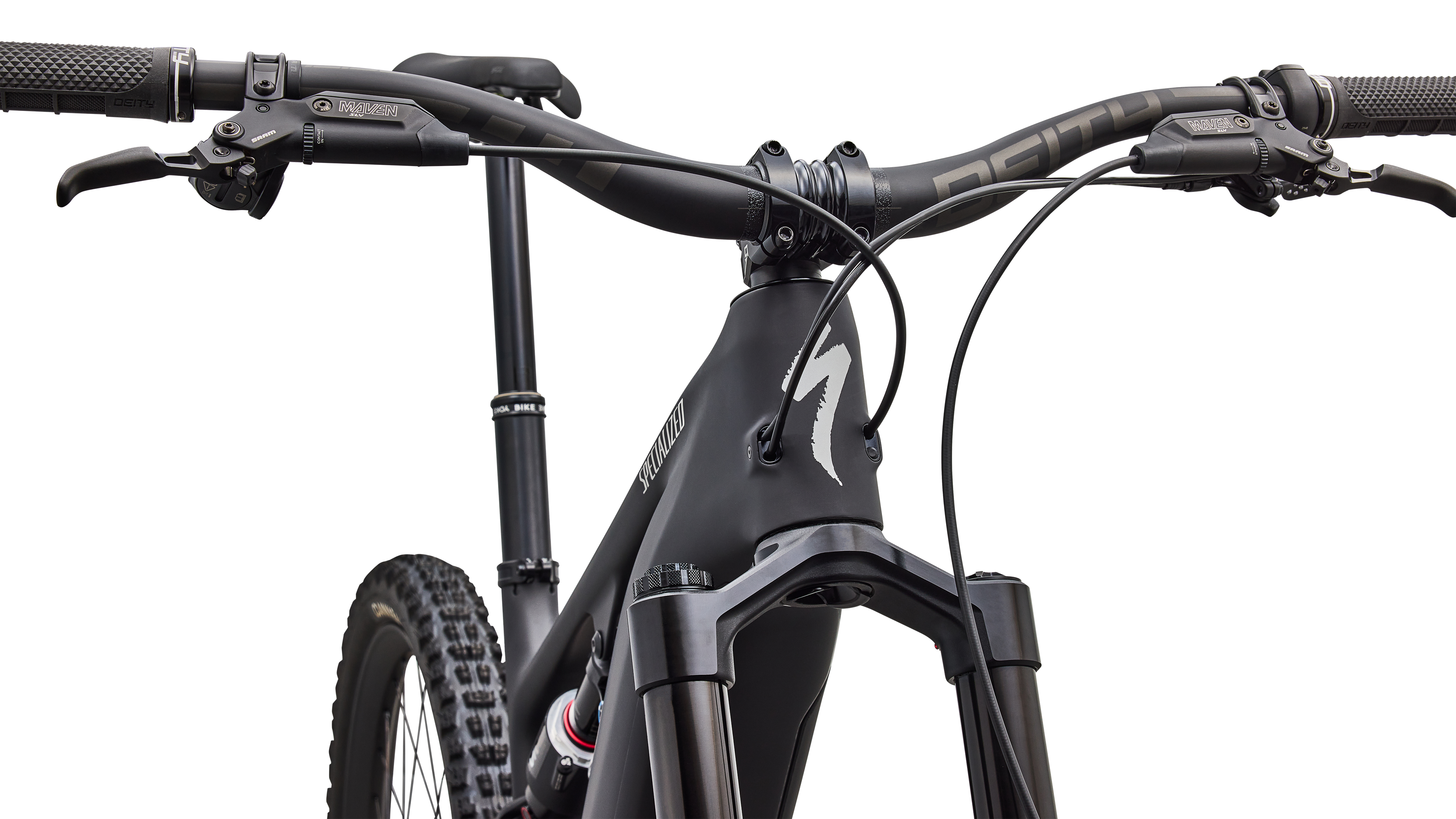

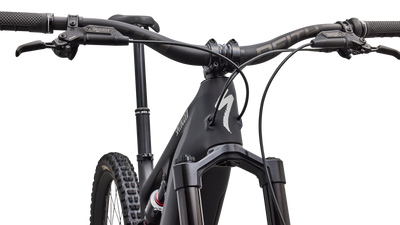

Handlebars Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise

Brakes

Front Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

Shift Levers SRAM AXS Pod Controller w/discrete clamp

Rear Derailleur SRAM X0 Eagle Transmission

Cassette SRAM XS 1295, 12 speed, 10-52

Crankset SRAM XO Alloy crank, 155mm, ISIS interface

Chain SRAM X0 Eagle Transmission 12-Speed Flattop Chain

Chain Ring SRAM 34t T-Type chainring, 104 BCD, steel

eBike

Battery 840Wh battery

Charger Specialized 4amp charger

Motor Specialized 3.1 Motor, 105Nm torque, 810W power

UI Remote Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Wheels & Tyres

Front Wheel Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width

Rear Wheel Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148

Butcher, GRID Gravity, T9, TLR, 29x2.4" Butcher, GRID Gravity, T9, TLR, 29x2.4"

Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4" Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

Tubes Standard, Presta Valve

Accessories
