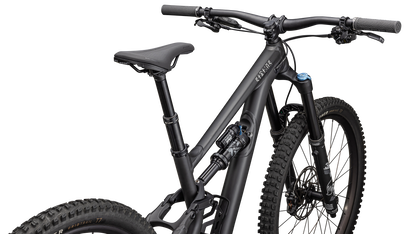

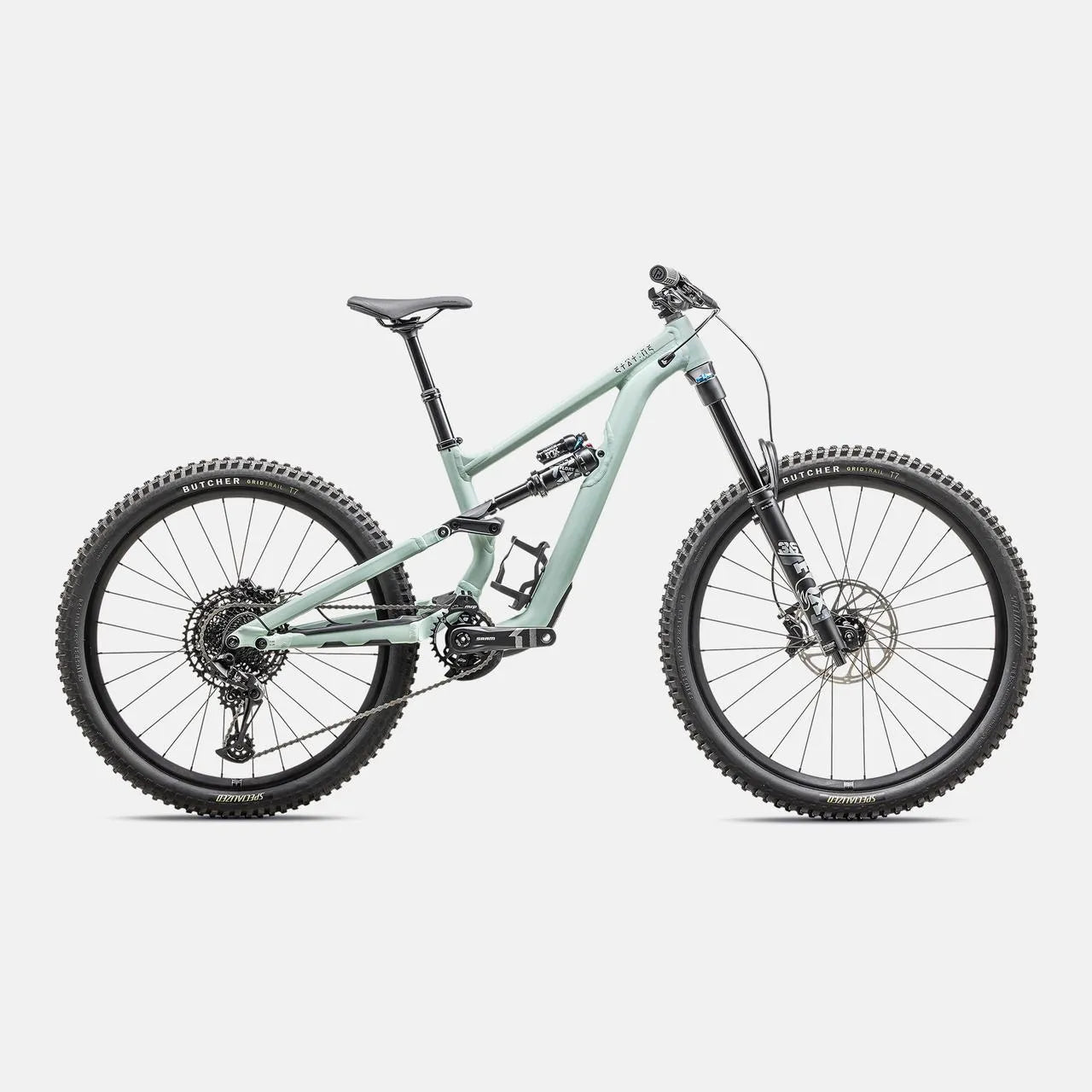

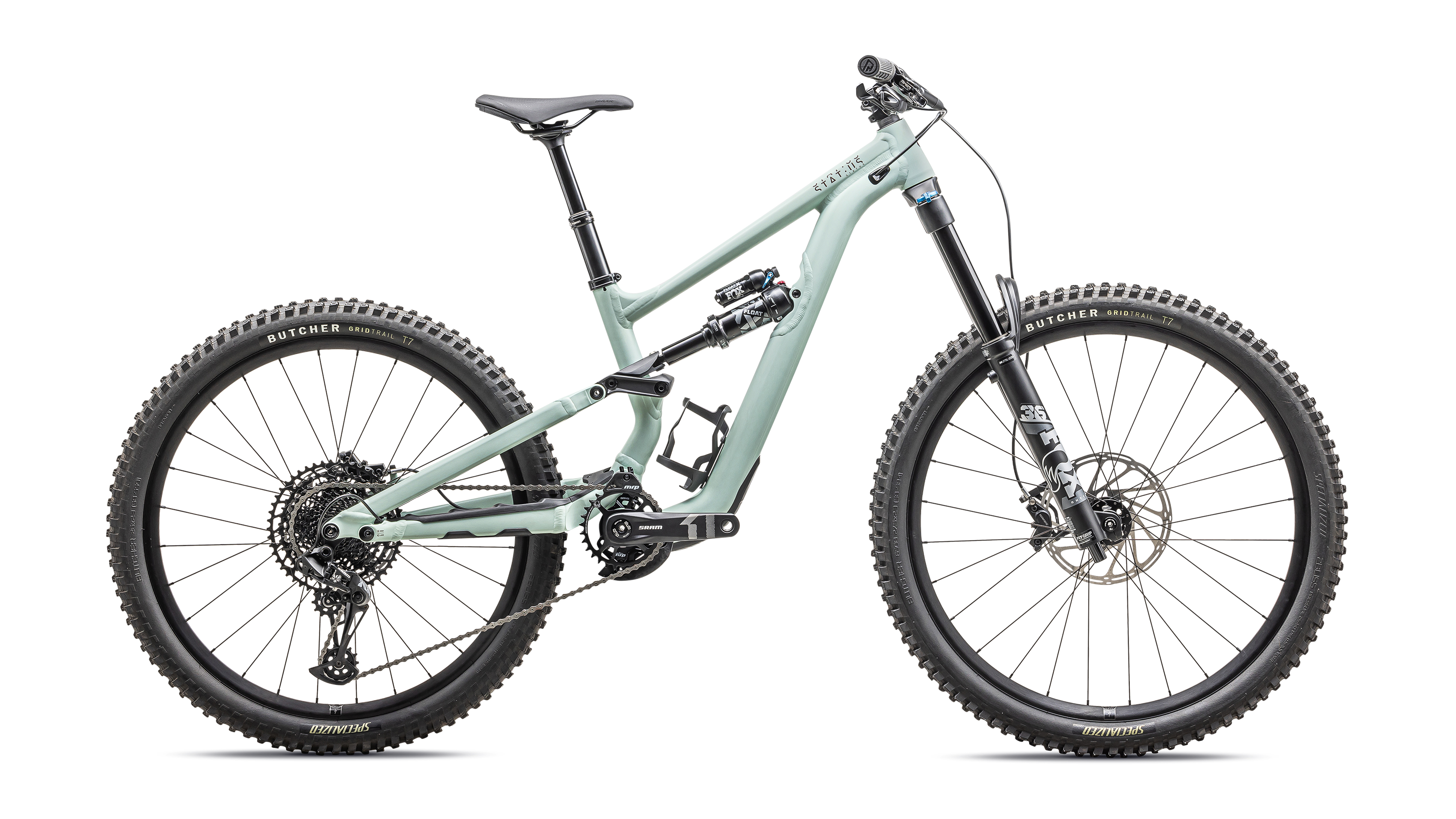

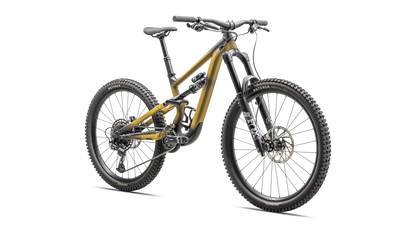

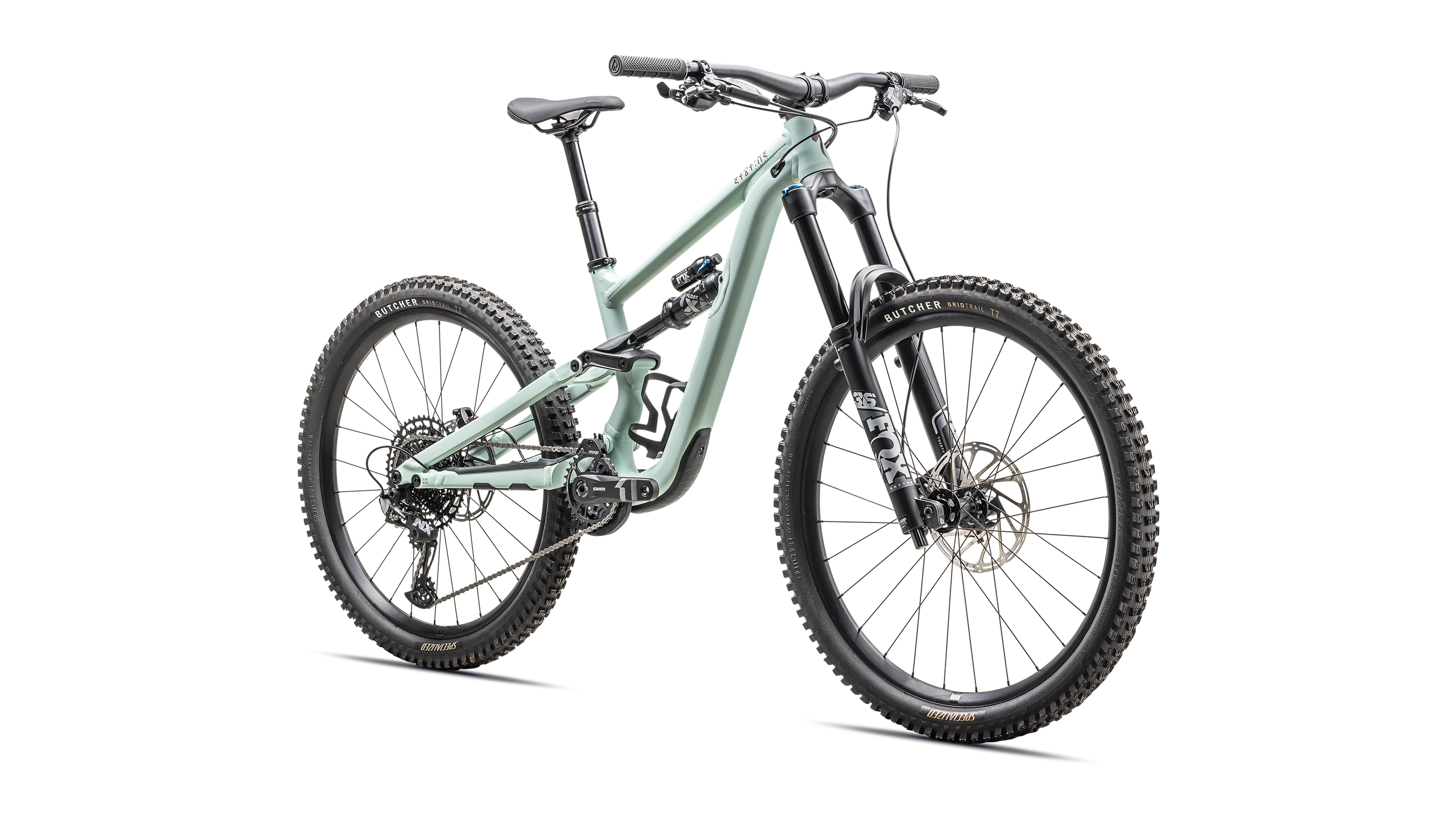

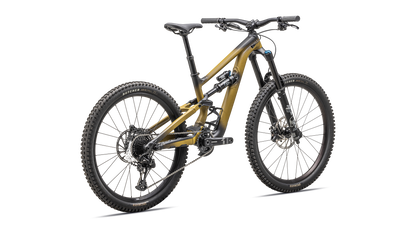

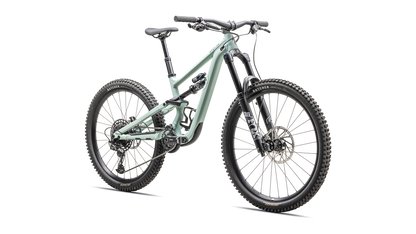

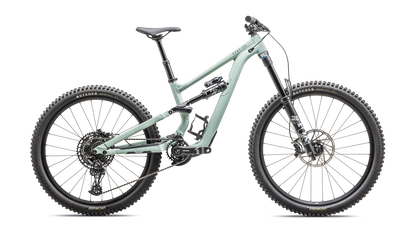

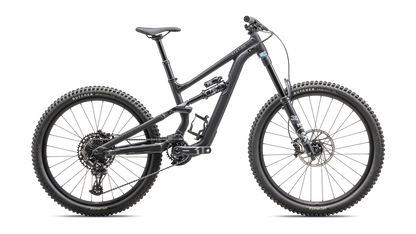

STATUS 2 170 ZERO
93723-7700
Pairs well with
Pickup available from our South Melbourne Showroom
Free Shipping on Orders over $250, excludes bikes.

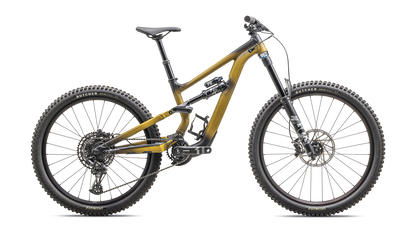

STATUS 2 170 ZERO
Technical Specifications
Description
STATUS 2 ZERO finds the boundaries of mountain bikes made for smaller riders and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 ZERO is a bike meant to be ridden, however, or wherever you ride. Whether you're on the trails, at the bike park, on the streets, or just cutting turns with your friends on a local hill, the STATUS 2 ZERO will allow you to ride your way. GO BIG, START SMALL: STATUS 2 ZERO is a first for our mountain bikes. It is a ‘core’ and incredibly capable rig built intentionally for small riders who want to really get after it. It has custom-tuned kinematics and suspension from the Specialized Ride Dynamics team—specifically for smaller riders—and appropriately sized components. BUILT BY RIDERS: STATUS 2 ZERO starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more. RIDE DYNAMICS TUNED: Before arriving at your doorstep or local bike shop, each bike gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The shock's characteristics are designed to perfectly complement the new bike's kinematics and smaller size. LET’S GET PERSONAL: Customize even more with neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow you to finely tune the frame’s geometry to your desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle. 100% Redesigned durable alloy chassis
New, more durable alloy rims

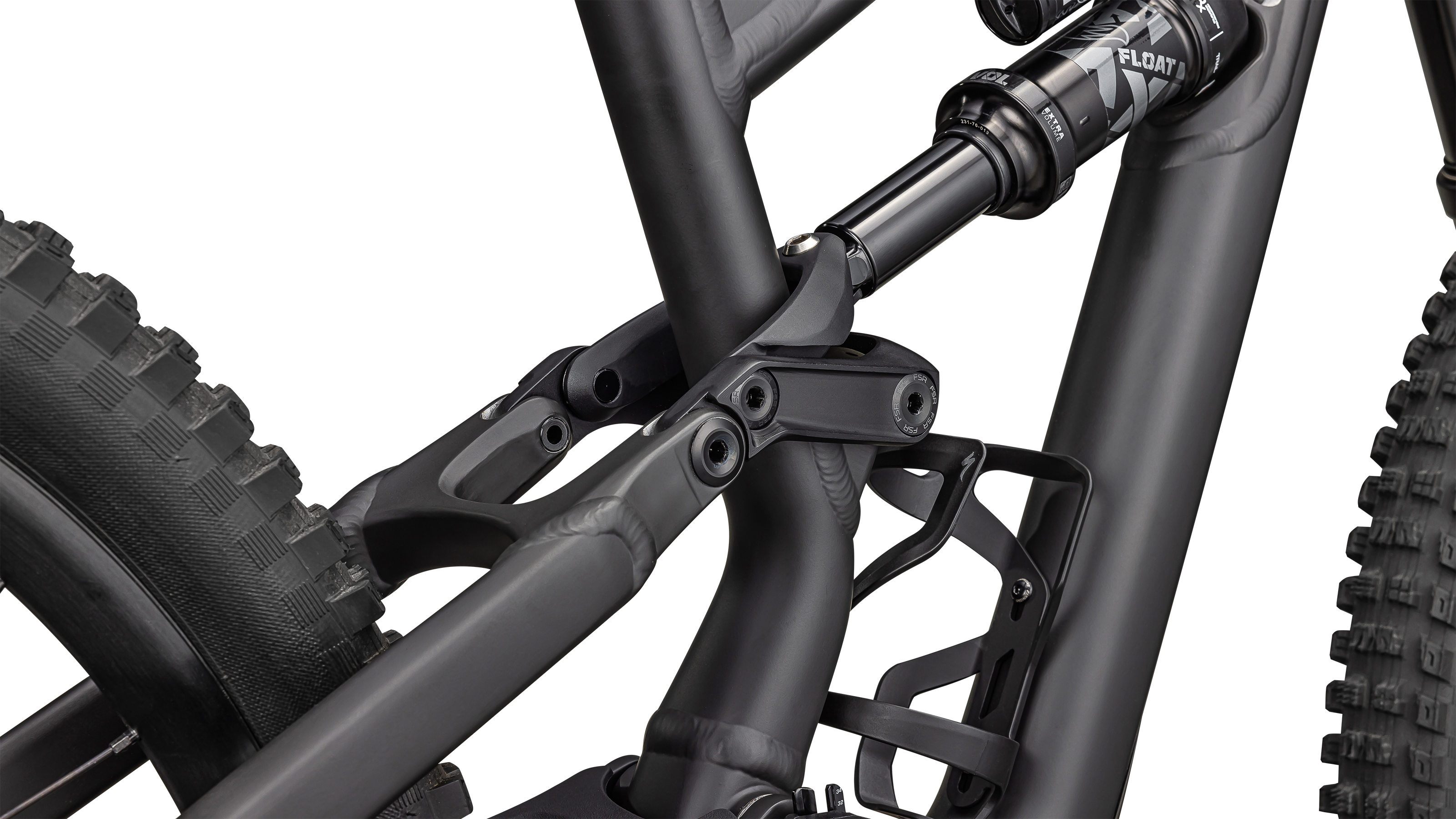

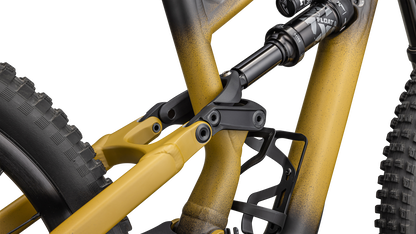

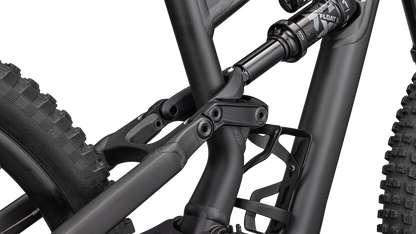

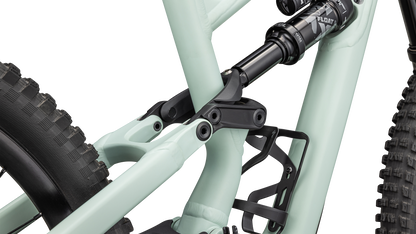

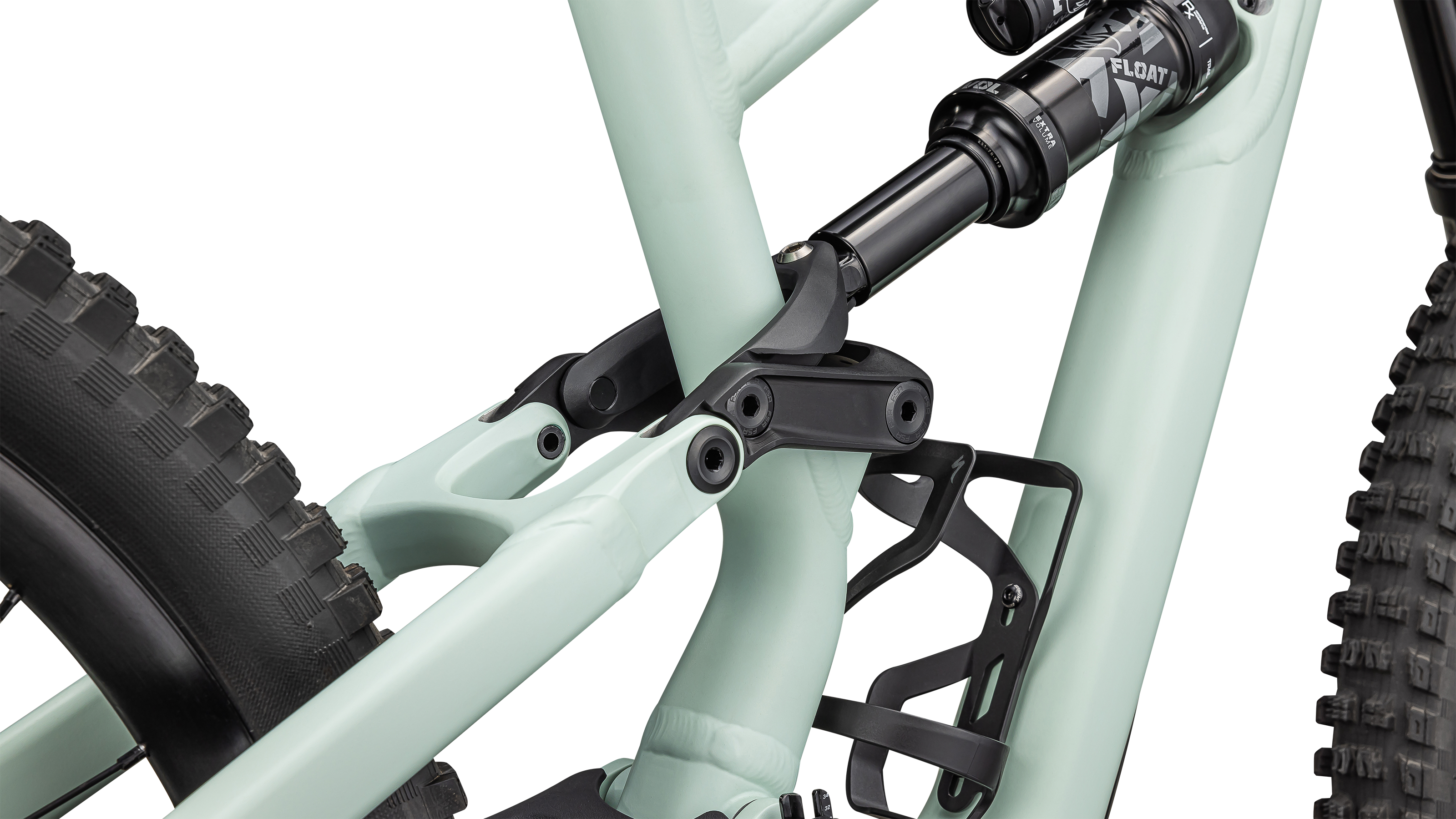

Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience
Frameset

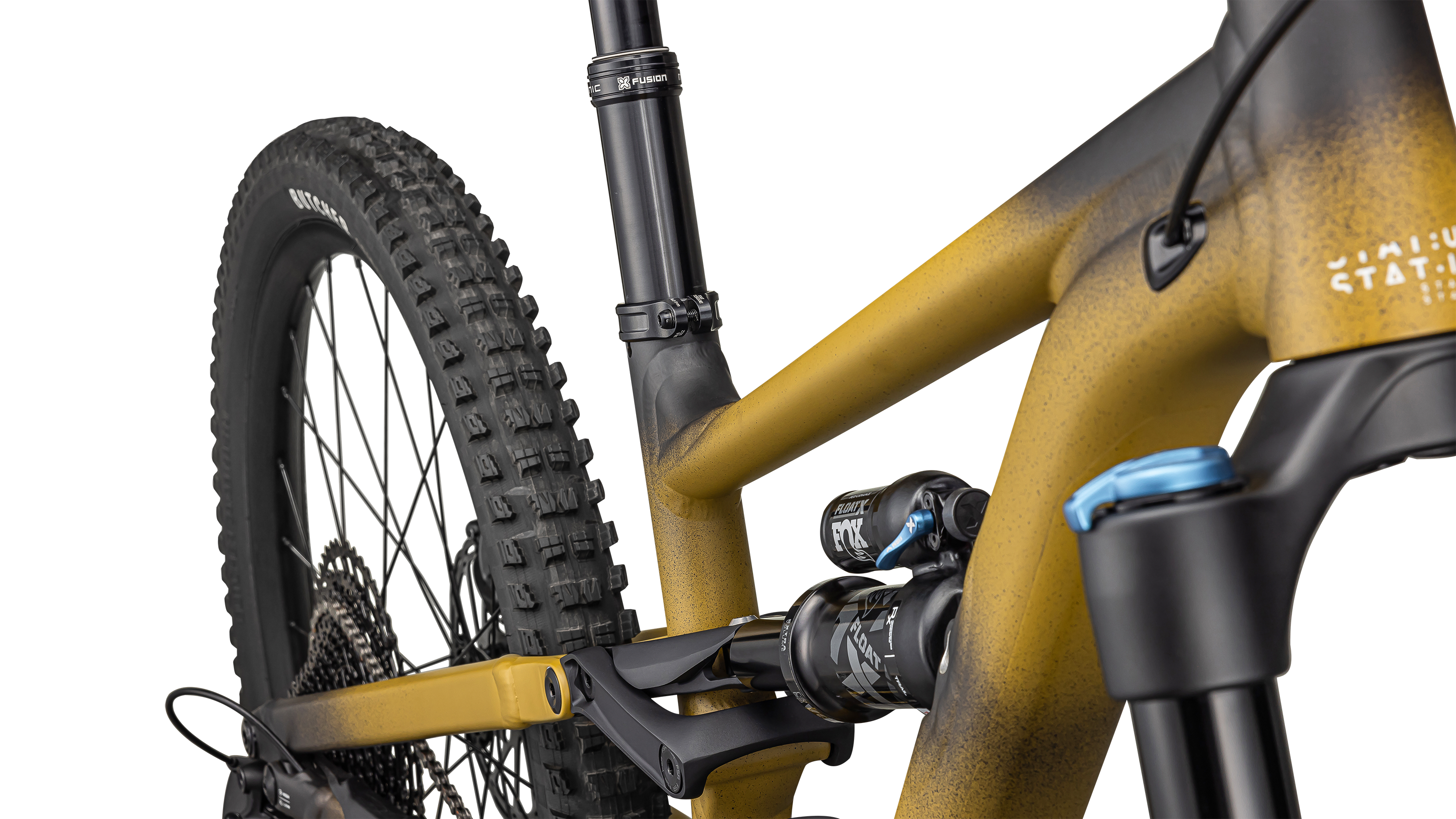

Frame M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder Alloy, 38.6mm
Suspension
Fork FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 37mm offset, 170mm of travel
Cockpit
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, 100mm
Saddle Bridge Saddle, steel rails, 130mm
Stem Alloy Trail Stem, 35mm bar bore
GripsDeity Lockjaw

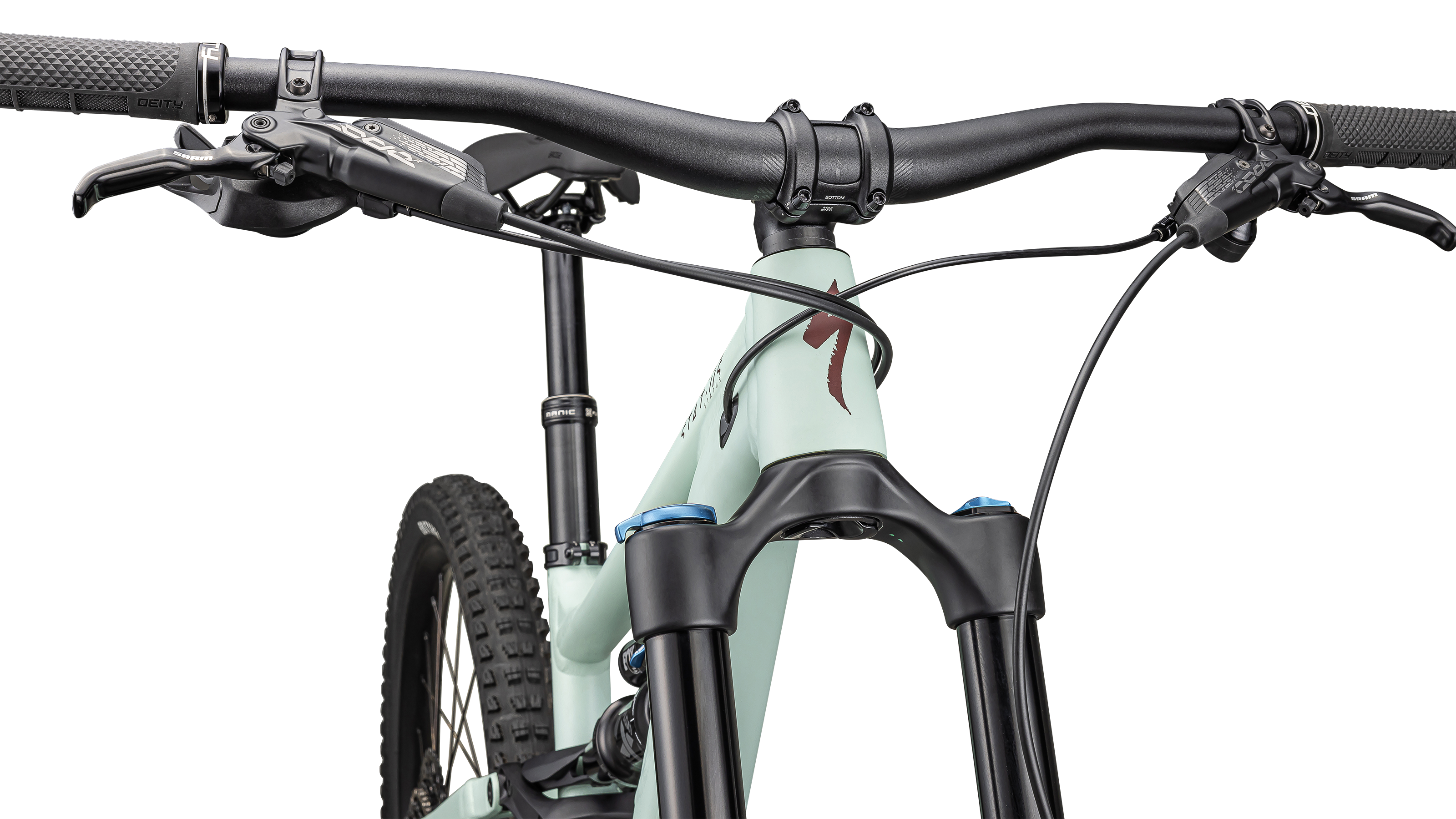

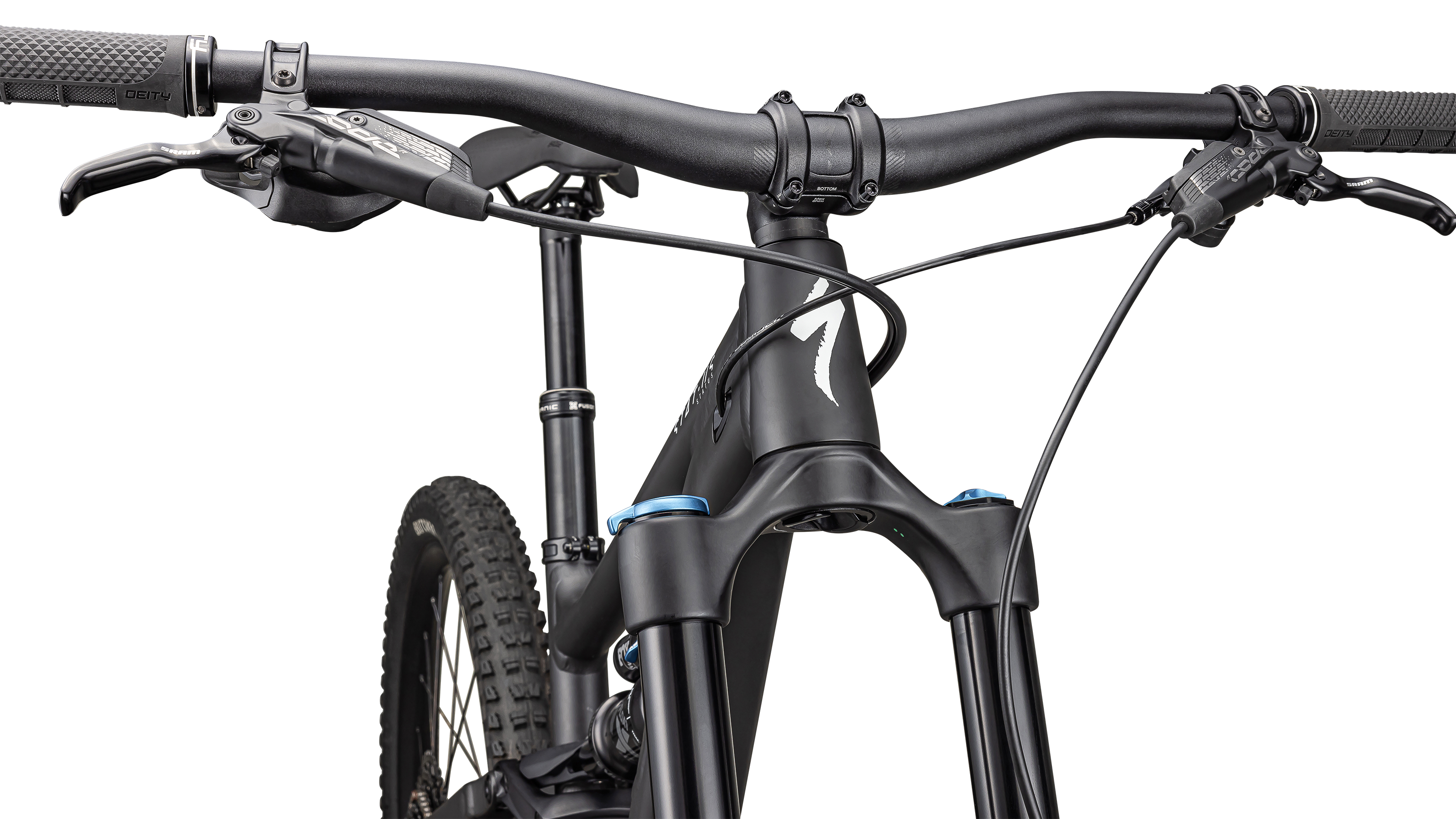

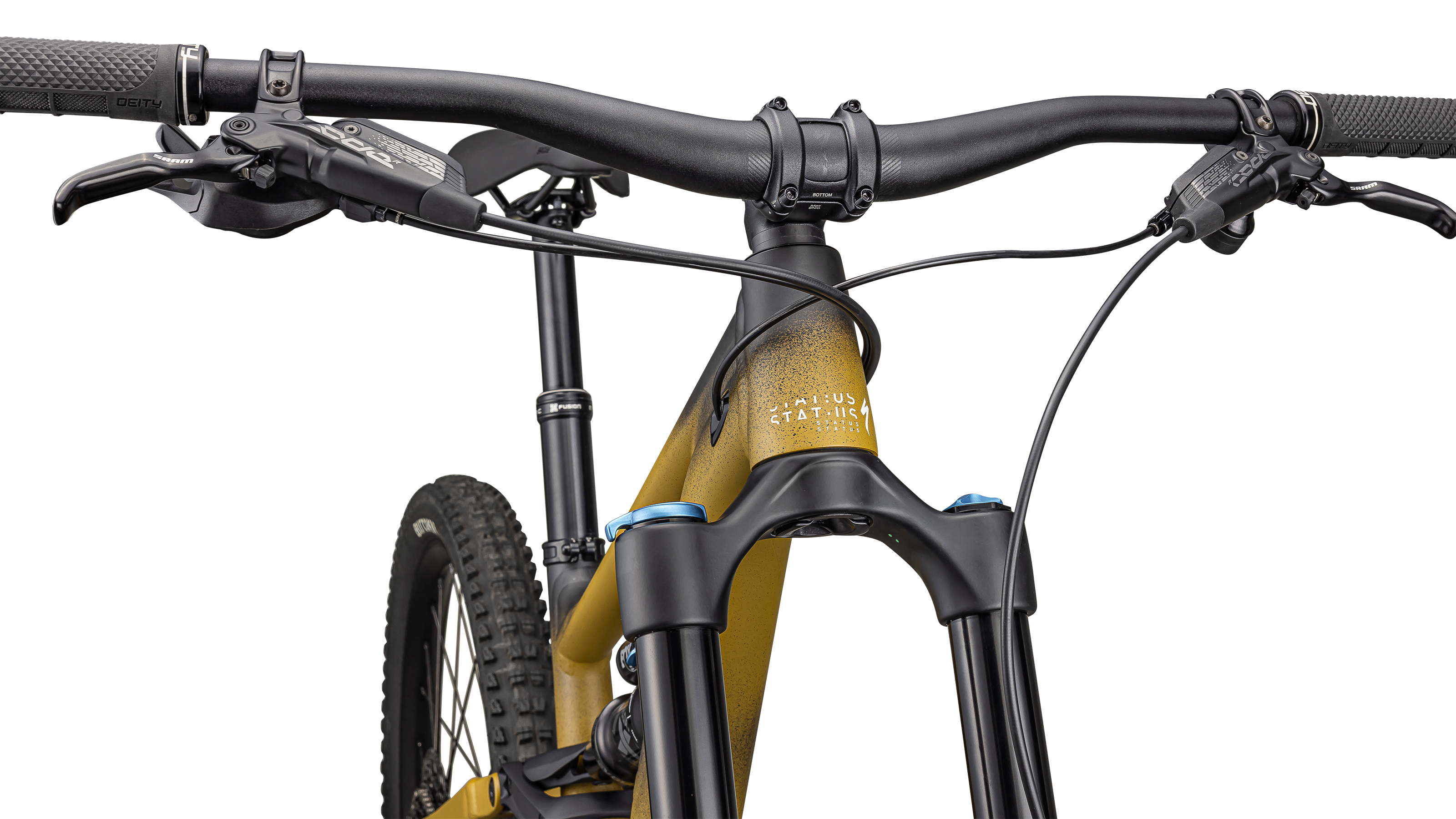

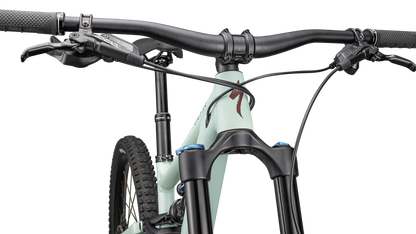

Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 760mm width
Brakes
Front Brake SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM Code R, 4-piston caliper, hydraulic disc, 180mm
Drivetrain
Shift Levers SRAM NX Eagle, trigger, 12-speed
Rear Derailleur SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T SRAM X1 Eagle, DUB,155mm, 55mm chainline, 30T
Chain SRAM NX Eagle, 12-speed
Chain Ring Steel, 30T
Bottom Bracket SRAM DUB Threaded Wide
Wheels & Tyres
Front Hub Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear hub Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3" Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 26x2.3"
Spokes DT Swiss Industry
Tubes Standard, Presta valve
Accessories
