Technical Specifications

Description

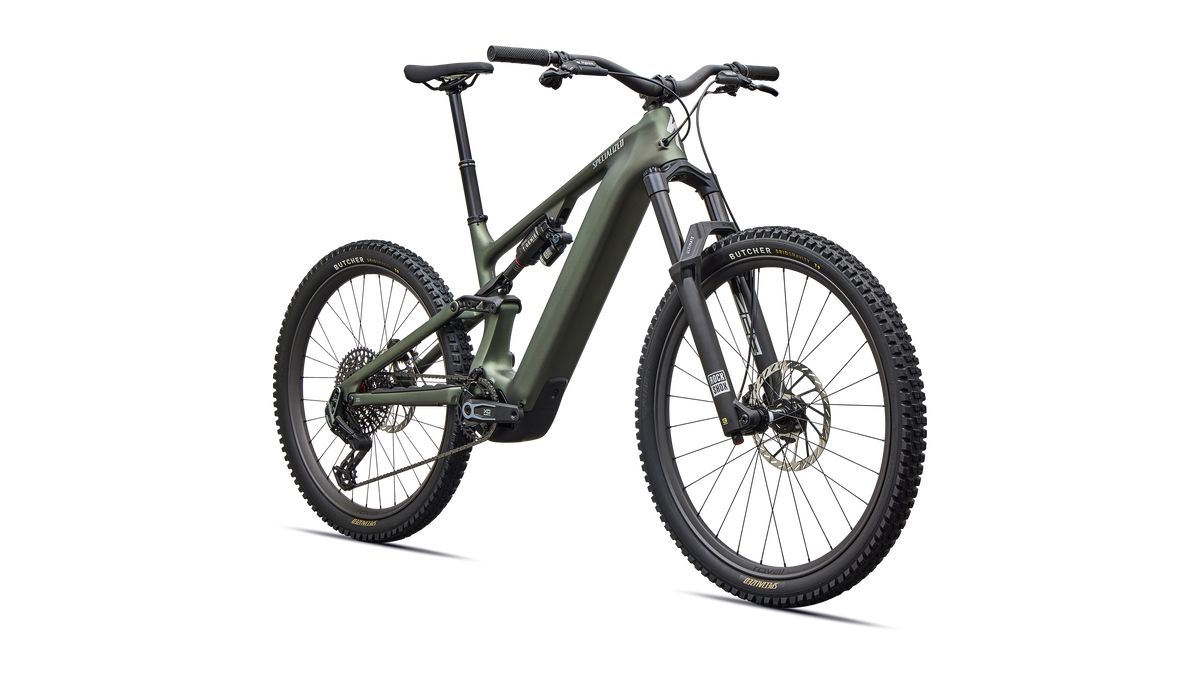

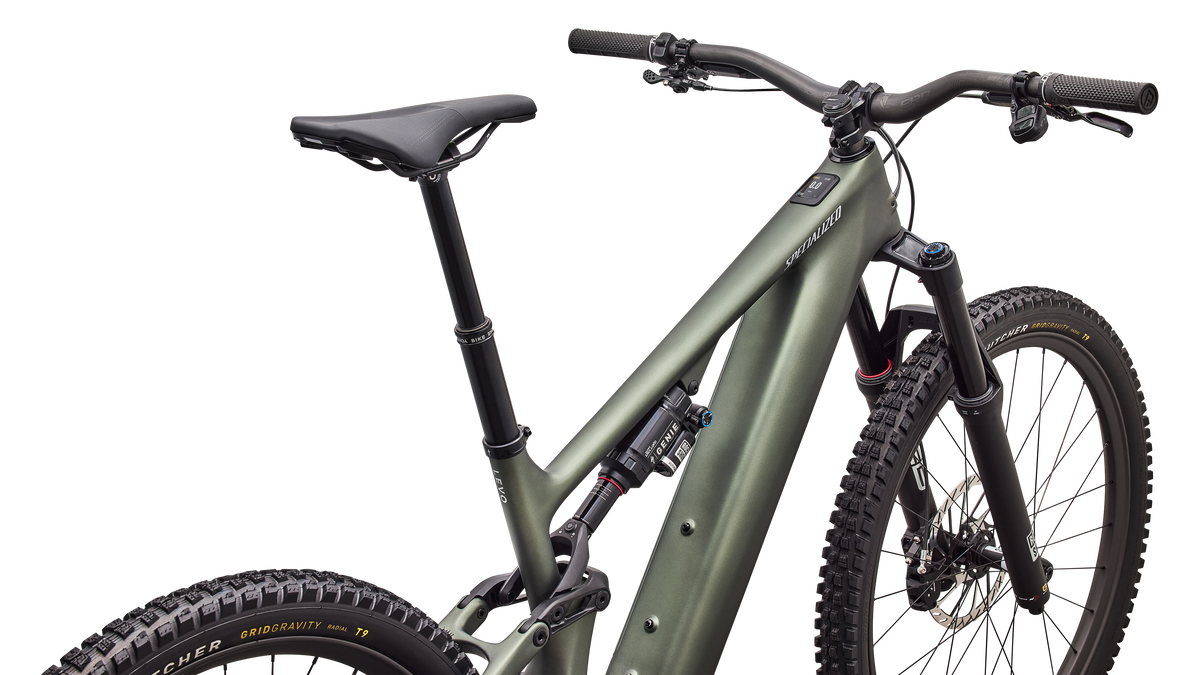

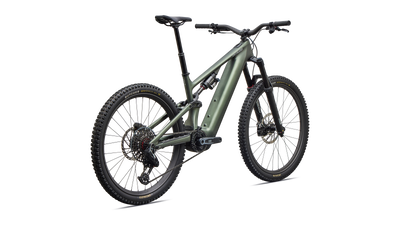

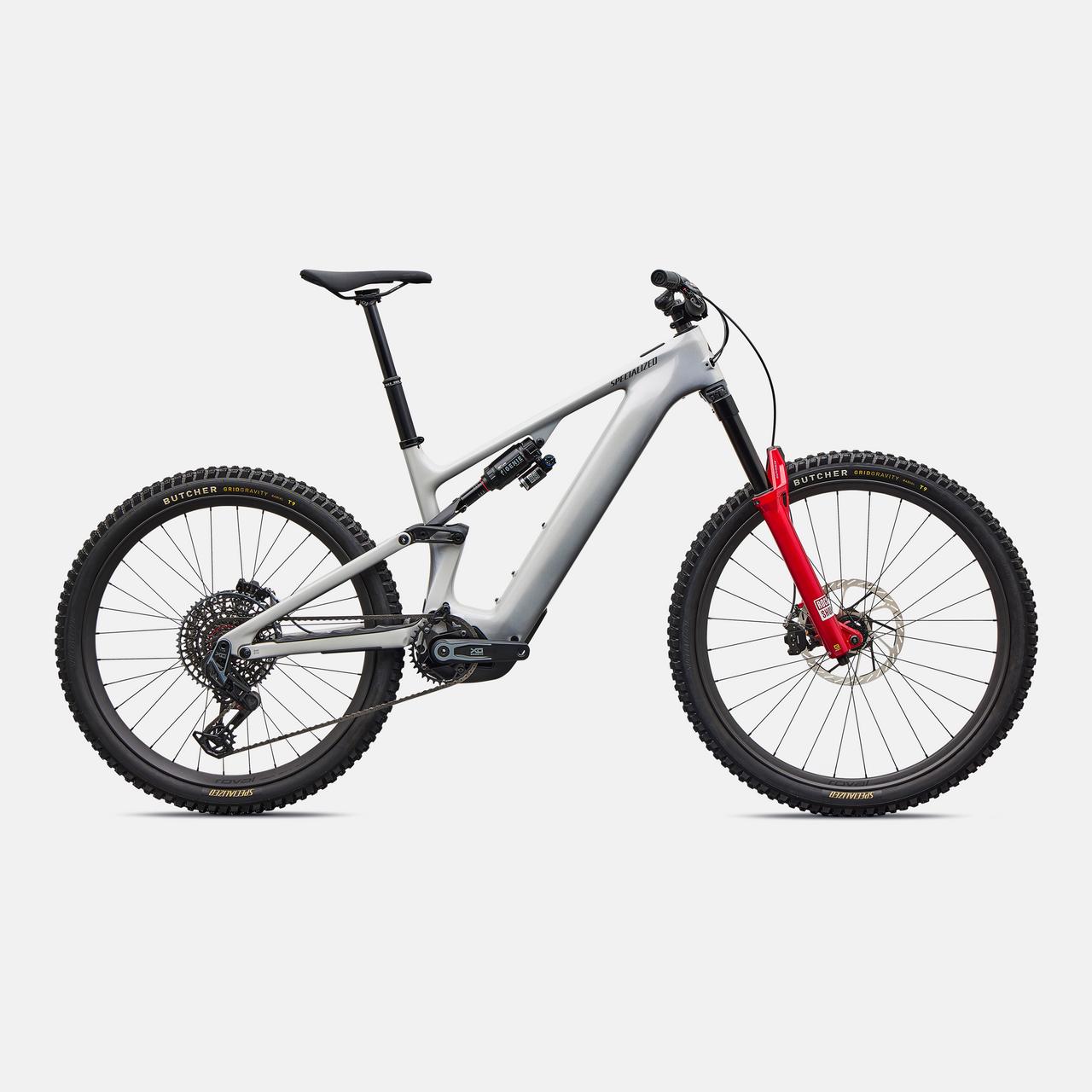

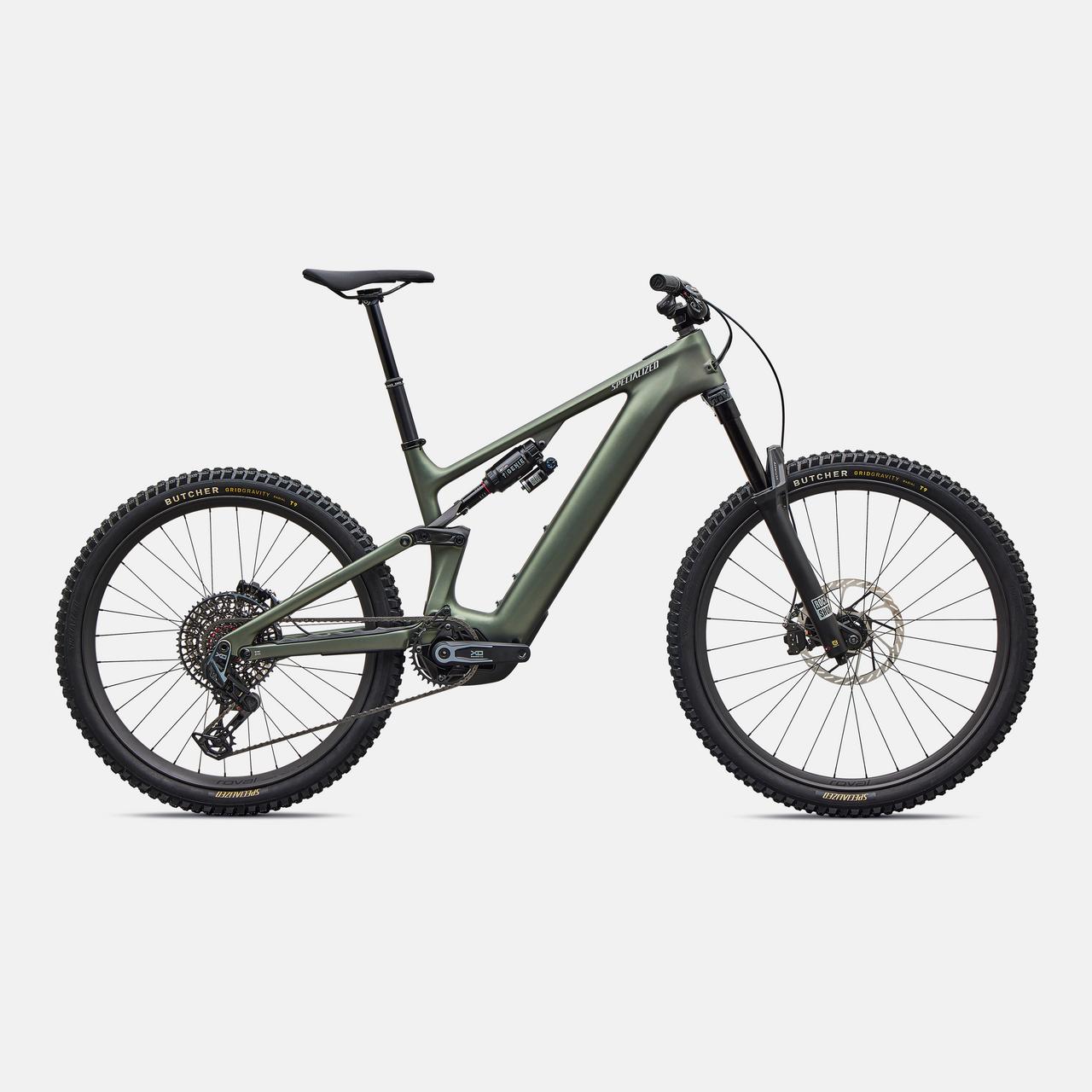

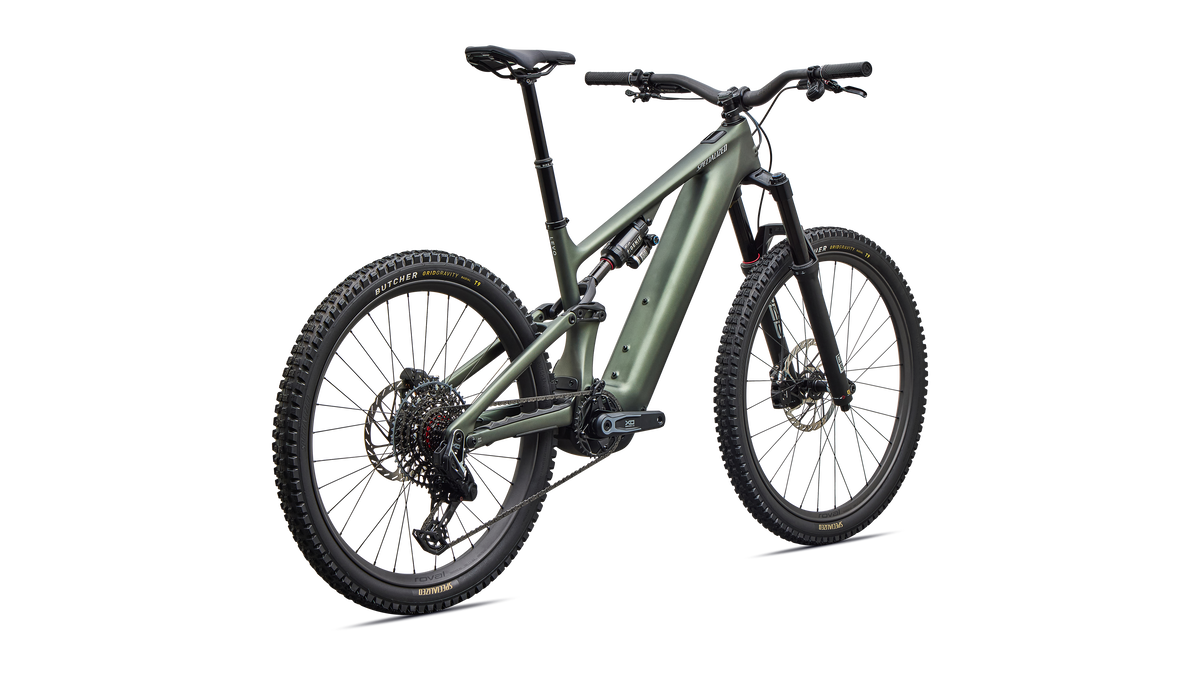

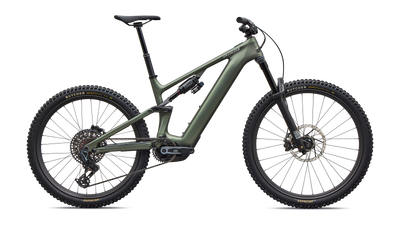

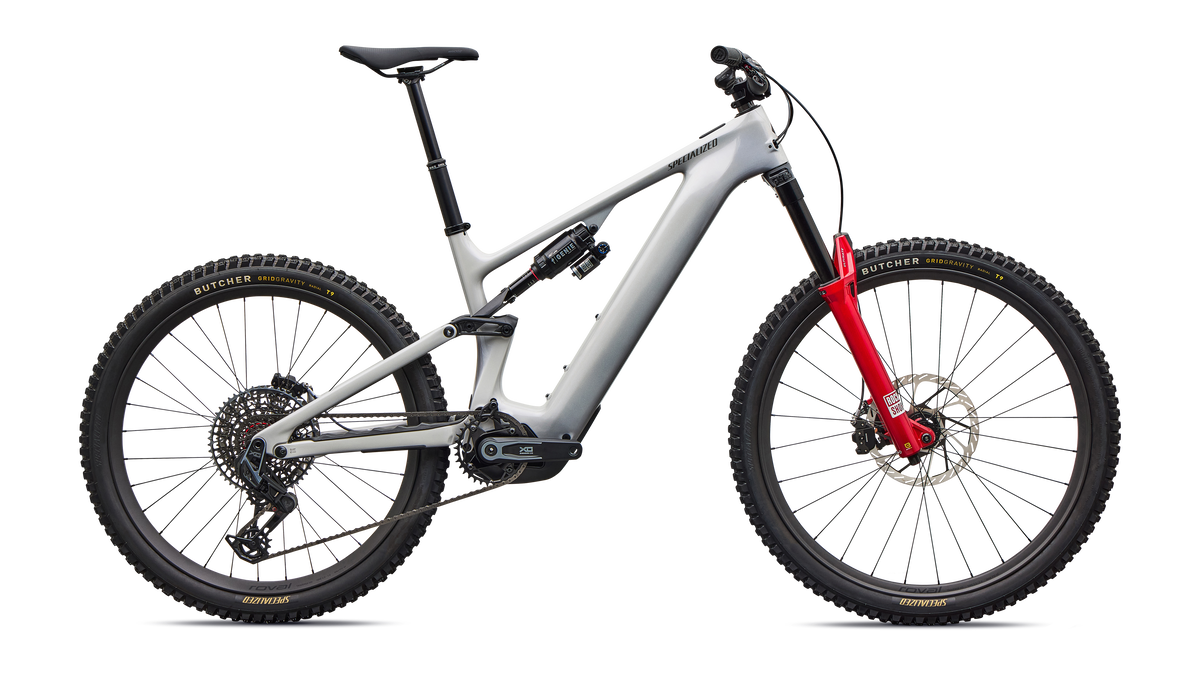

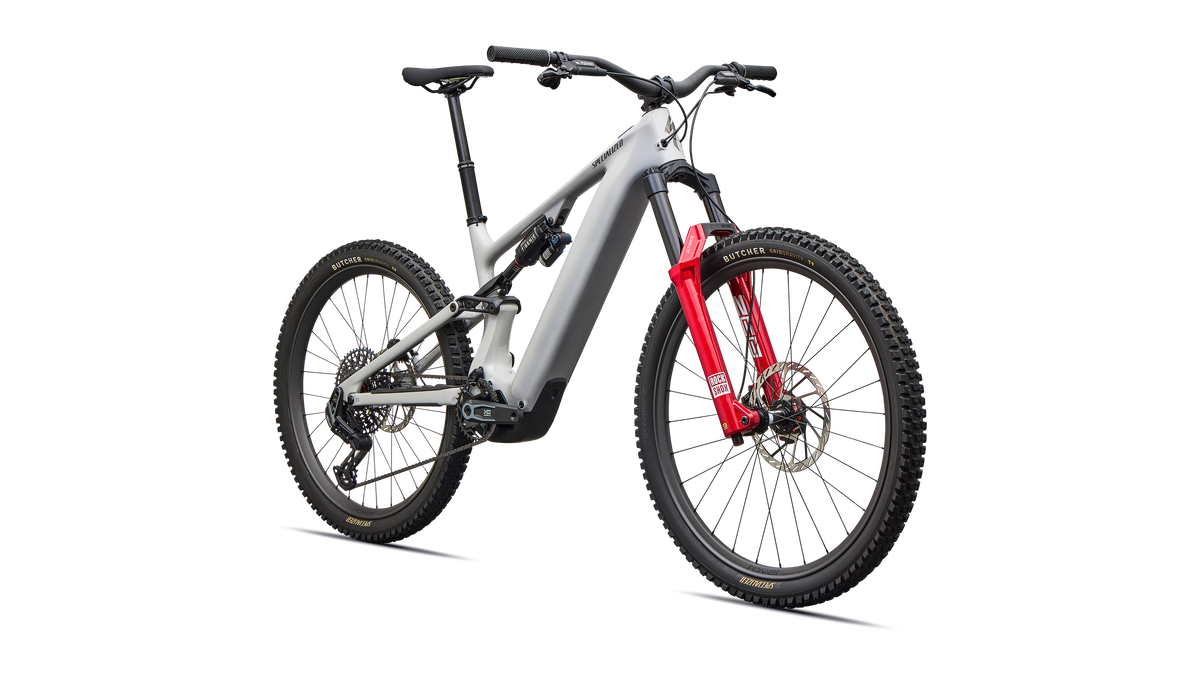

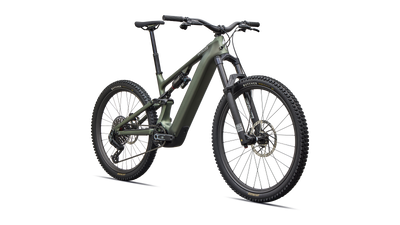

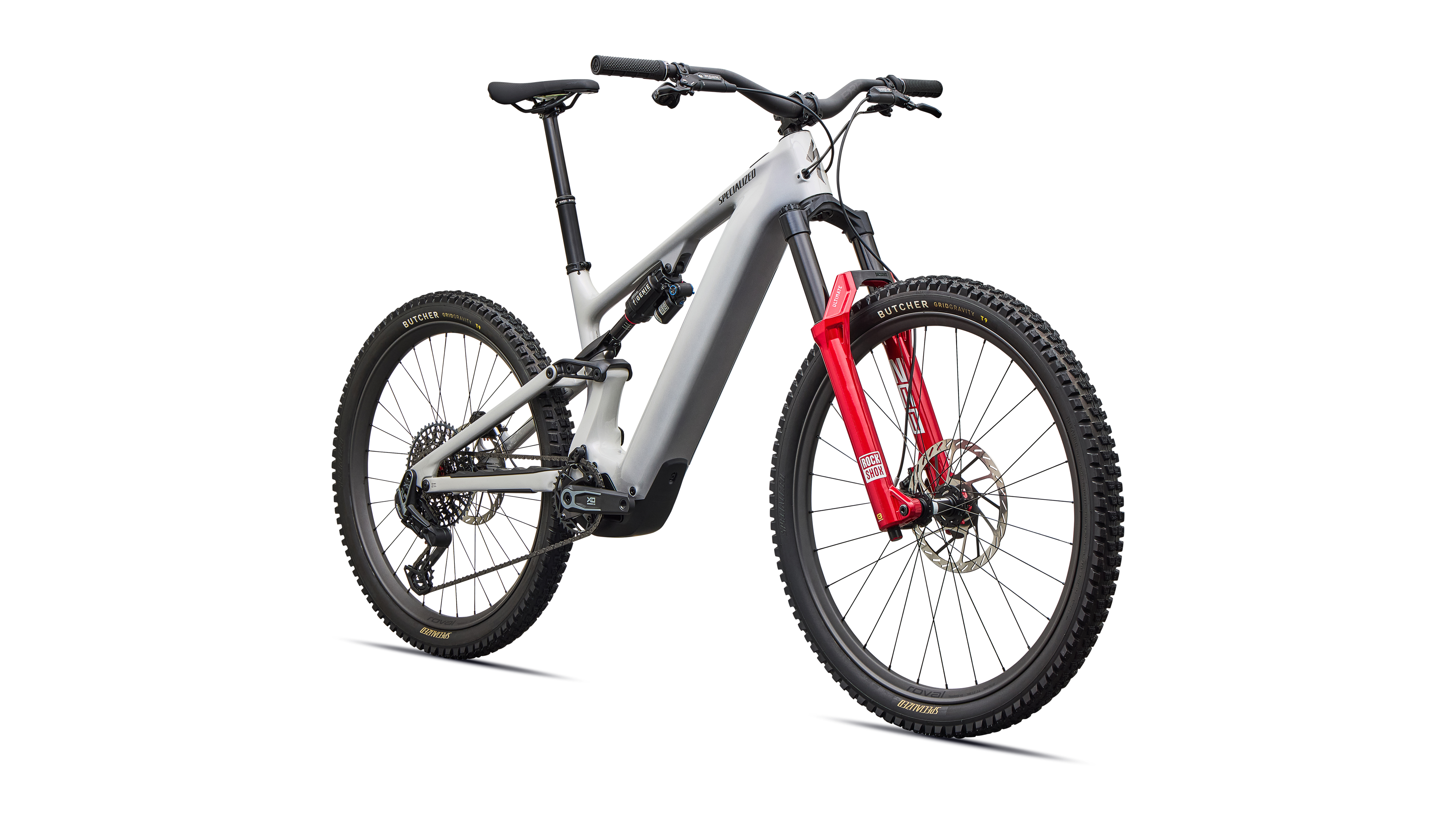

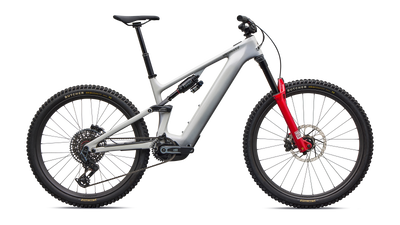

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural. Use - Full Power E-MTB Trail

E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame - FACT 11m Carbon, Geo Adj & SWAT Storage

Suspension - Front: 160mm RockShox ZEB Ultimate fork
Rear: 150mm RockShox Super Deluxe Ultimate shock w/ GENIE

Drivetrain - SRAM X0 Eagle AXS Transmission

Wheels - Roval Traverse HD carbon wheels w/ Butcher Grid Gravity Radial 2.4" tires







Frameset

Frame Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

Seat Binder Alloy, 38.6mm

SWAT Internal downtube storage

Suspension

Fork All New SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

Cockpit

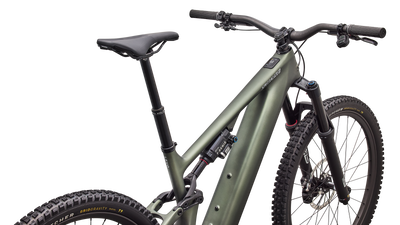

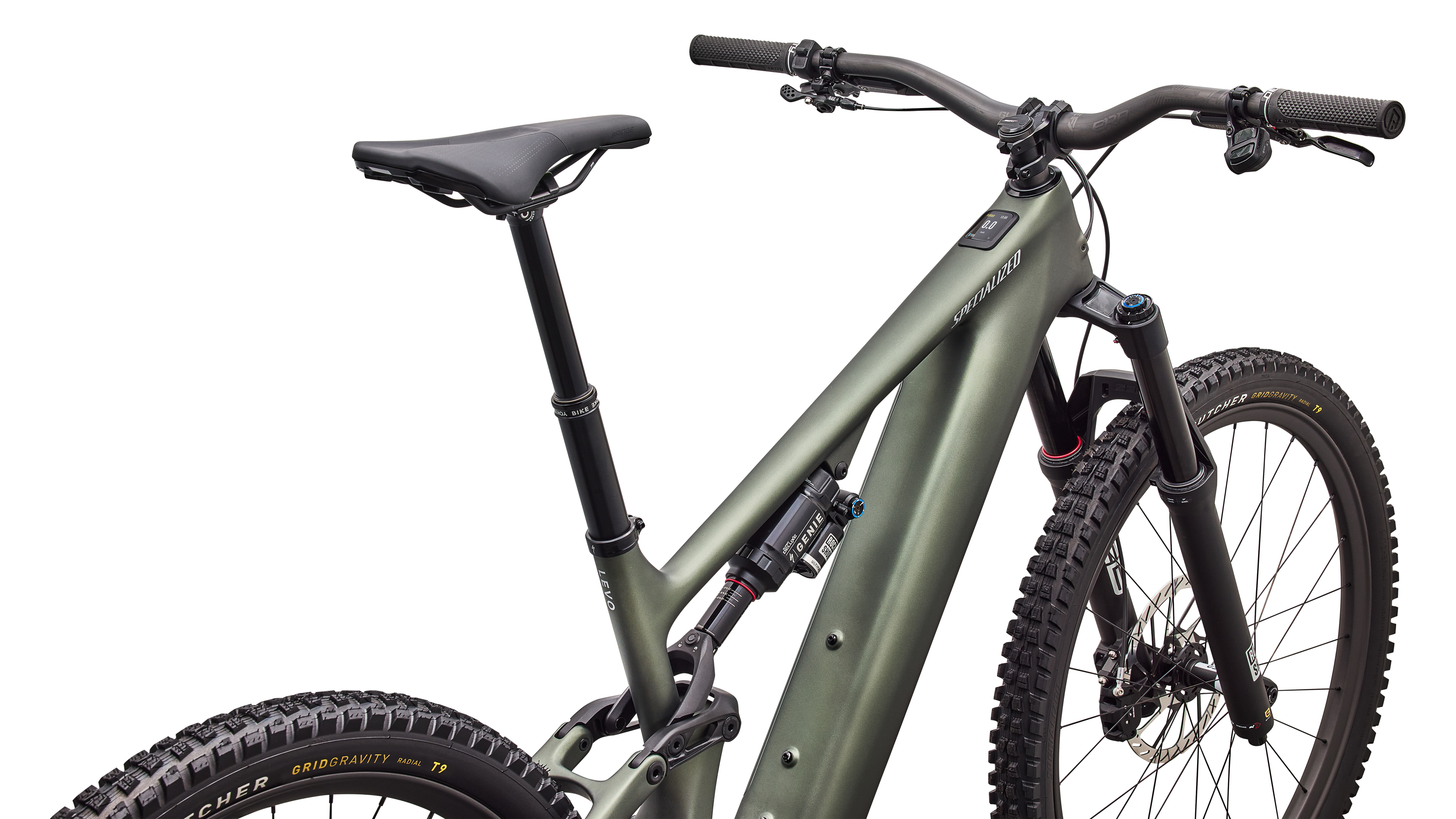

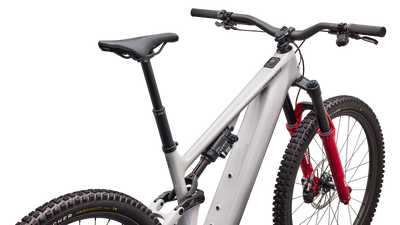

Seat Post Bike Yoke, Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm

Saddle Bridge Expert with MIMIC, Hollow Ti rails

Stem RaceFace, 35mm clamp, 40mm length

GripsDeity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

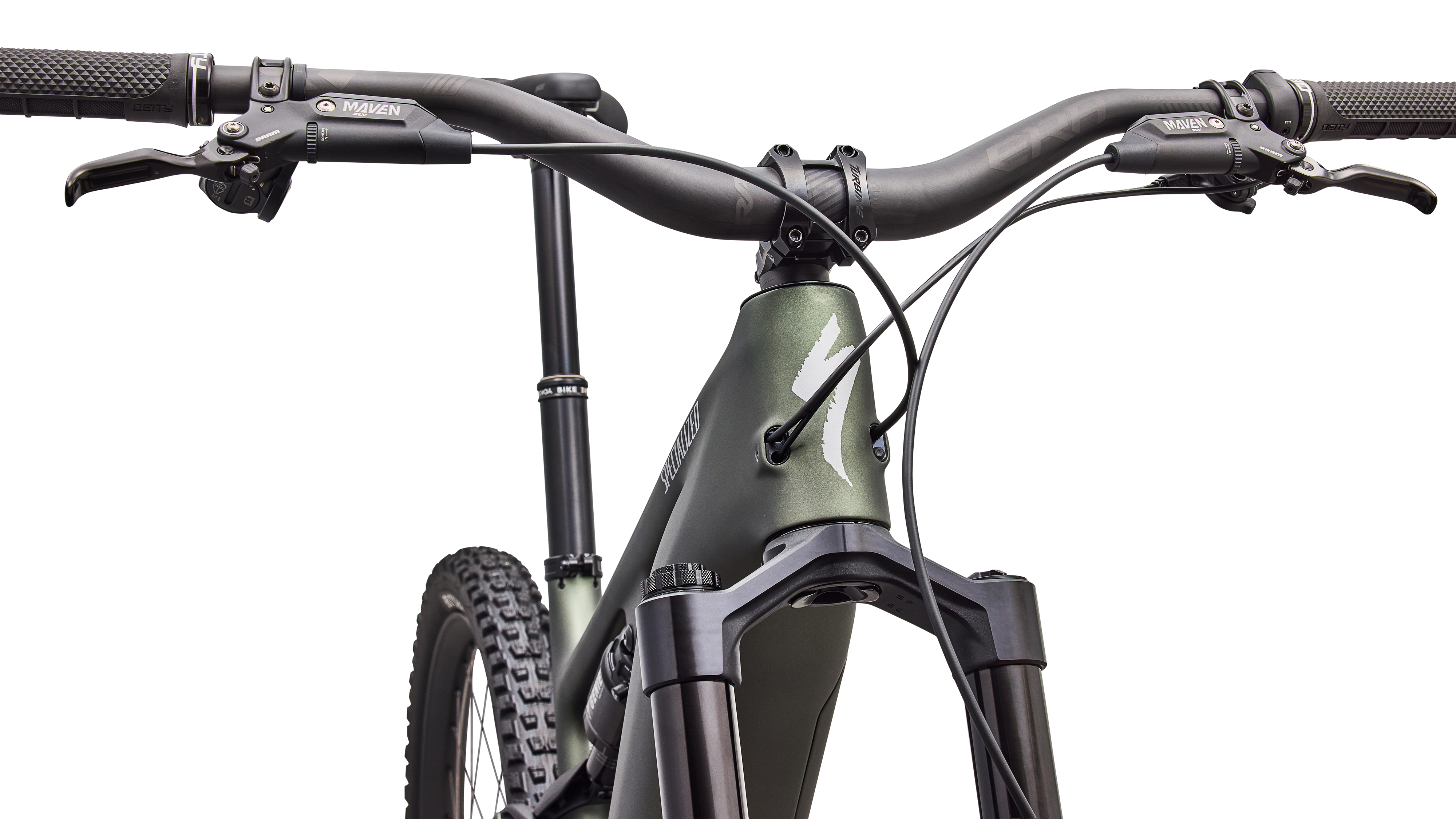

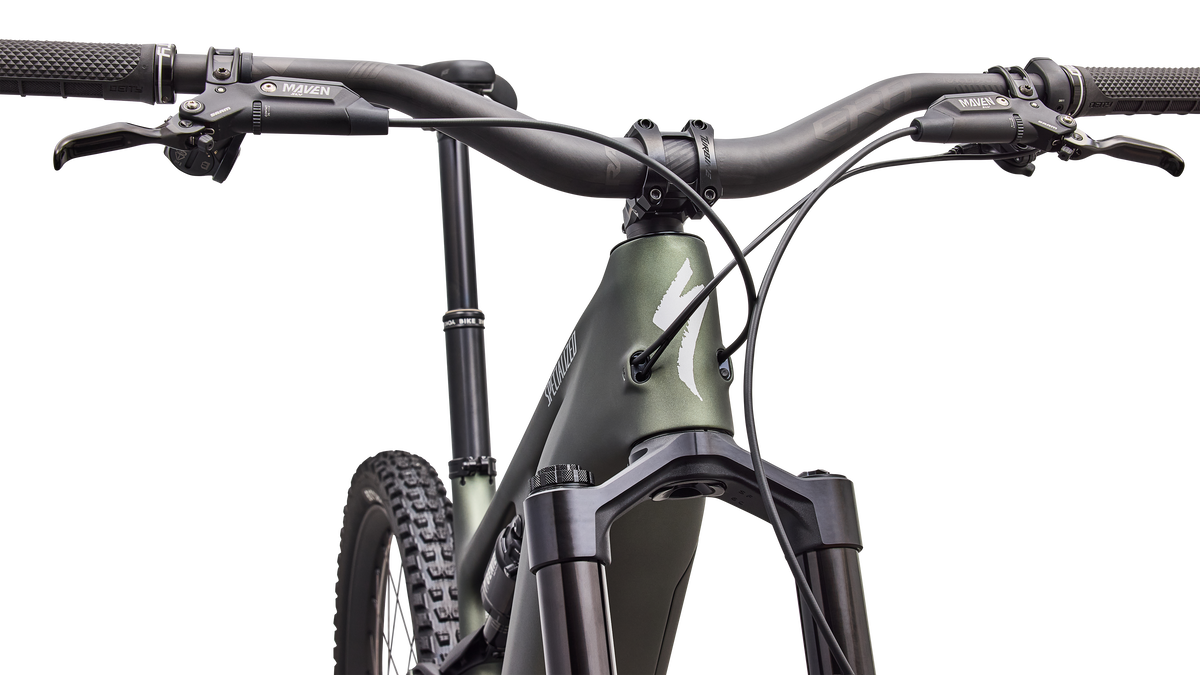

Handlebars RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise

Brakes

Front Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

Shift Levers SRAM AXS Pod Controller w/discrete clamp

Rear Derailleur SRAM X0 Eagle Transmission

Cassette SRAM XS 1295, 12 speed, 10-52

Crankset SRAM X0 Alloy crank, 155mm, ISIS interface

Chain SRAM X0 Eagle Transmission 12-Speed Flattop Chain

Chain Ring SRAM 34t T-Type chainring, 104 BCD, steel

eBike

Battery 840Wh battery

Charger Specialized 4amp charger

Motor Specialized 3.1 Motor, 105Nm torque, 810W power

UI Remote Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Wheels & Tyres

Front Wheel Traverse HD Carbon 29" rim, DT Swiss 350, 30mm inner width, 28H, 15x110mm

Rear Wheel Traverse HD Carbon 27.5" rim, DT Swiss 350 hub, 30mm inner width, 32H, 12x148mm

Front Tire Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4

Rear Tire Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4

Tubes Standard, Presta Valve

Accessories
